Product Details

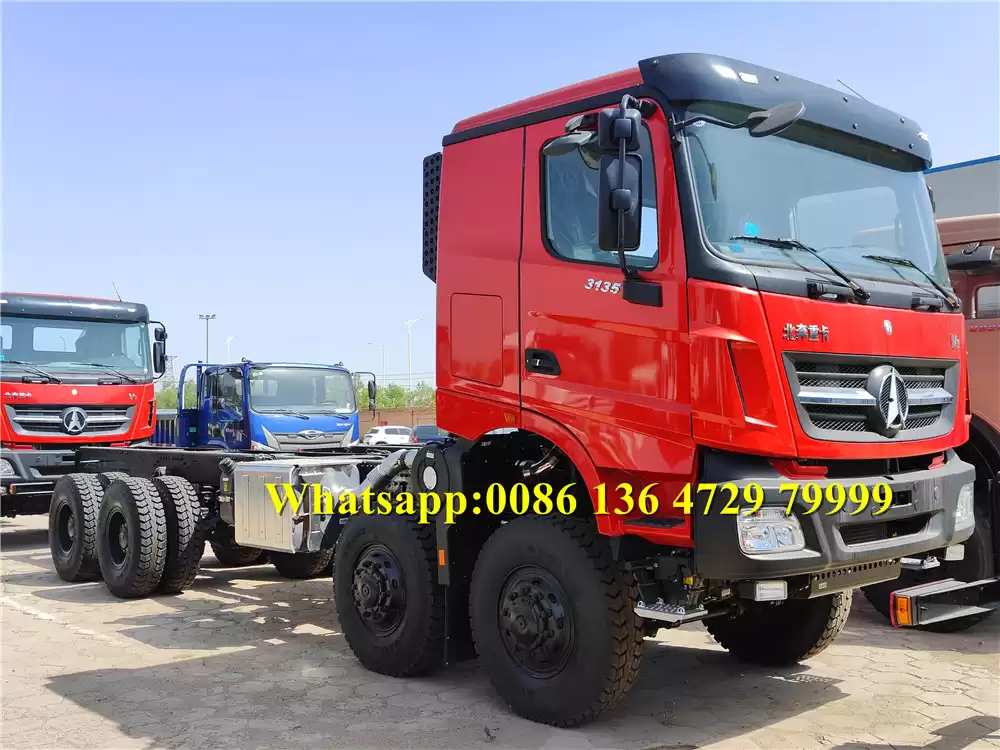

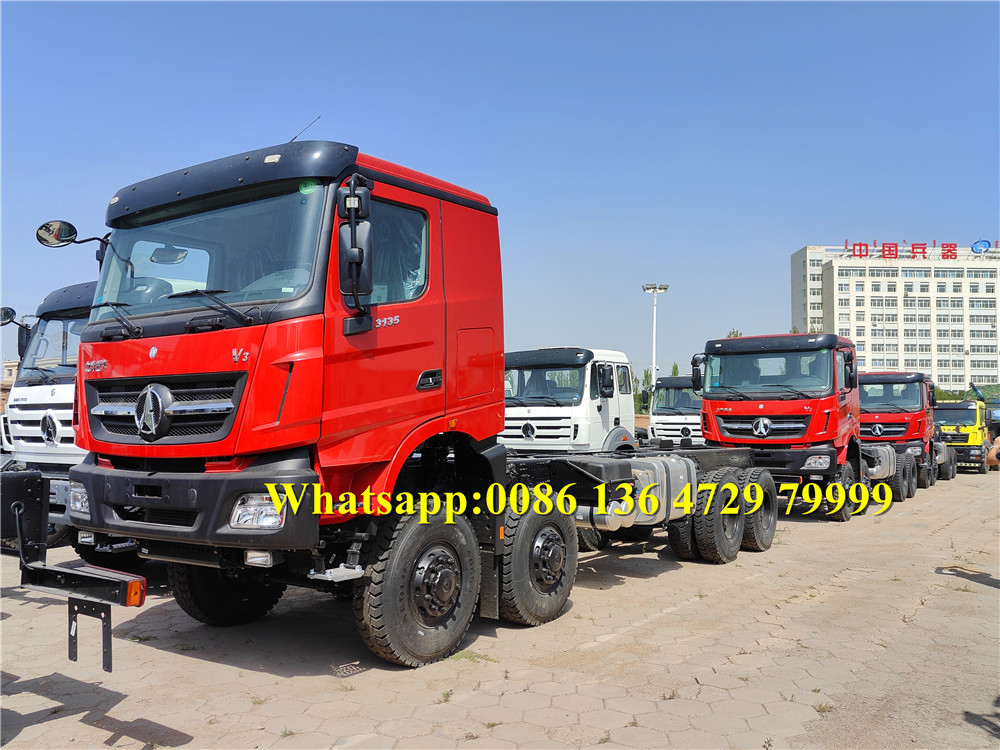

Beiben 8*8 drive truck chassis
Applications:
The Beiben 8*8 drive off road truck chassis, is also named as beiben 8*8 drive V3 cabin truck chassis, beiben 8*8 drive V3 cargo truck chassis, beiben 8*8 drive V3 long cargo truck. It is special purpose trucks that designed for heavy duty in forest , desert, and other extremely tough road. In foreign countries, congo customer prefer beiben 8*8 drive off road truck chassis.
Beiben (North Benz) 8*8 drive truck is a heavy-duty off-road vehicle designed for extreme conditions and rough terrains. It is used mainly in industries such as mining, construction, oil and gas, and military applications. The Beiben 3135 vehicle has a maximum payload capacity of up to 50 tons and is equipped with a powerful diesel engine that provides a maximum output of 350 horsepower. The truck has a robust chassis and suspension system that allows it to carry heavy loads even in rough terrain. It also features an advanced braking system, which includes air brakes and exhaust brakes, that ensures maximum safety while driving.
The Beiben 8*8 drive truck is also equipped with a comfortable and spacious cabin that offers a pleasant driving experience for the driver. The cabin has air conditioning, seats with integrated seat belts and airbags, and a modern instrument panel that provides real-time data on the vehicle's performance.
Overall, the Beiben 8*8 drive truck is an excellent choice for heavy-duty off-road applications that require high performance, durability, and reliability.
Key Features:
---- BEIBEN V3 cabin, Benz actros technology.
---- 8x8 drive off road system, military assurance.
----Germany mercedes benz axle technology, with wheel reducer.
----Weichai 350 hp diesel engine, 300,000 kilometers after sale service.
---- Congo customer first choice, 100% suitable for hot weather and rain forest
Specifications:
|
Required Technical Specification 参数
|
|
Basic parameter
基础参数
|
Model
型号
|
3135PZ/8×8
|
|
Length×width×height(mm)
长×宽×高
|
11526×2500×3385
|
|
Wheel-base(mm)
轴距
|
1900+3800+1450
|
|
Curb
weight(kg) 底盘整备质量
|
12400
|
|
Engine
parameter
发动机参数
|
Model
(six cylinder in line) 型号（六缸）
|
WP10.350E32
|
|
Max.
Power (HP/rpm) 最大马力
|
350
|
|
Max.
Torque(Nm/rpm) 最大扭矩
|
1600/1400～1600
|
|
Displacement(lit)
排量
|
9.726
L
|
|
Fuel
tank capacity 油箱容量
|
400L
Iron oil tanker 400L铁
|
|
Transmission
system
传动系统
|
Clutch 离合器
|
430
Single disc, dry type, friction clutch；
430单片，干式摩擦离合器，液压辅助可调式；
|
|
Gearbox 变速箱
|
Mechanical,
9JS150A
|
|
Steering
system
转向系统
|
Steering gear 转向机
|
8098 Circulating ball steering
gear, hydraulic booster；循环球式，液压助力；
|
|
Brake
system
制动系统
|
Service brake 行车制动器
|
Double circulation air brake
system equipped；
双回路气压制动；
|
|
Parking brake 驻车制动器
|
Energy storage spring brake 弹簧储能制动；
|
|
Assisted
brake 辅助制动
|
Engine
exhaust brake 发动机排气制动；
|
|
Chassis
parameter
底盘参数
|
Frame
车架
|
Variable
width and section 317×70×8.5+7+8.5 mm；
不等宽，变截面 317×70×8.5+7+8.5
mm；
|
|
Front
axle 前桥
|
7.5 T, no-driving steering axle, drum
brake；
7.5吨驱动转向桥，鼓式制动；
|
|
Middle
& Rear axle 中后桥
|
13T,
Double-shoe pneumatic brake, double reduction driving axle, differential
lock, speed ratio is 5.263；
双蹄片式气压制动，双减速驱动桥，差速锁，速比5.263
|
|
Front
and rear suspension 前悬挂/后悬挂
|
Front/rear:
Leaf spring, 13/13 pieces；
前/后板簧：13/13片簧；
|
|
Tire 轮胎
|
12.00R24
|
|
Cab
驾驶室
|

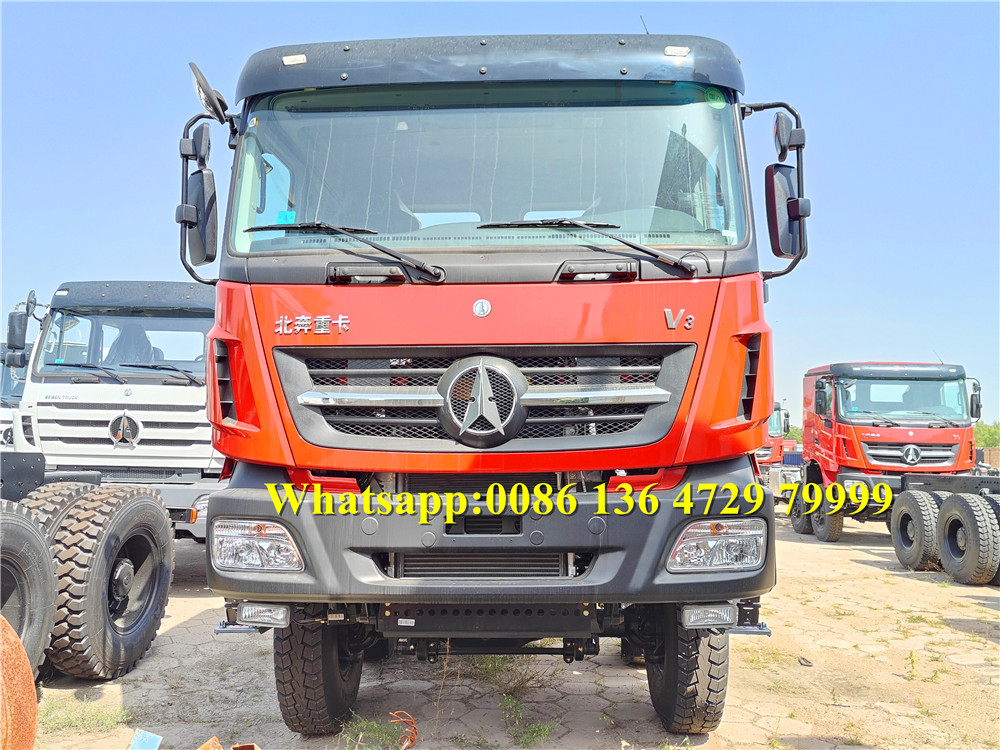

V3 Long Cabin/ Flat roof/Left drive
Exterior
trimming:
Metal
bumper, three steps, outer sun visor, sun roof (Manual), front under-ride
bumper, rear view mirror (Manual).
NG80B长驾平顶/左驾带双卧
外饰：金属保险杠、三步软车梯、外遮阳板、手动天窗、手动调节后视镜。
|
|
Interior
trimming:
Air
suspension seat, Single bunk with sleeper, cooling and heating air
conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with
MP3), digital instrument
内饰：气悬浮主座椅、单卧铺、冷暖空调、可调方向盘、手动门锁、收放机（带MP3功能）、数字仪表。
|
|
Offer
报价
|
1.工厂自提含税价格：以具体核算为准。
2.支付方式：30%现金定金，70%现金尾款，款到发车。
3.交货期：收到30%定金后，正常交货期为45天交付货物。交货期需要在签订合同前再次确认。
4.报价有效期：1个月 。有效期过后，需要重新报价。
5.该车辆不含质保，如需质保，需要另行商议。
|

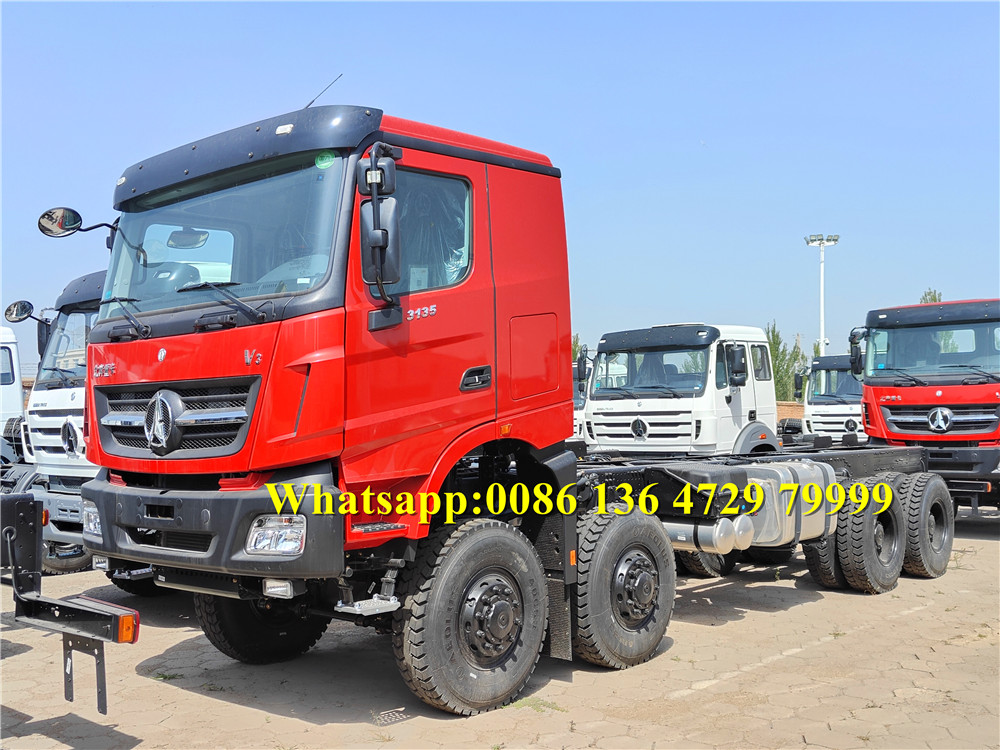

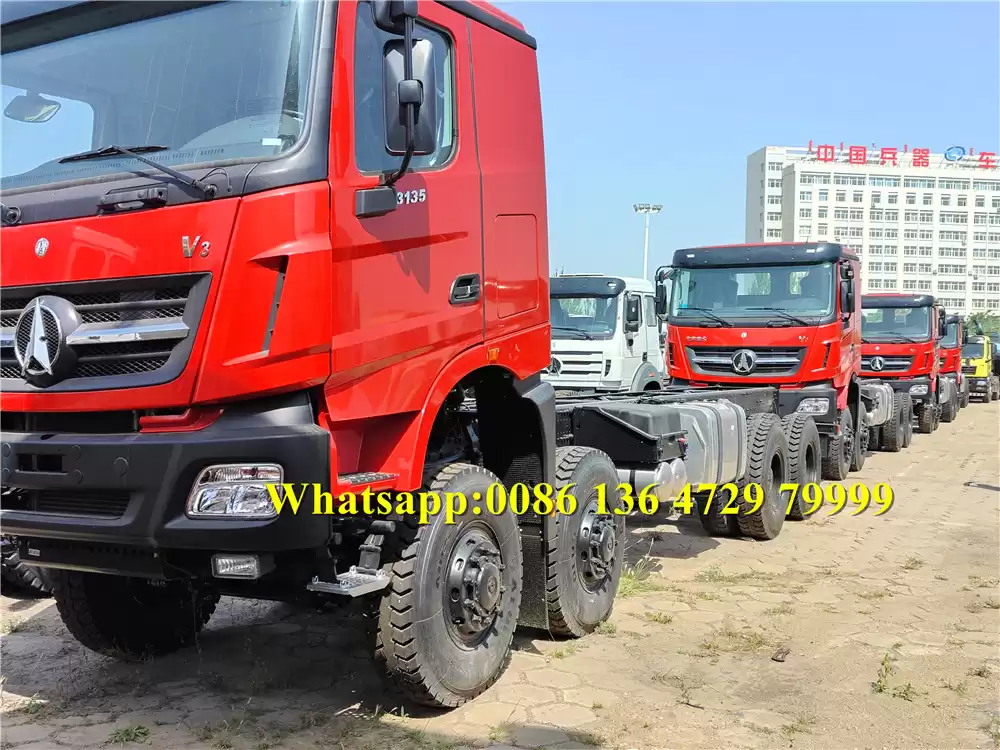

China beiben 8*8 drive off road truck , all wheel drive system

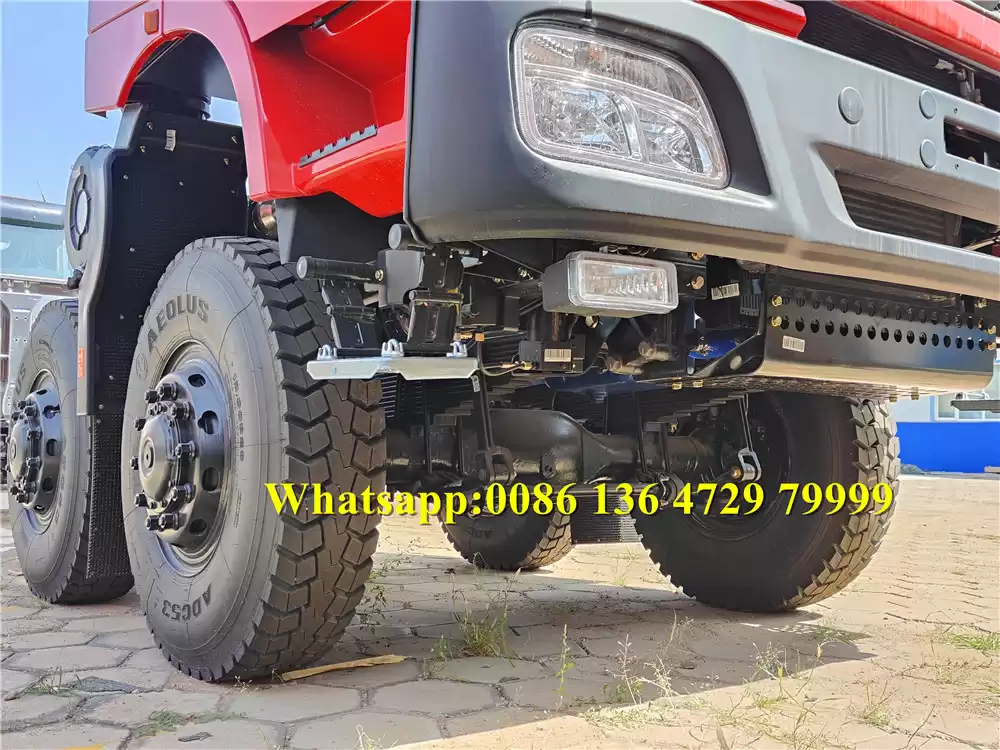

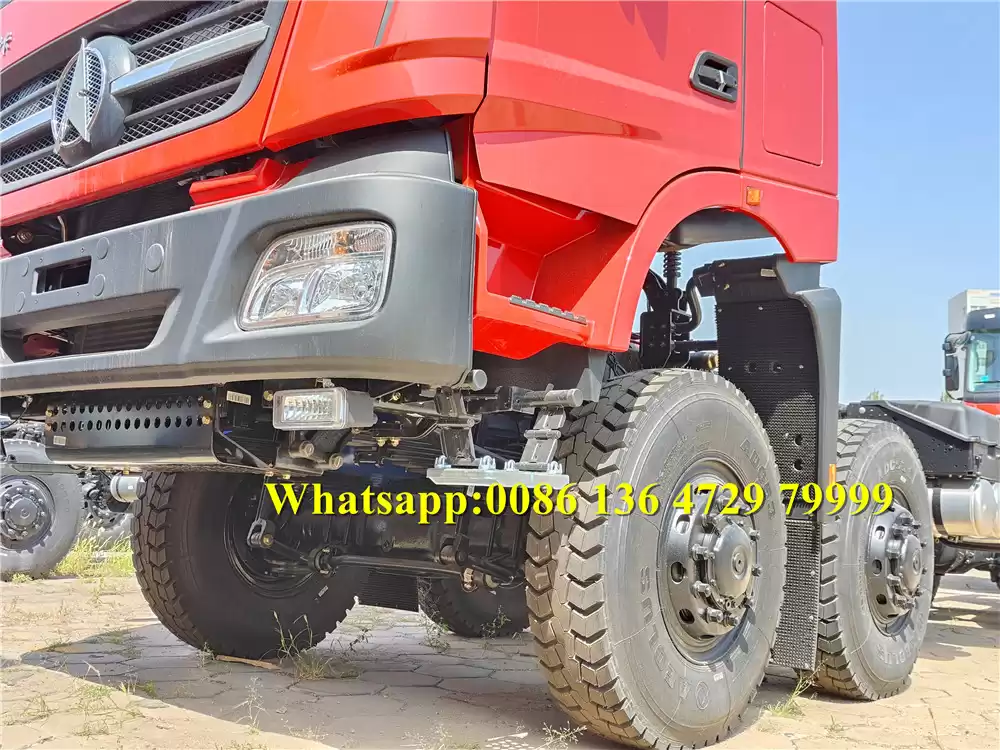

Super reliable front axle with germany mercedes benz technology, military quality assurance.
