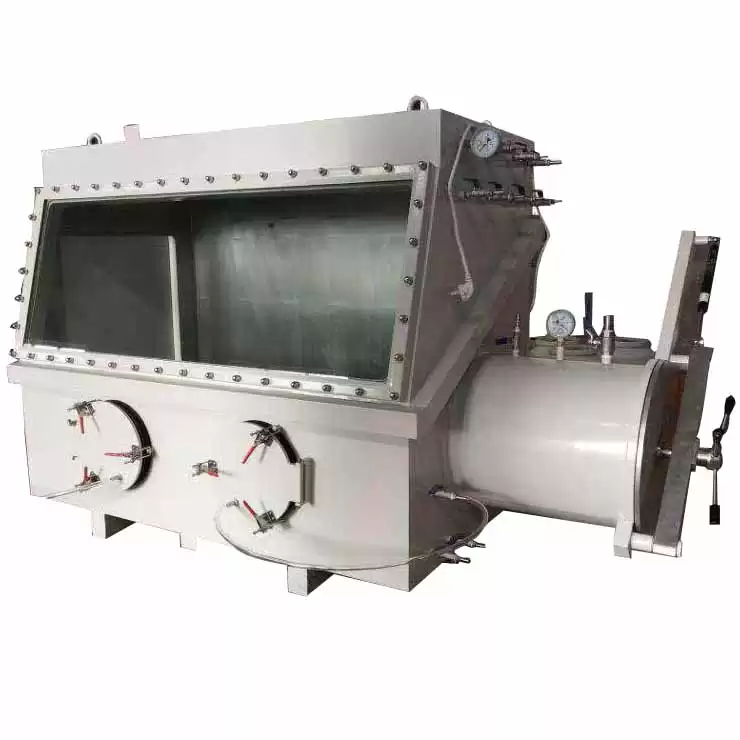

Benchtop Stainless Steel Vacuum Glove Box With Airlock And Vacuum Flange & Gauge
It is mainly composed of main box, transit room and base. If user has special requirement, it can also be customized and designed according to customer needs.There are 2 or 3 glove interfaces. In front of the main box, user can clearly view the inner situation. There is one vacuum ball valve above the main box body. It can be used according to user needs. The ball valve can be connected with water faucet when needing water or ventilation. Light bulb can be also installed. Transit room means the transition between the main box and outdoor, composed by two sealed doors, two vacuum ball valves and one room. Two doors isolate main box from connecting with the outdoor, making material putting in and taking out for lab easily.
|
Parameters of Stainless Steel Vacuum Glove Box
|
|
No.
|
Model No.
|
Outline Dimension
(mm)
|
Box Size
(mm)
|
Transition Cabinet
(mm)
|
Glove Port
(mm)
|
Vacuum Degree
|
|
1
|
GBV-1
|
1030*570*530
|
600*500*500
|
Ф200*280
|
Ф145
|
0-0.1Mpa
Keep vacuum for
more than 12 hours
|
|
2
|
GBV-2
|
1295*715*675
|
800*650*650
|
Ф273*350
|
Ф145
|
|
3
|
GBV-3
|
1755*776*1010
|
1200*700*950
|
Ф350*400
|
Ф196
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
