1. Snapshot

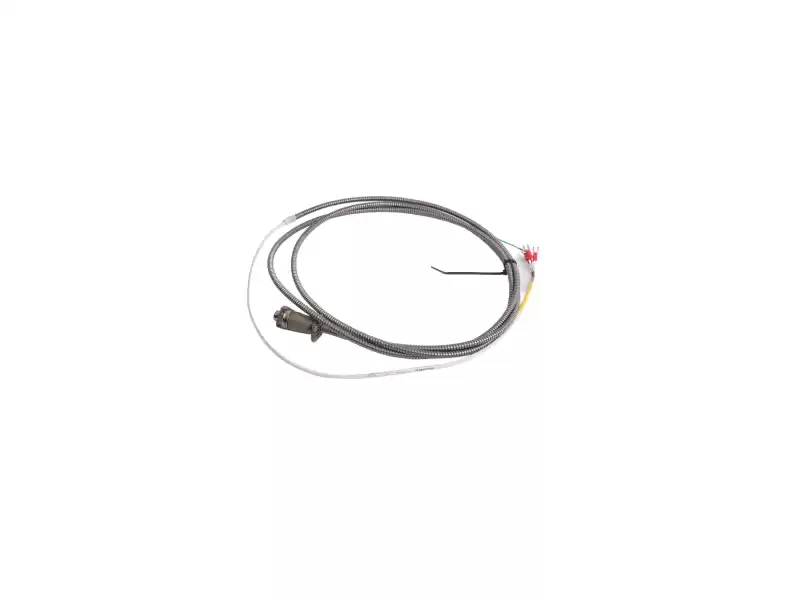

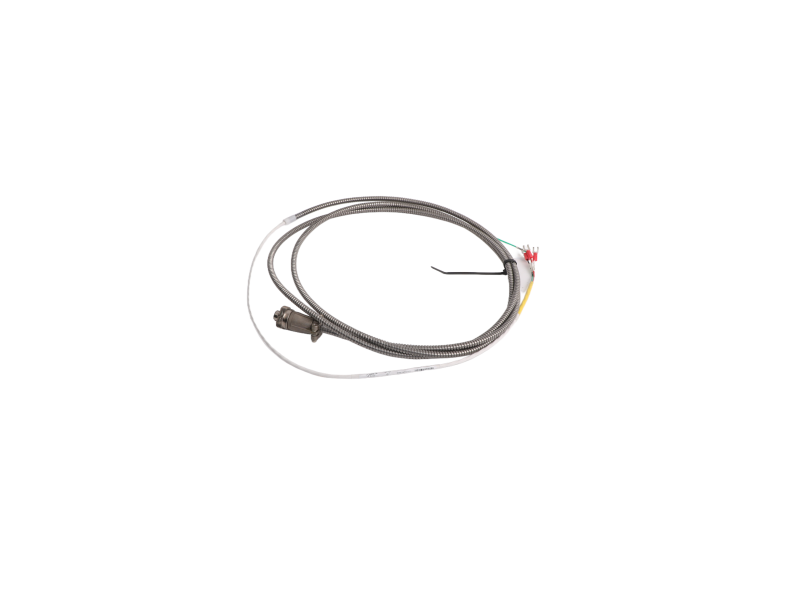

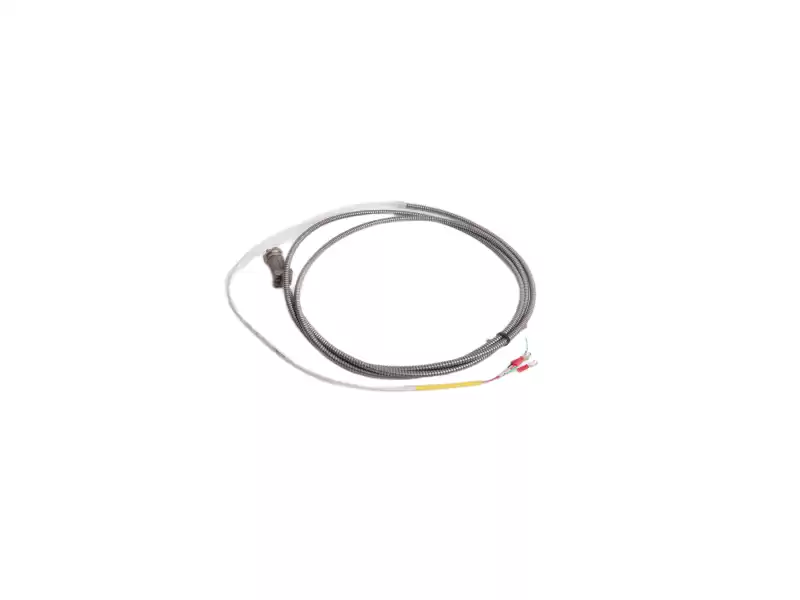

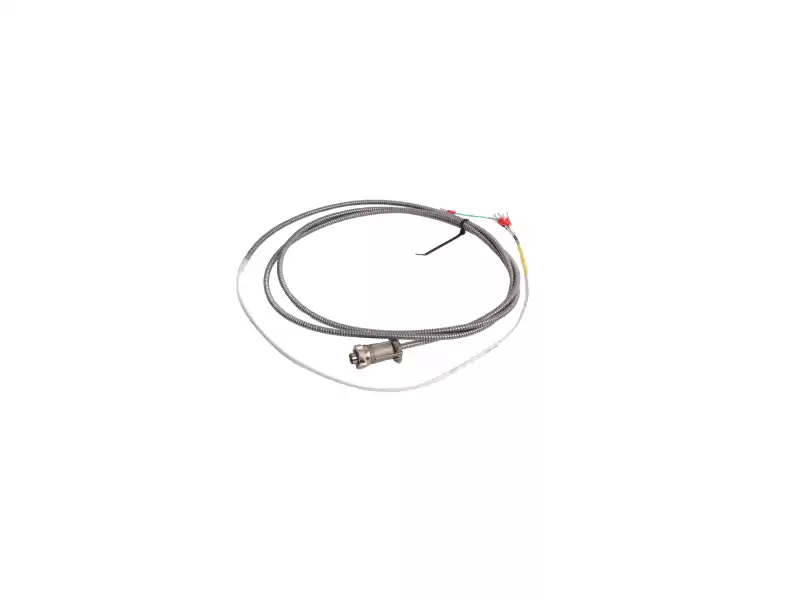

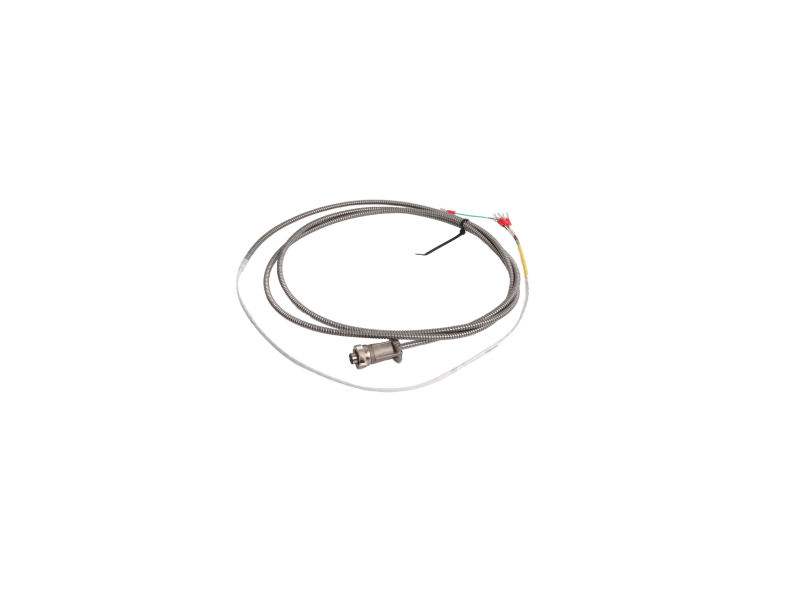

The 16710-10 is the 10-conductor, heavy-duty “purple armor” cable that ties triple-vibration or dual-thrust + temperature probes to one 3500/3300 front-end. Stainless interlock + FEP jacket = oil-proof, crush-proof, sunlight-proof for 25 years offshore or onshore.
2. Mechanical Cheat-Sheet
|
Feature
|
Value
|
Notes
|
|
Conductors
|
10 × 22 AWG stranded tinned Cu
|
5 pair + 1 drain
|
|
Armor
|
0.28″ OD 304 SS interlocked
|
-65 °C … +260 °C
|
|
Jacket
|
Purple Teflon FEP
|
flame-rated IEEE-383, UV-stable
|
|
Min. bend
|
5 × OD (≈ 1.4 in / 36 mm)
|
armored yet field-flexible
|
|
Std. lengths
|
3 ft – 70 ft (1 m – 21 m)
|
cut-to-length in 24 h
|
3. Electrical Performance
|
Parameter
|
16710-10
|
Notes
|
|
Capacitance
|
24 pF/ft (79 pF/m) pair-to-pair
|
keeps 7.87 mV/µm scale error < 0.3 %
|
|
Impedance
|
100 ±10 Ω @ 1 MHz
|
matches 3300 XL driver
|
|
Shield
|
foil + 90 % braid
|
> 60 dB @ 10 MHz
|
|
Working voltage
|
300 Vrms
|
UL 13 PLTC, oil-res I & II
|
4. Typical Wiring Map (one cable, three probes)
|
Pair
|
Color
|
Function
|
|
1
|
Black-White
|
X proximity probe
|
|
2
|
Red-Green
|
Y proximity probe
|
|
3
|
Orange-Blue
|
Z proximity probe
|
|
4
|
Brown-Yellow
|
Key-phasor
|
|
5
|
Violet-Gray
|
RTD or thrust
|
5. 30-Second Compatibility Check
✓ 3500/42M, 3500/44M, 3500/45
✓ 3300 XL 5 mm, 8 mm, 11 mm probes
✓ 3300 16 mm HTPS (use 16710-16 reducer)
✗ 7200 14 mm (needs 16925-XX)
6. One-Line Ordering
Sales Manager May
ab@mooreplc.com | +86-18106909650 (WhatsApp) | WeChat: dcsfcs
Send: “16710-10 + length + destination” – quote in 15 min.
7. Bottom Line
When you need one cable to carry vibration, thrust and temperature from the bearing to the 3500 rack, the 16710-10 is the purple lifeline. Keep a spare on the shelf—turbines don’t wait for shipping delays.
