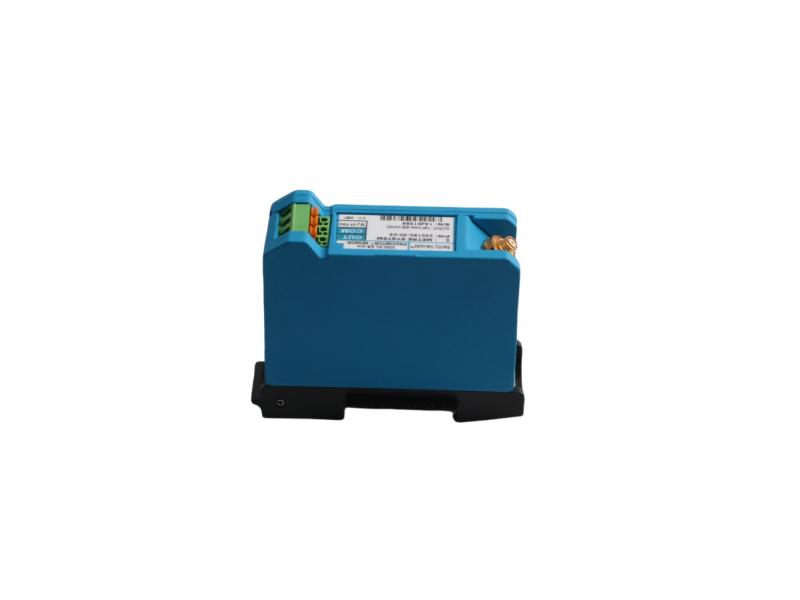

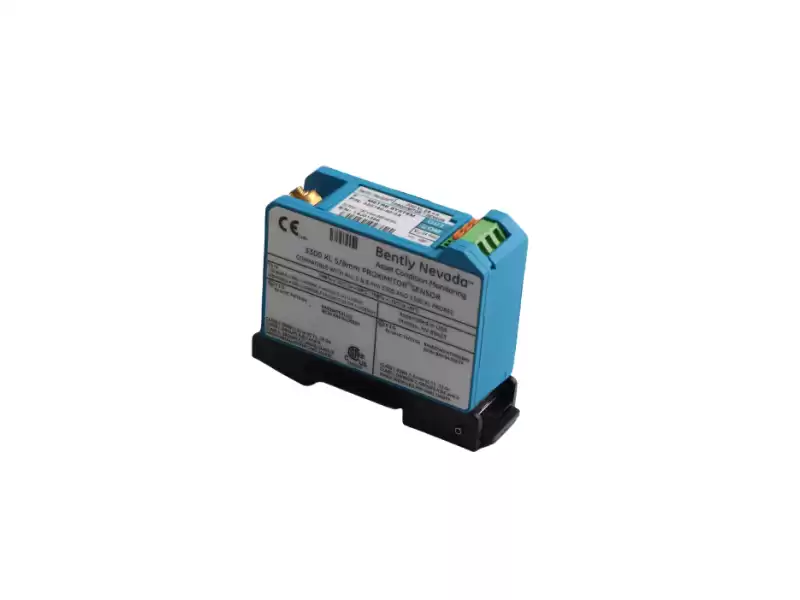

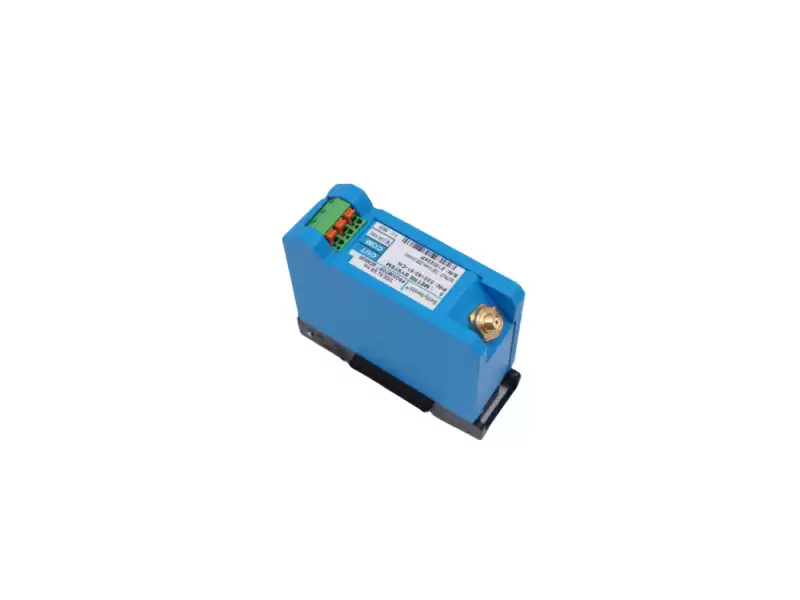

Technical Brief: Bently Nevada 330180-50-05 3300 XL 8 mm Proximitor Sensor
Product Identity
330180-50-05 is the 5-meter-system 3300 XL Proximitor Sensor that converts eddy-current probe signals into calibrated vibration, displacement, or speed data for gas/steam turbines, compressors, and pumps.
Key Specifications
• System length: 5 m (probe + extension cable + proximitor)
• Linear range: 2 mm (80 mil)
• Sensitivity: 7.87 V/mm (200 mV/mil)
• Frequency response: 0 – 10 kHz
• Power: –17.5 Vdc to –26 Vdc, 12 mA typical
• Operating temperature: –40 °C … +70 °C proximitor; –52 °C … +177 °C probe & cable (standard)
• Mounting: DIN-rail or 4-hole panel mount with built-in isolation
• Certifications: CE, UL, API 670 4th Ed. compliant
Core Benefits
• Full interchangeability—no bench calibration required between 3300 XL probes, cables, and proximitors
• RFI/EMI immunity eliminates need for shielded conduit
• SpringLoc terminals for vibration-resistant field wiring
Typical Applications
• Steam-turbine bearing vibration monitoring
• Compressor shaft displacement protection
• Keyphasor/speed reference on gas generators
Related Bently Nevada Modules & Cables (same-day stock)
Probe: 330103-00-05-10-02-05
Extension cable: 330130-040-00-00 (4 m) or 330130-050-00-00 (5 m)
Monitor: 3500/42M vibration module
Speed module: 3500/50M for TTL speed signals
Power supply: 149992-01 24 Vdc DIN-rail unit
All items are factory-sealed and ready for immediate dispatch from PLC Autocontroller.
