21000-28-10-20-102-01-02 | Proximity Probe Housing Assemblies
Sales Manager May | Email: ab@mooreplc.com | Phone: +8618106909650 (WhatsApp) | WeChat: dcsfcs
Product Overview

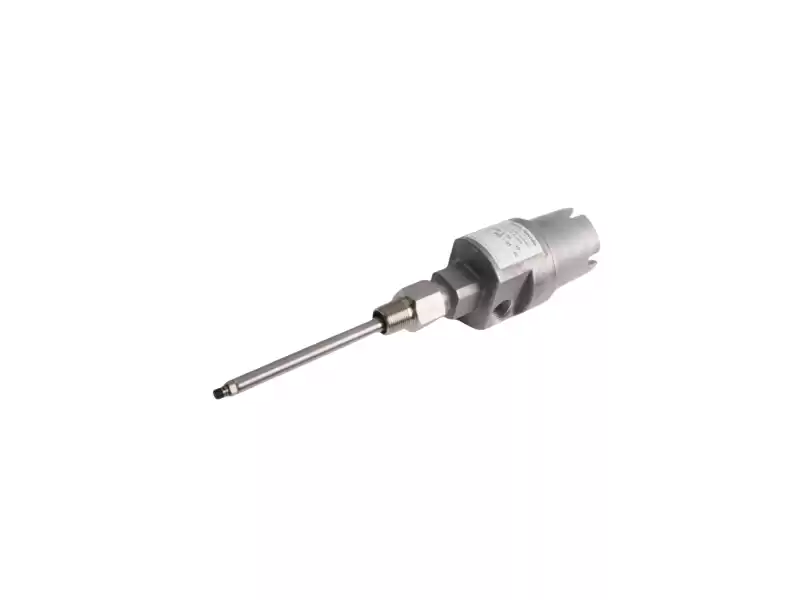

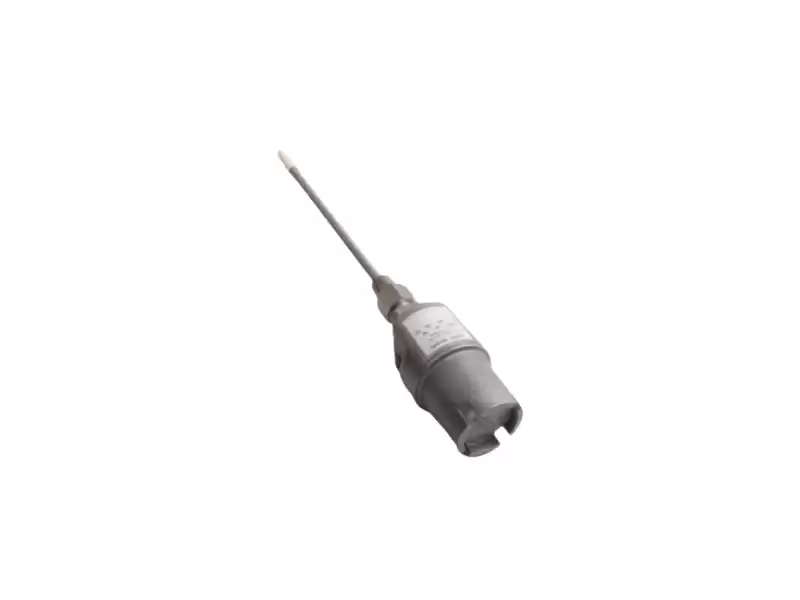

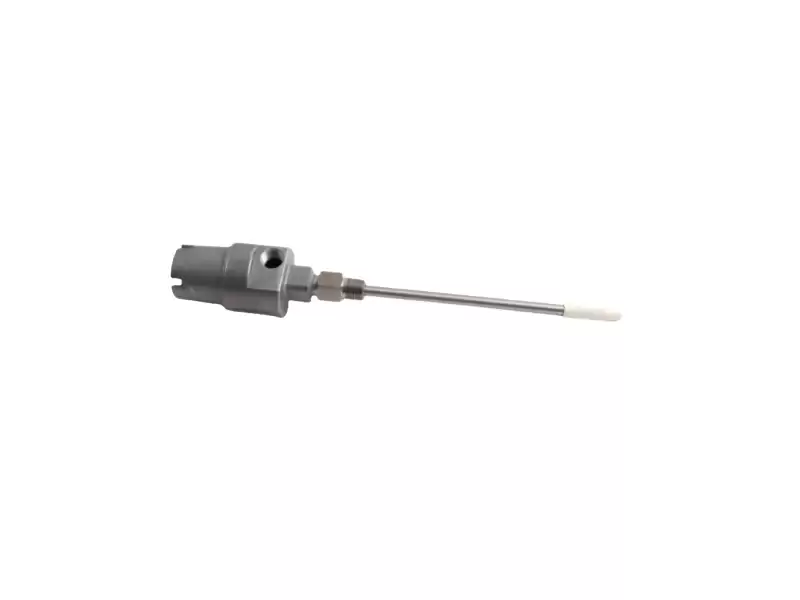

The 21000‑series housing assembly is engineered to accommodate the 3300 XL 8 mm proximity probe, providing a secure and certified mechanical enclosure that ensures stable and safe installation of vibration/position monitoring probes on rotating machinery. This model — with suffix code “28‑10‑20‑102‑01‑02” — includes following configuration features:
v 3300 XL 8 mm probe with hazardous‑area approvals
v 1.0 m (39 in) armored probe cable length
v 20 mm standoff adapter option (for required clearance)
v Explosion‑proof fitting plus plug (3/4‑14 NPT)
This assembly is ideal for industries such as oil & gas, petrochemical, power generation, and heavy machinery — wherever reliable condition monitoring under hazardous conditions is required.
Key Specifications
|
Electrical
|
Value
|
|
Model:
|
05704-A-0123
|
|
Compatible probe
|
3300 XL 8 mm proximity probe
|
|
Probe cable length:
|
1.0 m (39 inches)
|
|
Bracket fit:
|
20 mm (optional)
|
|
Installation thread/joint:
|
3/4-14 NPT explosion-proof joint + plug
|
|
Shell material:
|
Aluminum alloy main body + stainless steel sheath (corrosion-resistant, high mechanical strength)
|
|
Environmental/Safety Certification:
|
CSA/ATEX/IECEx (applicable to hazardous areas)Housing grade/standard: CSA Type 4, conforming to industrial standards (such as API 670)
|
PLC AutoController recommendation
Ø High safety and hazardous area certification
The casing complies with strict safety certifications such as CSA, ATEX, and IECEx, and can operate safely in potentially explosive environments.
Ø Robust and durable industrial design
The main body is made of aluminum alloy and equipped with a stainless steel sheath, which is resistant to corrosion and mechanical stress, making it suitable for heavy industrial applications such as petrochemical and power.
Ø Strong compatibility and easy to integrate
Perfectly compatible with 3300 XL 8 mm proximity probes and 3300/3500 series monitoring systems, simplifying procurement and installation.
Ø Flexible configuration
The cable length, bracket fit and connector type can be selected to meet the installation gap requirements of different cabinets/machinery.
Ø Reliability and service assurance
The21000 series has been proven reliable on-site over many years. PLC AutoController offers genuine product guarantee, professional support and fast delivery.
Typical applications
Rotating machinery monitoring of turbines, compressors, pumps, generators and gearboxes
3300/3500 series vibration monitoring system
Installation in hazardous areas: petrochemical plants, oil refineries, offshore platforms
Predictive maintenance and shaft displacement monitoring
All items are factory-new, sealed, and supported by PLC Autocontroller with same-day quotation and worldwide overnight delivery.
