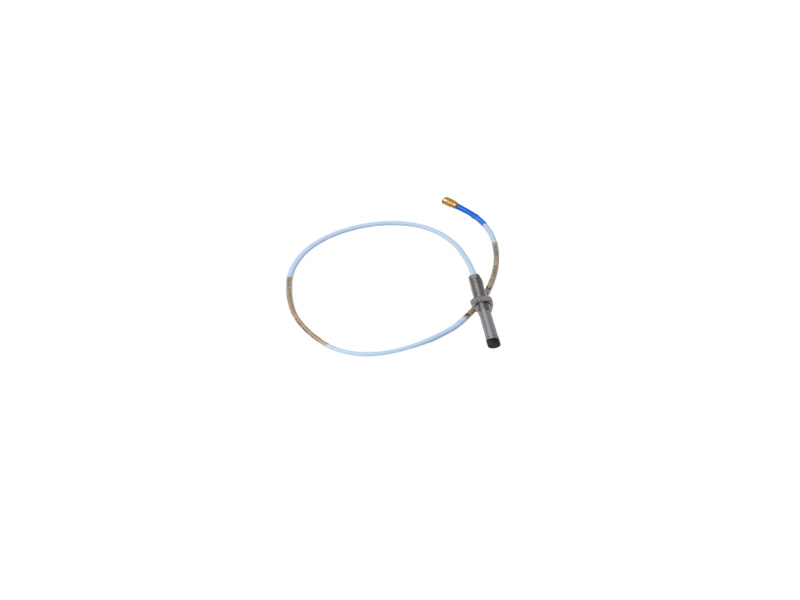

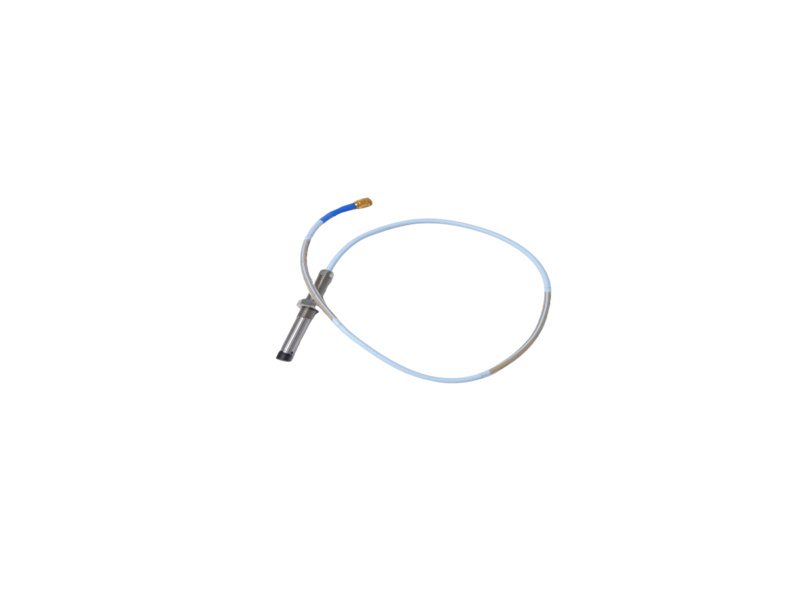

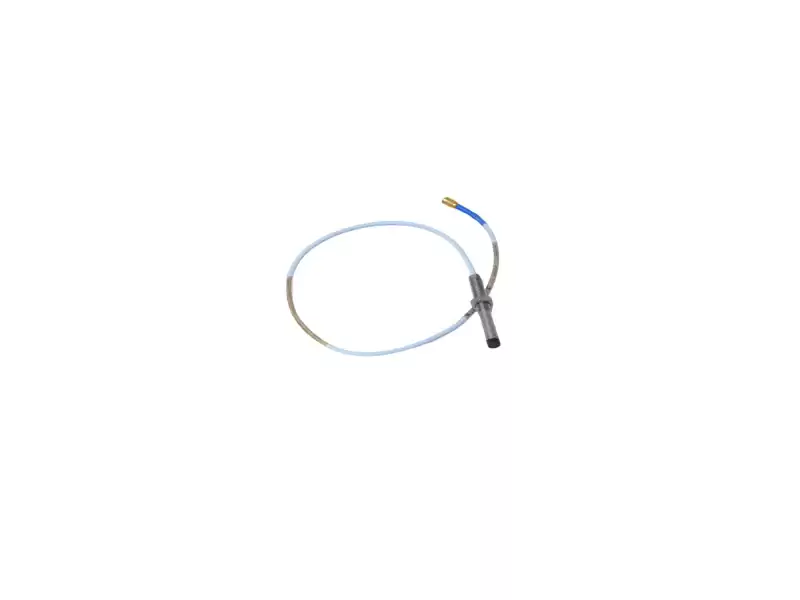

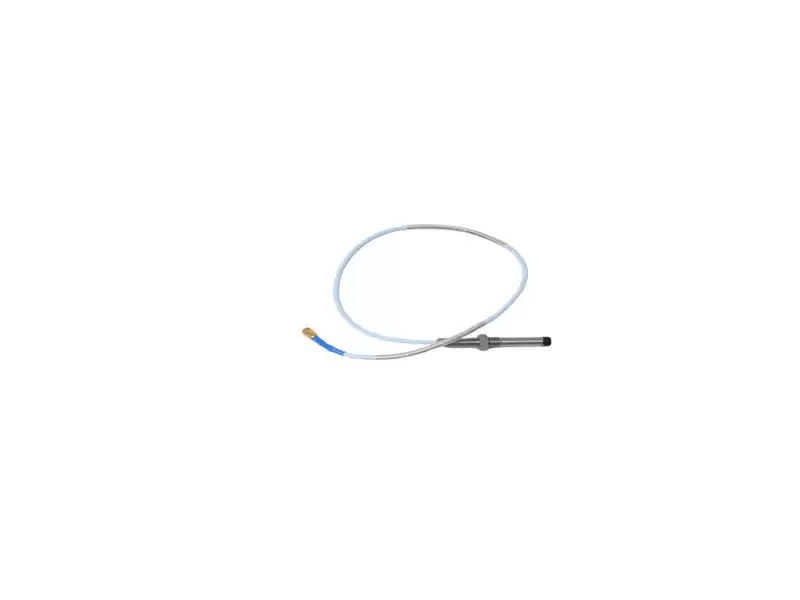

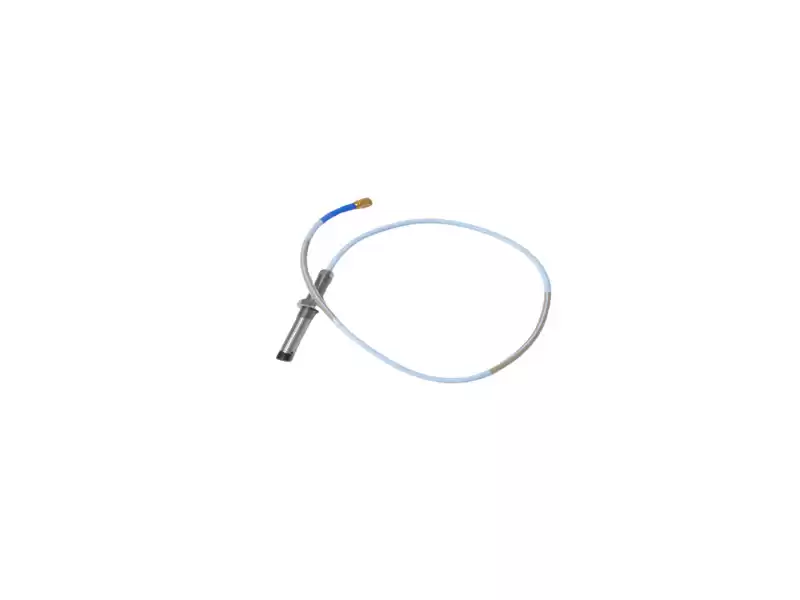

Bently Nevada 330101-40-60-05-02-05 3300 XL 8 mm Proximity Probe

Parameter

Value

Penetration Depth

100 mm (4.0 in) – compact housing

Cable Length

0.5 m armored – no extension needed for skid-mount cabinets

Sensing Range

2 mm (80 mil) linear

Sensitivity

7.87 V/mm ±5 %

Temperature

–51 °C … +177 °C

Thread

3/8-24 UNF-2A

Certifications

API 670 4th Ed., SIL-2 capable

Function

Bently Nevada Part Number

Benefit

Probe

330101-40-60-05-02-05

Stub-nose, 0.5 m cable – drop-in on skids

Proximitor

330780-91-05

5 m system for short runs (API-670 compliant)

Extension

330930-020-00-00

2 m armored extension if cabinet moved

Monitor

3500/46M 125720-02

Dynamic pressure monitor – adds surge detection

Power

330850-90-05

DIN-rail 24 Vdc supply, SIL-2 rated

Portable

2300/25-CN

Loop-powered vibration transmitter – no rack required

Housing

330880-16-00-039-03-02

PROXPAC XL self-contained probe + proximitor – IP66
