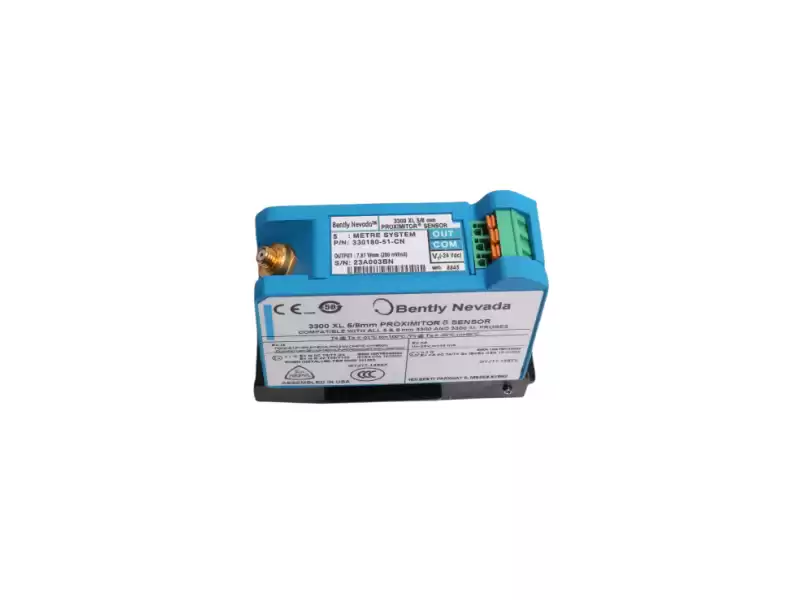

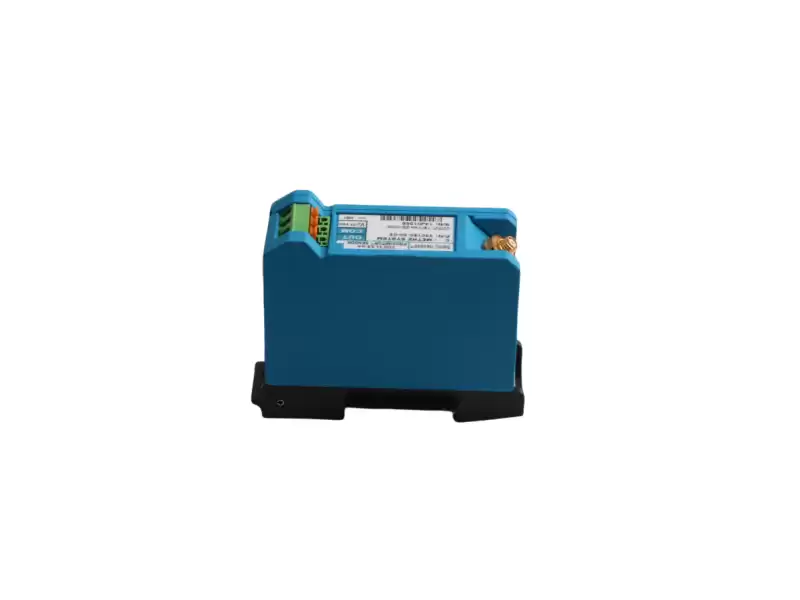

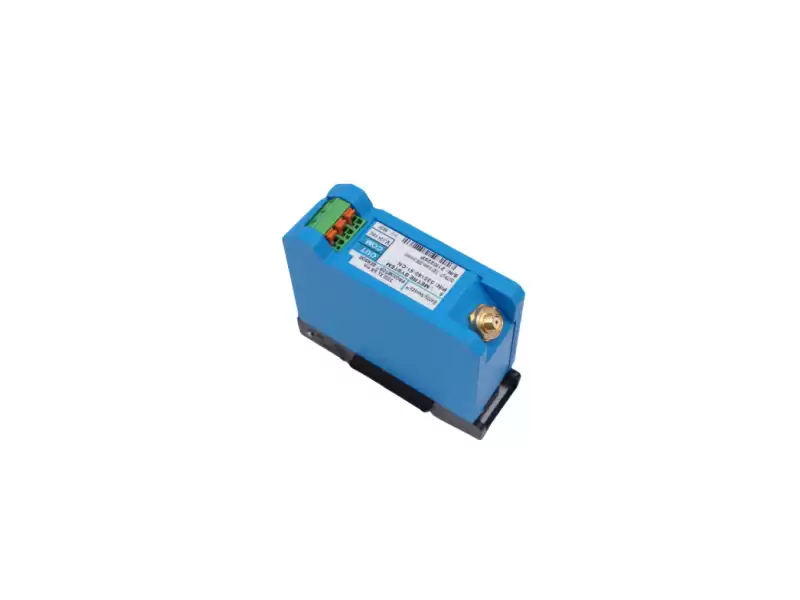

Technical Brief: Bently Nevada 330180-51-05 3300 XL Proximitor Sensor
Product Identity
330180-51-05 is a 5-metre-system 3300 XL Proximitor that converts eddy-current probe signals into calibrated vibration, displacement, or speed data for gas/steam turbines, compressors, pumps, and generators.
Key Specifications
• Linear range: 12.7 mm (500 mils)
• Sensitivity: 7.87 V/mm (200 mV/mil) ±5 %
• Frequency response: 0 – 10 kHz
• Output: –1.5 … –11.5 V DC over full range
• Supply: –17.5 … –26 V DC, 140 mA max
• Temperature: –40 °C … +70 °C proximitor, –52 °C … +177 °C probe/cable
• Mounting: DIN-rail or 4-hole panel, built-in isolation
• Approvals: CSA, ATEX, IECEx
Core Features
• Compact DIN-rail footprint for high-density panels
• Backward-compatible with 5 mm and 8 mm 3300/3300 XL probes
• ClickLoc gold-plated connectors—finger-tight, vibration-proof
• RFI/EMI immunity eliminates shielded conduit
Typical Applications
Steam-turbine bearing vibration, compressor shaft displacement, hydro-generator run-out, and zero-speed or keyphasor signals.
Related Parts (same-day stock)
Probe: 330104-00-05-10-02-00 (8 mm × 1 m)
Extension cable: 330130-040-00-00 (4 m) or 330130-050-00-00 (5 m)
Vibration monitor: 3500/42M vibration module
Speed monitor: 3500/50M tachometer module
Power supply: 149992-01 24 Vdc DIN-rail unit
All items are factory-sealed and ready for immediate dispatch from PLC Autocontroller.
