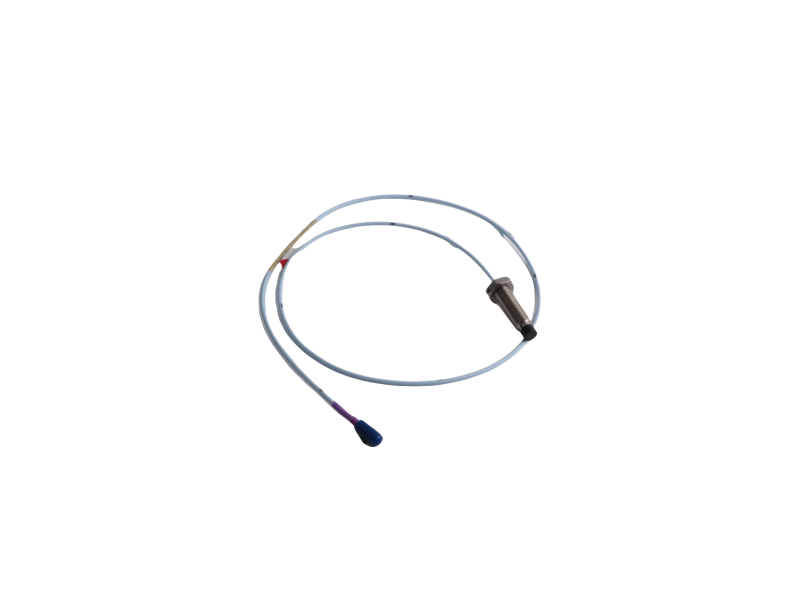

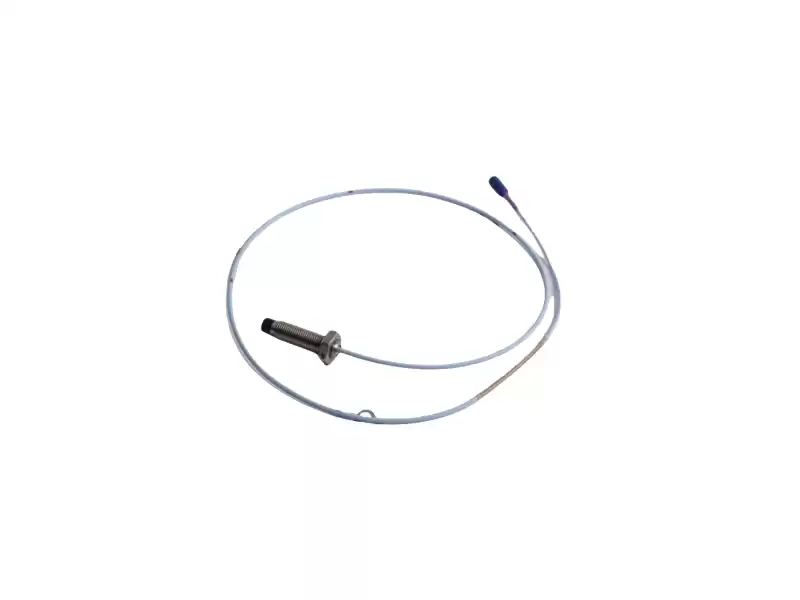

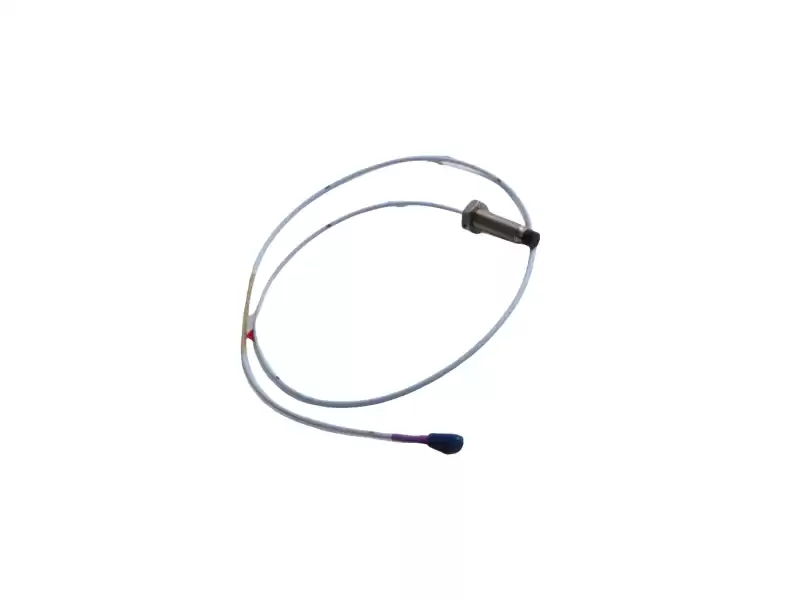

Bently nevada | 330703-000-050-10-12-05|11 mm eddy current non-contact approach probe
330703-000-050-10-12-05:Model 330703-000-050-10-12-05 This probe adopts eddy current non-contact measurement technology and is suitable for monitoring shaft vibration, shaft diameter clearance, bearing condition and speed (key phase or) of rotating machinery such as turbines, compressors, pumps, generators, turbine compressors, etc. Compared with the 8 mm probe, the 11 mm probe offers a longer linear measurement range and is more suitable for equipment with large shaft diameters or higher requirements for measurement range.
Key Specifications
|
Parameter
|
Value / Note
|
|
Brand/Series:
|
Bently Nevada 3300 XL series
|
|
Model (Part No.) :
|
330703-000-050-10-12-05
|
|
Probe type:
|
11 mm eddy current non-contact proximity probe
|
|
Probe housing/Material:
|
stainless steel housing
|
|
Overall shell Length (Case Length Option) :
|
50 mm (code "050")
|
|
Cable/connector options:
|
Standard cable + Miniature coaxial ClickLoc connector + Fluid - loc seal (Code "12" indicates fluid LOC cable and protection)
|
|
Application/Output:
|
Non-contact displacement/vibration measurement, suitable for shaft clearance, vibration monitoring, speed (key phase or/tachometer), etc
|
|
Compatible system:
|
Compatible with 3300/3300 XL Proximitor series/vibration monitoring system, can be integrated into the monitoring system (CMS/Shaft - vibration system).
|
Product advantages
Wide linear range, suitable for monitoring large shaft diameters/large displacements - the 11 mm probe has a larger linear range compared to the 8 mm probe, making it suitable for large shafts, liquid film bearings, and high-speed equipment.
High compatibility - Compatible with Bently Nevada 3300/3300 XL series environment, probe/extension/Proximitor interchangeable, simplifying maintenance and inventory management.
Industrial-grade materials and reliability - stainless steel housing + industrial-grade sealing/joint design, suitable for harsh industrial environments and long-term operation.
It has a wide range of applications - from pumps, compressors, turbines, generators to large heavy machinery, it can be used for various purposes such as vibration monitoring, shaft diameter offset monitoring, bearing condition monitoring, and speed (key phase Or) output.
Convenient for system integration and monitoring upgrade - It can be used in conjunction with the existing 3300/3500 / monitoring system (CMS), which is conducive to the implementation of system upgrade, maintenance, condition monitoring/predictive maintenance (PdM).
