330708-00-10-90-02-00 |armored approach probe

PLC Autocontroller | Sales Manager May | Wechat id: dcsfcs

Product Identification

Model: 330708-00-10-90-02-00

Manufacturer:BENTLY NEVADA

Type/Function: high-performance analog output (AO) module

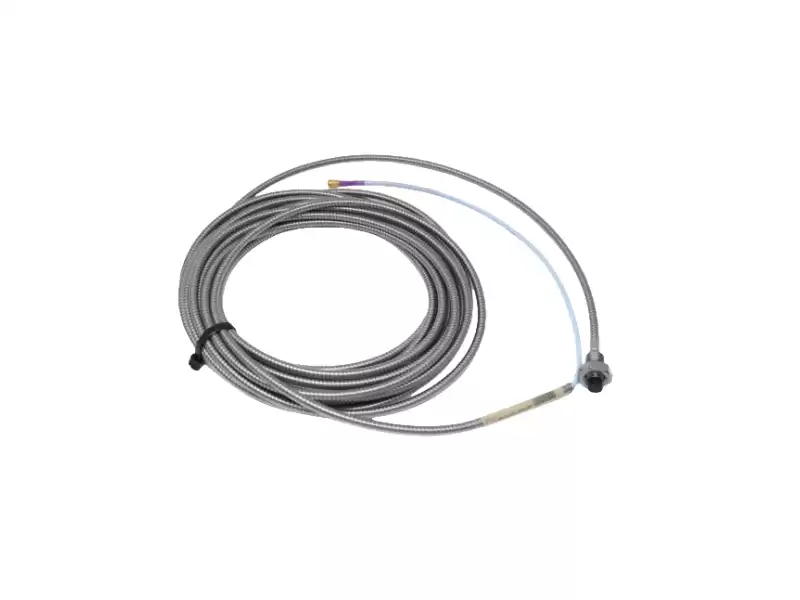

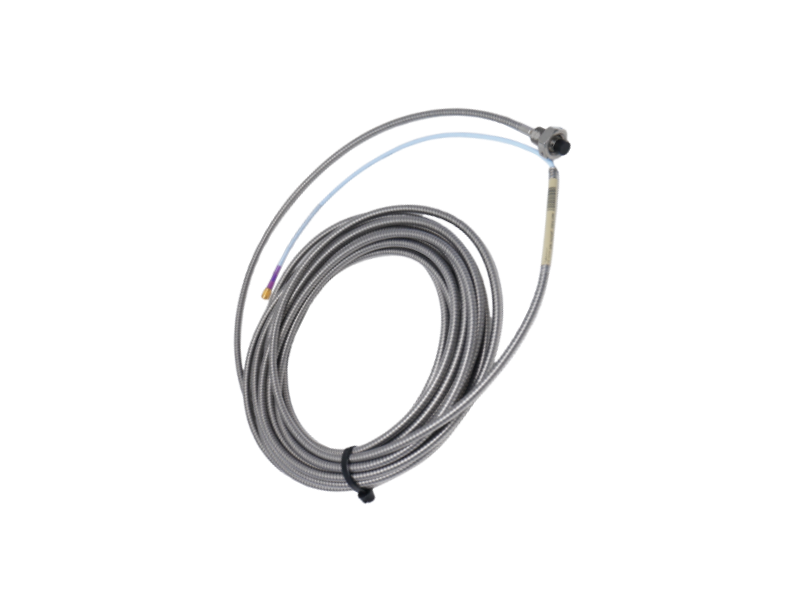

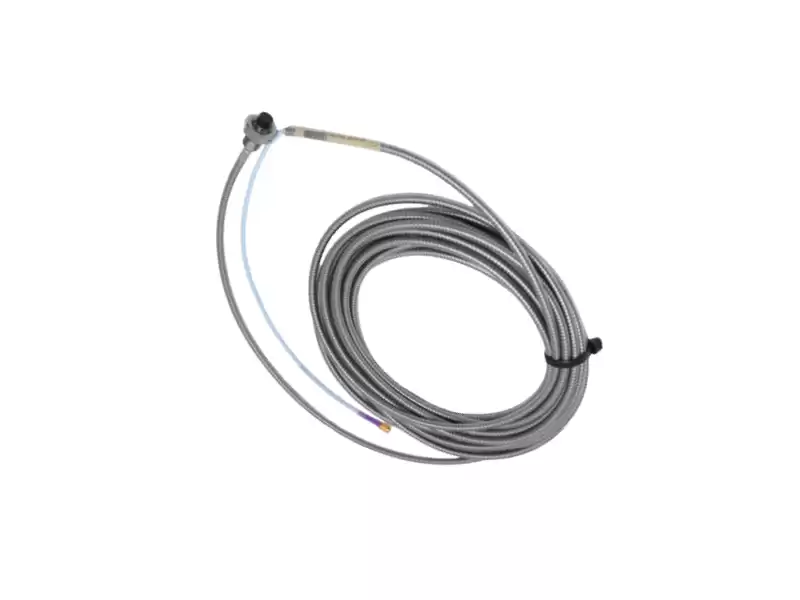

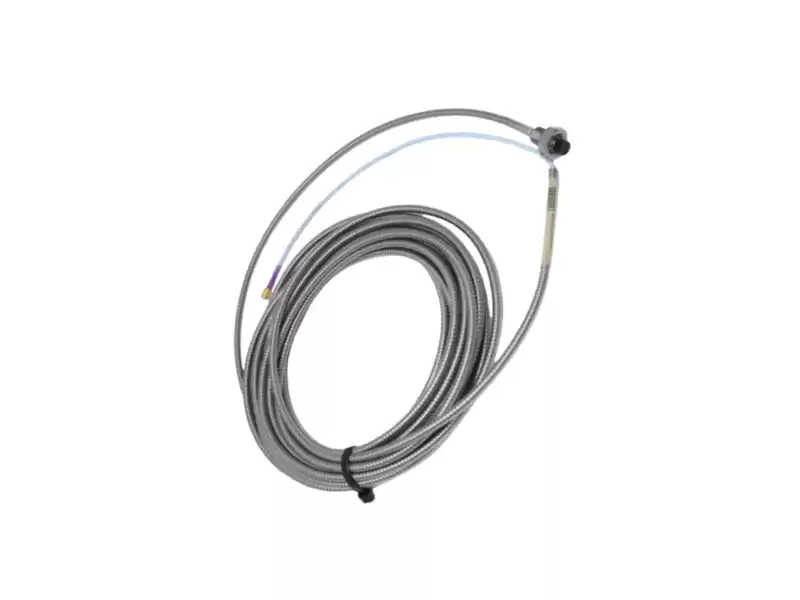

330708-00-10-90-02-00armored approach probe

330708-00-10-90-02-00 is an 11 mm armored approach probe of the Bently Nevada 3300 XL series. According to Bently 's 11 mm system data, this series of probes offers a wide linear measurement range and is suitable for monitoring displacement, vibration, Keyphasor (phase reference), etc

Key Technical Specifications

Model 330708-00-10-90-02-00

Probe category: 3300 XL 11 mm armored probe

Total cable length 9.0  meters (90 = 9.0 meters)

Connector type: Miniature Coaxial ClickLoc, standard cable (02)

Measurement range (linear range) : 4.0 mm (160 mil) Linear range

Proportionality coefficient (ISF) 3.94 V/mm (equivalent to 100 mV/mil)

Cable type: 75 Ω triaxial coaxial cable, FEP insulation

The DC resistance from the center conductor of the output impedance probe to the outer shield

Rated threads 5/8-18 UNF

The material of the probe housing is stainless steel (stainless - steel armor).

Core advantages and characteristics

Ø The larger probe diameter increases the measurement range: The 11 mm probe provides a wider linear measurement range than the 8 mm probe and is more suitable for high-displacement scenarios such as thrust and differential expansion.

Ø Armored structure (Armored) : The high-strength stainless steel armor effectively resiesses mechanical shock and vibration, protects the probe cable, and enhances environmental adaptability.

Ø Long cable design: A bus length of 9  meters (90) allows for flexible wiring and is suitable for large machinery or installations with a distant spatial distribution.

Ø Reliable connection: The ClickLoc micro connector has reliable locking, which can prevent connection loosening and enhance long-term stability during use.

Ø High output sensitivity: The proportionality coefficient (ISF) of 3.94V /mm provides high-precision output, which is conducive to high-speed/high-dynamic vibration monitoring.

Ø Wideband response: 3300 XL 11 mm system design frequency response up to 8 kHz (-3 dB), suitable for high-frequency vibration monitoring
