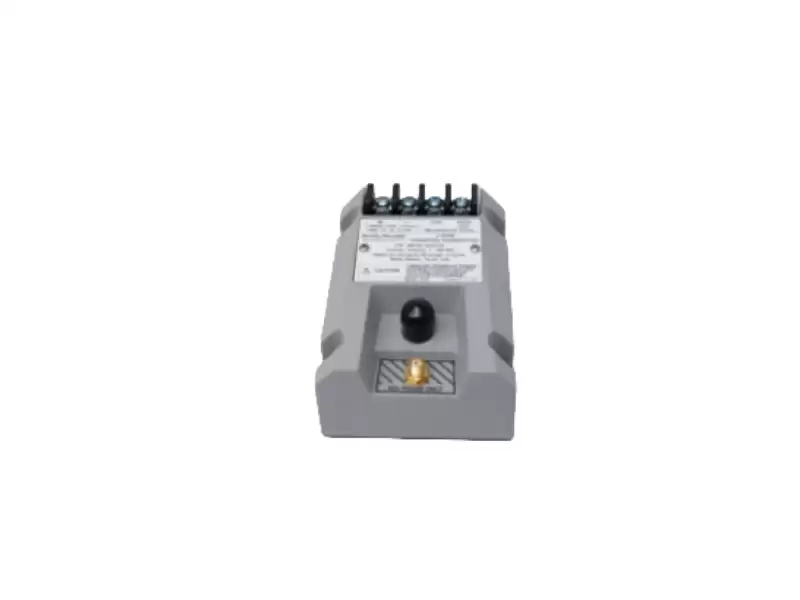

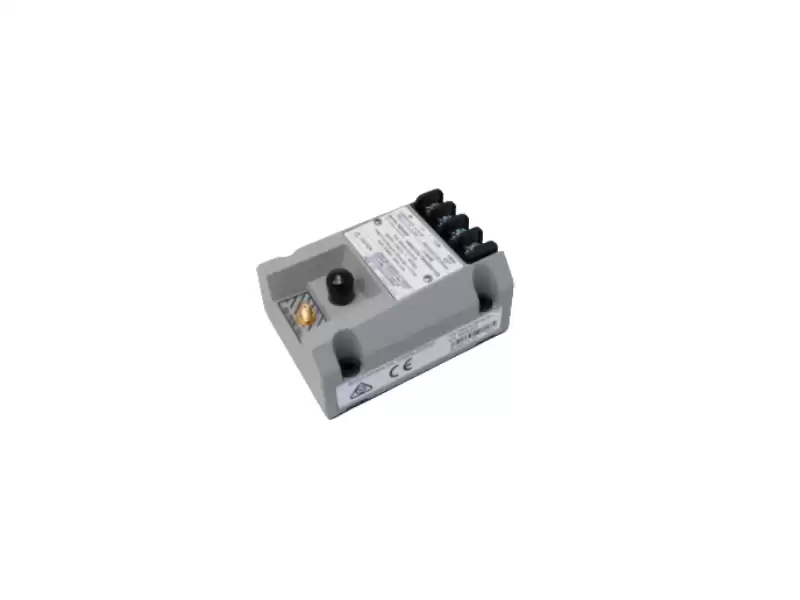

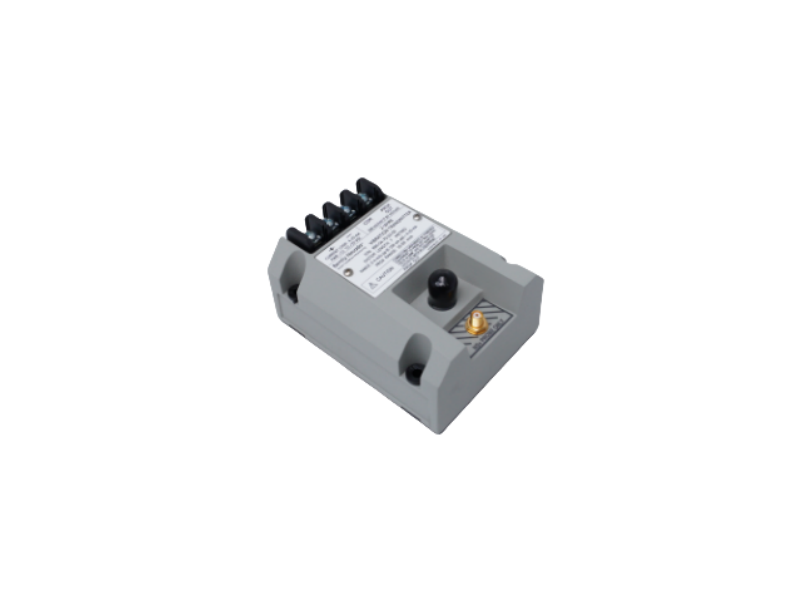

Bently Nevada 990-04-70-02-00 vibration transmitter

PLC Autocontroller |20 years of experience specializing in automation equipment

990-04-70-02-00 | vibration transmitter

PLC Autocontroller| Sales Manager May

Product Overview

990-04-70-02-00 belongs to the Bently Nevada 990 series 2-wire vibration transmitter and is used in conjunction with 3300 NSv Proximity Probe and its extension cables. It can accept mechanical vibration/shaft displacement signals from the probe and convert them into standard 4-20  mA analog output, enabling direct connection to PLC/DCS/monitoring systems. This design is simple and reliable, and is suitable for basic vibration monitoring and trend monitoring of rotating machinery.

Key parameters and specifications

Ø Model (PN) 51196655-100

Ø Module type: Dual-Node Power Supply Module

Ø Applicable system Honeywell TDC 3000 DCS

Ø Input current ~4 A

Ø The total output power is 165 W

Ø Output voltage multi-channel DC: 5 V, 12 V, 27 V

Ø Output current: 5  V@ ~20 A, 12  V@ ~3 A, 27  V@ ~1 A plus an additional 0.6 A

Ø node support supports two nodes (dual-node)

Ø There is isolation between the isolation/safety node and the power supply (some datasheet mentions 1500V).

Ø The installation form is usually used in racks/control cabinets and is hot-swappable.

Product Advantages

Simple integration - 2-wire loop - powered + 4-20  mA output, convenient for direct integration with analog inputs of systems such as PLC/DCS

Industry standard compatibility - The output is a standard analog signal, which is easy to integrate with various control systems/monitoring systems, facilitating the implementation of vibration trend monitoring and alarm logic

Suitable for long wiring/long-distance installation - 7.0 m system length + Bulkhead installation method, which is conducive to flexible wiring and mechanical layout requirements

Reliable structure - The classic design of the 990 series features structural stability and reliability that are moisture-proof and resistant to industrial environmental influences

Diagnostic function - In addition to the standard analog output, a diagnostic output interface (PROX OUT/coaxial) is also provided for easy maintenance/fault analysis

Order & ship

u Xiamen stock, 1 Year Warranty

u 100% Original Package

u UPS/ DHL/ FEDEX / TNT
