Overview

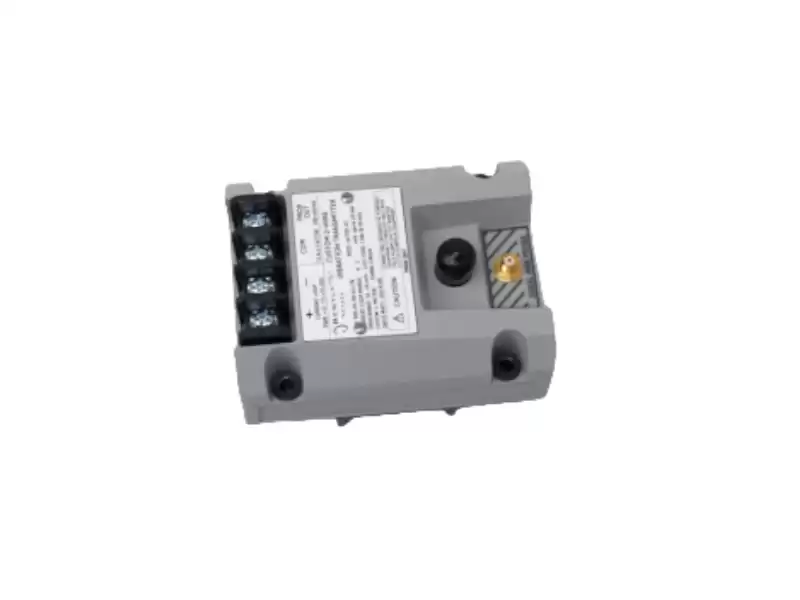

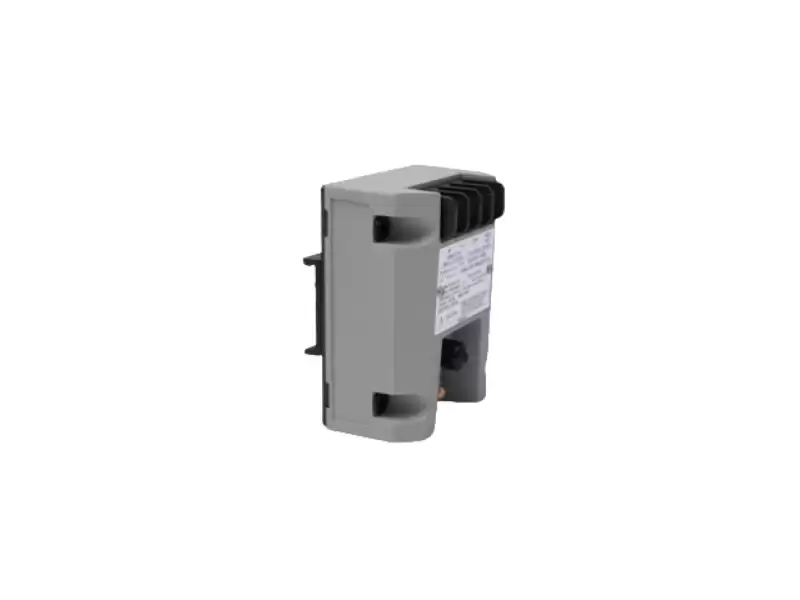

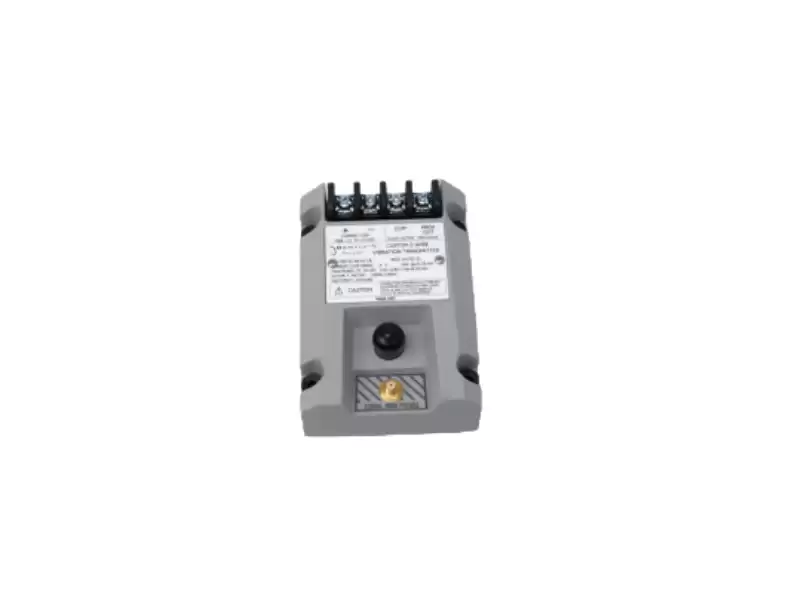

Bently Nevada 990-05-XX-03-05 (PN: 147202-01) is a two-wire (Loop-Powered) vibration transmitter used to convert mechanical vibration quantities into standard 4-20mA current output.

This transmitter can be paired with Bently 3300 series probes to achieve monitoring of shaft vibration trends, alarm linkage, and remote maintenance diagnosis. It is suitable for direct integration into control systems such as PLC and DCS.

Core Specifications

Ø Model 990-05-XX-03-05

Ø Part number: PN 147202-01

Ø Output signal: 4-20 mA (two-wire system)

Ø Power supply requirement: 12-35 V DC (loop power supply)

Ø Probe compatibility is applicable to Bently 3300 NSv / 3300 series non-contact probes

Ø Dynamic signal output PROX OUT (non-isolated coaxial interface)

Ø Fault protection output < 3.6mA (when the probe/cable is abnormal)

Ø Frequency response: 5 Hz - 6 kHz (typical)

Ø Temperature range: -40 °C to +85°C

Ø The external zero point/span adjustment mode is adjustable

Ø Installation method: Rack, control cabinet, on-site fixed installation

Product advantages

Simple wiring: Two-wire power supply and signal integration, reducing installation costs.

Excellent system compatibility: Supports multiple Bently probe combinations, facilitating the replacement or expansion of old systems.

It has the ability to self-check for abnormalities: It can quickly output abnormal signals when the probe is loose, open-circuited or short-circuited.

Suitable for harsh industrial environments: high-temperature resistant, anti-interference, and long service life.

Strong maintenance and diagnostic capabilities: PROX OUT can be directly connected to an oscilloscope/analyzer for in-depth diagnosis
