990-10-XX-01-00 MOD:165353-01 |vibration transmitter
PLC Autocontroller | Sales Manager May | Wechat id: dcsfcs
Product Overview

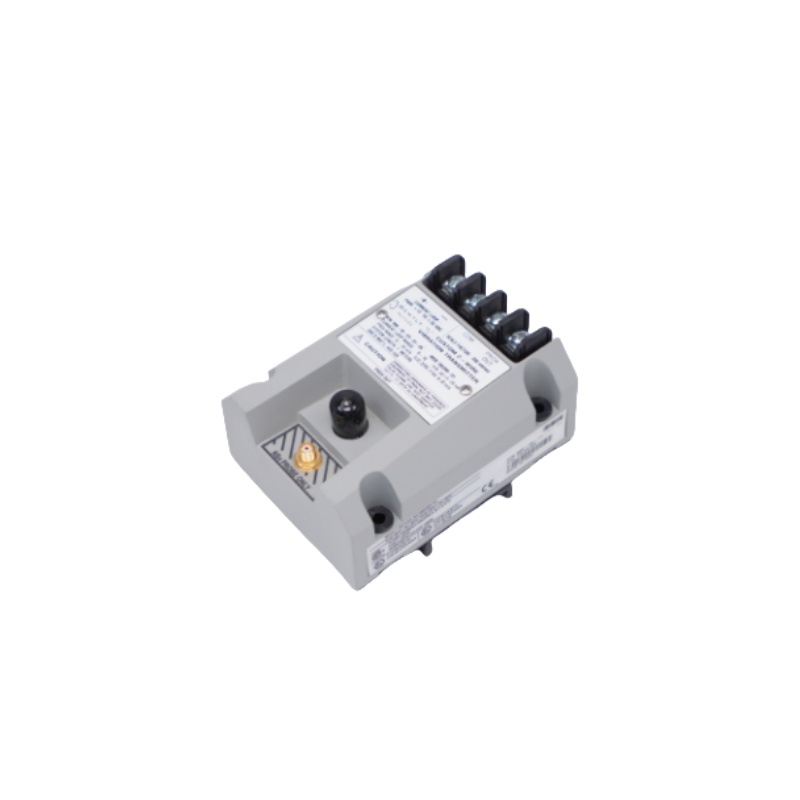

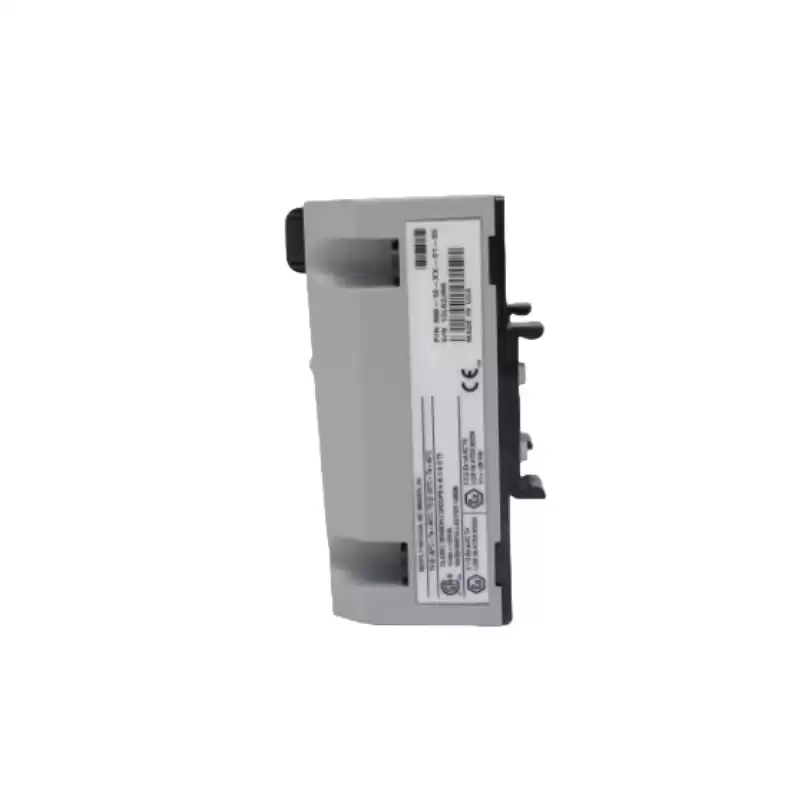

Model 990-10-XX-01-00 (MOD:) 165353-01 is a two-wire vibration transmitter of the Bently Nevada 990 series, used to convert the signal from the Proximity Probe into a standard 4-20mA output. It is convenient to be connected to PLC/DCS/monitoring systems. This model is suitable for OEM and industrial equipment monitoring applications.
Key Technical Specifications
Ø Model: 990-10-XX-01-00 (MOD: 165353-01)
Ø Type: 2-wire vibration transmitter (Loop-powered)
Ø Input proximity probe (Bently 3300 NSv series) + extension cord (5m / 7m)
Ø Output peak-peak vibration quantity (engineering unit) → 4-20 mA current signal
Ø The maximum Loop Resistance can be found in the official datasheet (for example, approximately 1,000 Ω at 35V).
Ø Zero/Range adjustment external non-interacting zero (Zero) and range (Span) potentiometers
Ø Diagnostic interface "PROX OUT" coaxial connector + "COM" terminal (non-isolated)
Ø "Not OK" Signal Defeat protection circuit (" Not OK/signal defeat ") to prevent high output or false alarms
Ø Operating temperature: -40 °C to +70°C (or +85°C, depending on the specific environment)
Compatible modules and accessories
|
Proximity Probe: Bently 3300 NSv series probe, which is very commonly used in conjunction with this transmitter.
|
|
Extension line/system length: Usually 5m or 7m system length (select according to "XX")
|
|
Test/diagnostic equipment: An oscilloscope or analytical instrument can be connected through the "PROX OUT" interface for vibration signal testing and diagnosis.
|
|
Adjustment tool: A small flat-head screwdriver required for zero point and range adjustment.
|
|

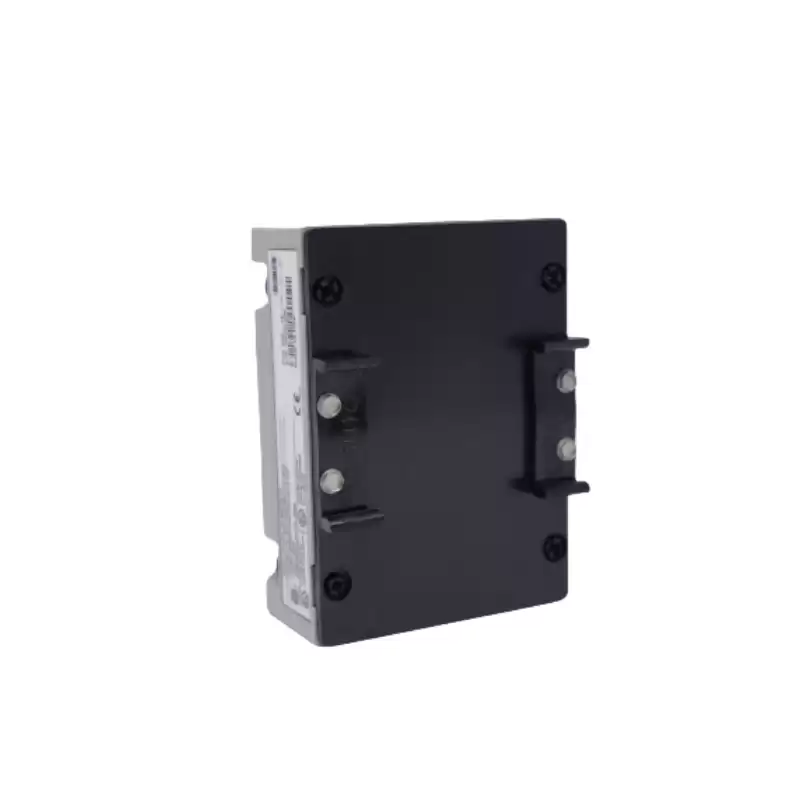

Installation accessories: DIN rail clips or panel screws
|
