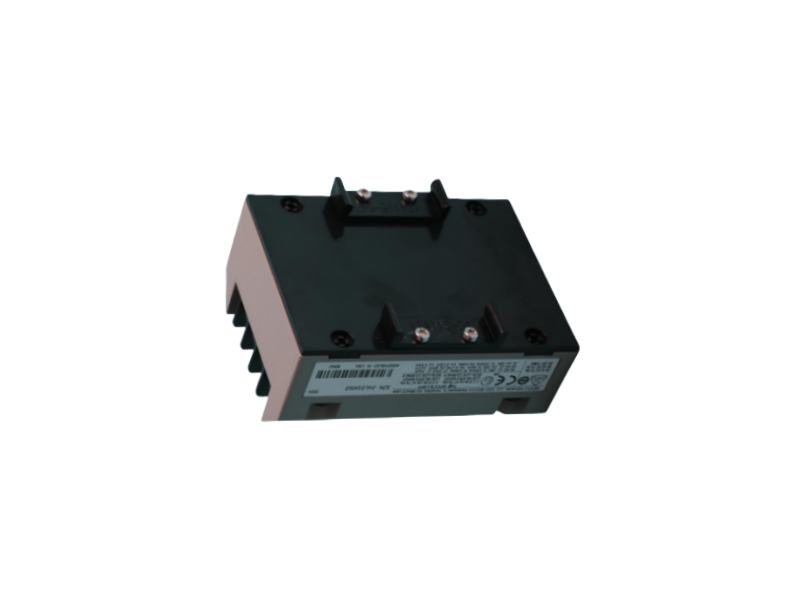

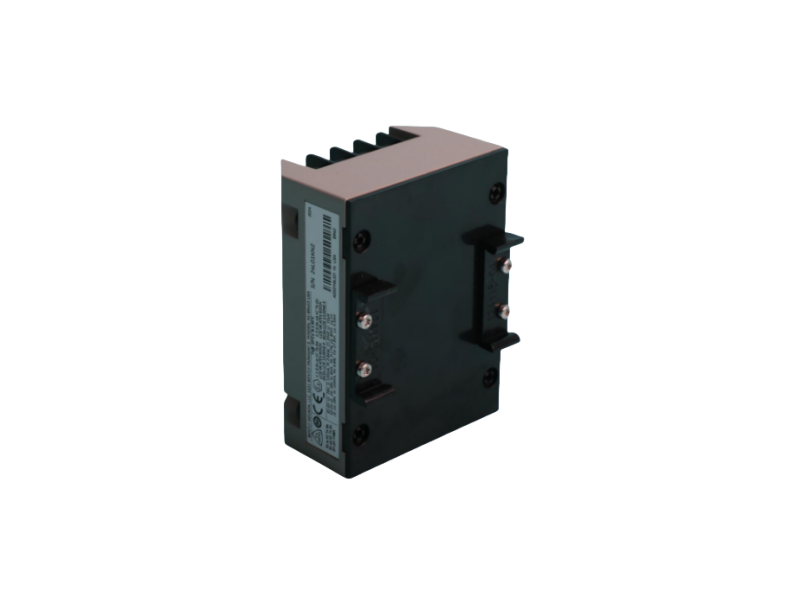

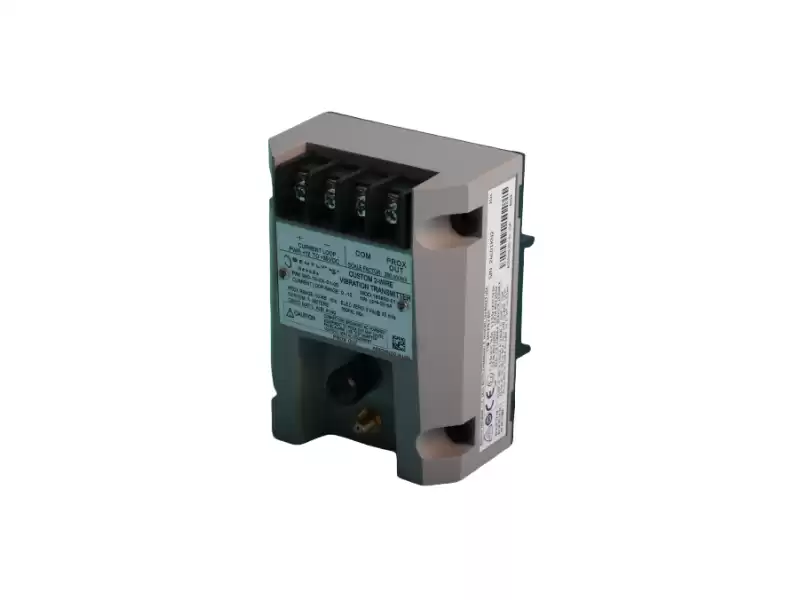

Bently Nevada 990-10-XX-01-05 MOD:285269-01 vibration transmitter

PLC Autocontroller |20 years of experience specializing in automation equipment

990-10-XX-01-05 MOD:285269-01| vibration transmitter

PLC Autocontroller | Sales Manager May| Wechat id: dcsfcs

Overview

Model 990-10 - XX - 01-05 (MOD: 285269-01) is a high-frequency 2-wire vibration transmitter of the Bently Nevada 990 series. It converts the vibration signals of rotating machinery (such as compressors, pumps, turbines, etc.) into standard 4-20  mA output, suitable for OEM integration, as well as real-time condition monitoring and predictive maintenance.

Core Specifications

Ø Model/Version：990-10-XX-01-05 (MOD: 285269-01)

Ø Signal type/sensor:Proximity probe or other vibration sensors

Ø Output signal：4-20 mA loop power supply + output

Ø Supply voltage: 12-36 V DC

Ø Frequency response range example: 10 Hz to 10 kHz

Ø Measurement range/sensitivity, such as 10-100 mm/s (or other ranges)

Ø Environmental protection IP65 / IP67 (depending on the version)

Ø The Zero and Span external adjustable potentiometer for calibration function

Ø Fault protection "Not OK/Signal Defeat"

Ø Installation method: DIN rail or panel/base plate installation

Compatible modules and accessories

Proximity Probe: Such as the Bently Nevada 3300 NSv series probe, which is often used in conjunction with the 990 series transmitter.

Test adapter: When using the Test Input interface, loop verification can be performed using an oscilloscope/signal generator.

Wiring cable: It is recommended to connect the probe and the transmitter with shielded twisted-pair cable to reduce interference.

Installation accessories: DIN rail clips/bolt base plates are suitable for different installation environments.
