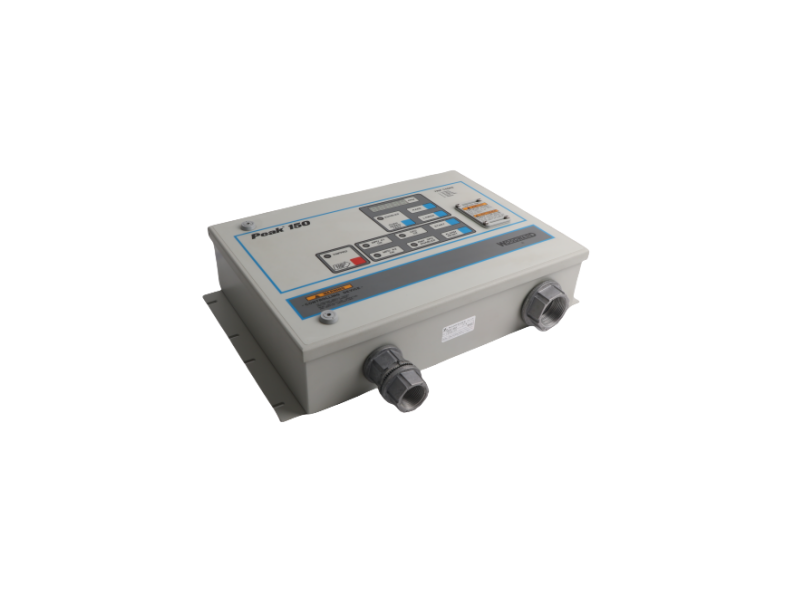

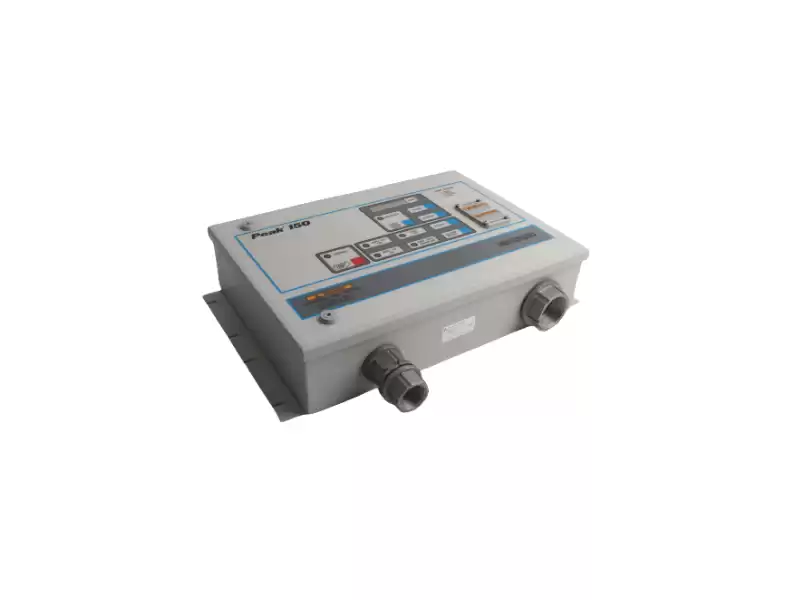

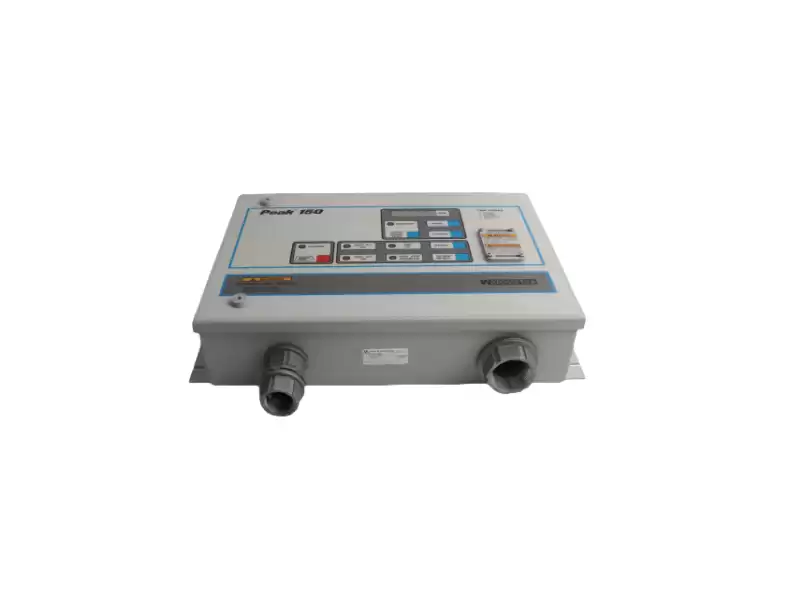

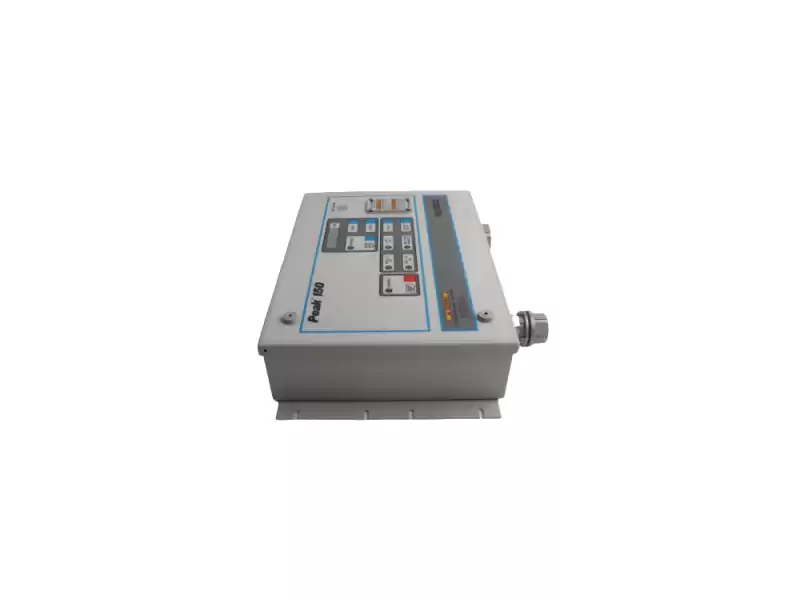

The 9905-860 is a Woodward Peak 150 series digital control unit with a power supply of 24 V DC, featuring a Modbus communication interface and installed in a NEMA 4 protection grade enclosure. It is specifically designed for steam (or mechanical load) -driven steam turbine control.
Key Specifications
|
Item
|
Value
|
|
Model:
|
9905-860 Peak 150 Series Control Unit
|
|
Power input:
|
18- 32V DC (typical 24V)
|
|
Communication protocol:
|
Modbus communication interface
|
|
Enclosure protection class:
|
NEMA 4 or NEMA 4X (certain version)
|
|
Magnetic sensor input:
|
(MPU) 2-channel, high-signal preferred input
|
Compatible module and accessory list
Ø Handheld programmers such as model 9905-292 can be used for on-site Settings and menu configurations
Ø The bottom of the wiring/connection opening is provided with two cable openings, which are respectively used for low/high current lines
Ø Communication expansion supports Modbus communication and integration with PLC/DCS systems.
Ø The mounting bracket can be wall-mounted or used for 19 "rack mounting. Refer to the package structure.
