TACH100-01 174652-01 | acquisition module
Sales Manager: May | Email: ab@mooreplc.com | Phone: +8618106909650 (WhatsApp) | WeChat: dcsfcs
Industrial Power Supply Module | Global 3-day DHL | 12-month warranty
What it is

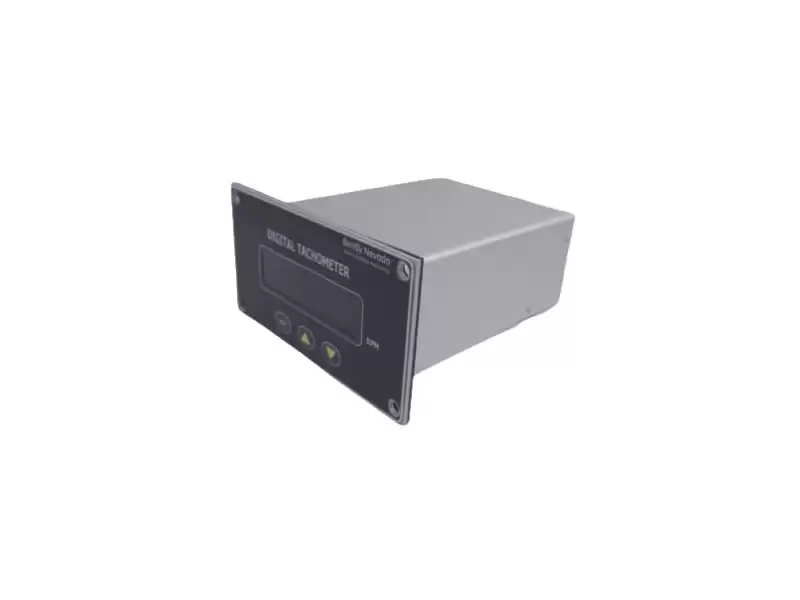

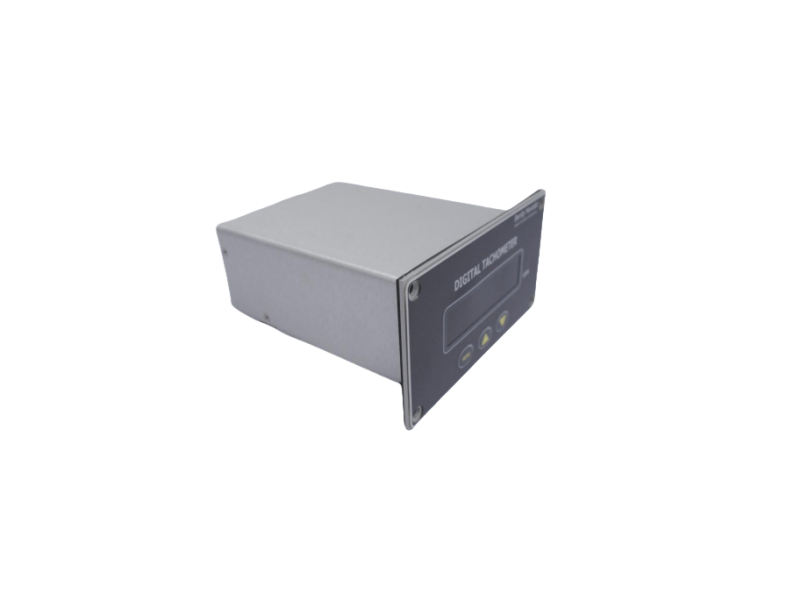

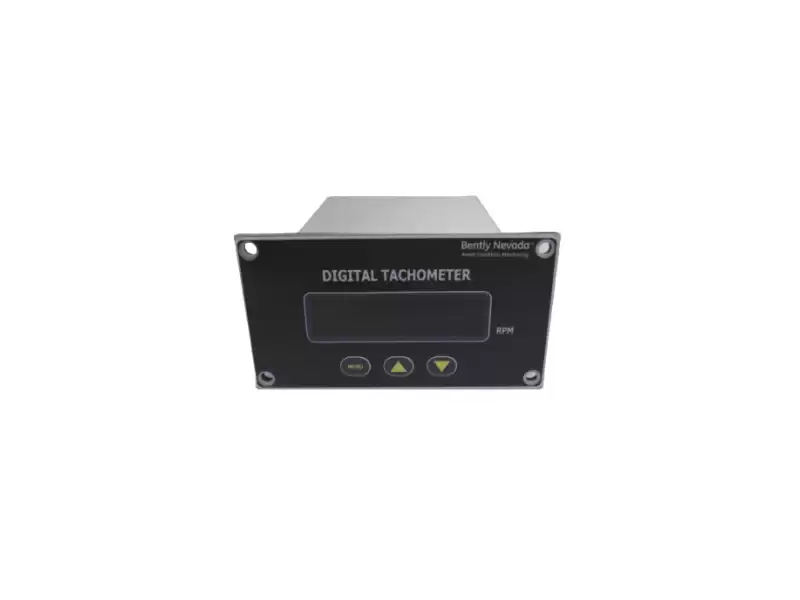

TACH100-01 174652-01 is a high-speed speed and key phase acquisition module designed for industrial rotating machinery systems, used for real-time speed monitoring and synchronous signal acquisition of key equipment such as turbines, compressors, motors, and pumps. This module provides a reliable data foundation for speed protection, phase analysis, vibration diagnosis and mechanical health monitoring by precisely capturing Keyphasor® signals, and is an important component of industrial mechanical protection systems.
Technical Specifications
Module model: TACH100-01
Order Number: 174652-01
Input type: Keyphasor® Speed/Key signal collection
The signal supports input from TTL, magnetoelectric and photoelectric probes
Input channel number: single channel/dual channel (depending on the version)
The sampling accuracy and high-precision rotational speed calculation are suitable for high-speed rotating machinery
The supported speed range is from low speed to high speed (specific parameters can be filled in according to the manual).
The output uses include speed protection, phase analysis, synchronization signal, and working condition judgment
The interface type is standard rack-mounted slot installation
Compatible modules and applicable systems
3500/22M communication gateway module communicates with the upper-level system
3500/20 rack power module
3500/25 acceleration/velocity monitoring module
3500/42M velocity/acceleration/shock and vibration monitoring
The Keyphasor® probe series, when used in conjunction with the TACH100-01, achieves precise key phase and rotational speed acquisition
Product advantages
² It has a strong high-speed response capability and can cope with the speed changes of high-speed rotating machinery
² Accurately capture the key signal to ensure the accuracy of vibration analysis and phase measurement
² Supports multiple probe types to enhance the flexibility of system configuration
² The modular structure is convenient for maintenance, expansion and replacement
² Industrial-grade reliability, suitable for harsh environments such as high temperatures and high vibrations
² Seamlessly compatible with the Bently Nevada monitoring system to build a complete mechanical condition monitoring platform
