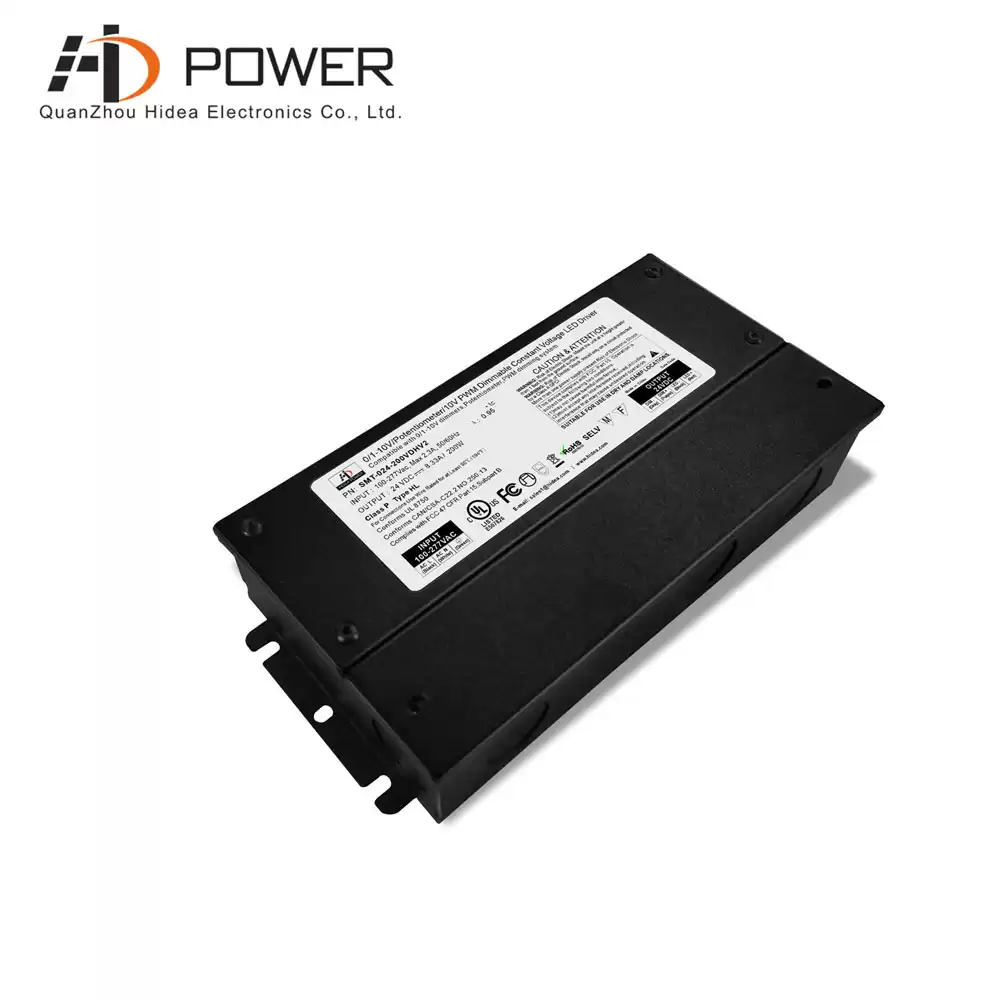

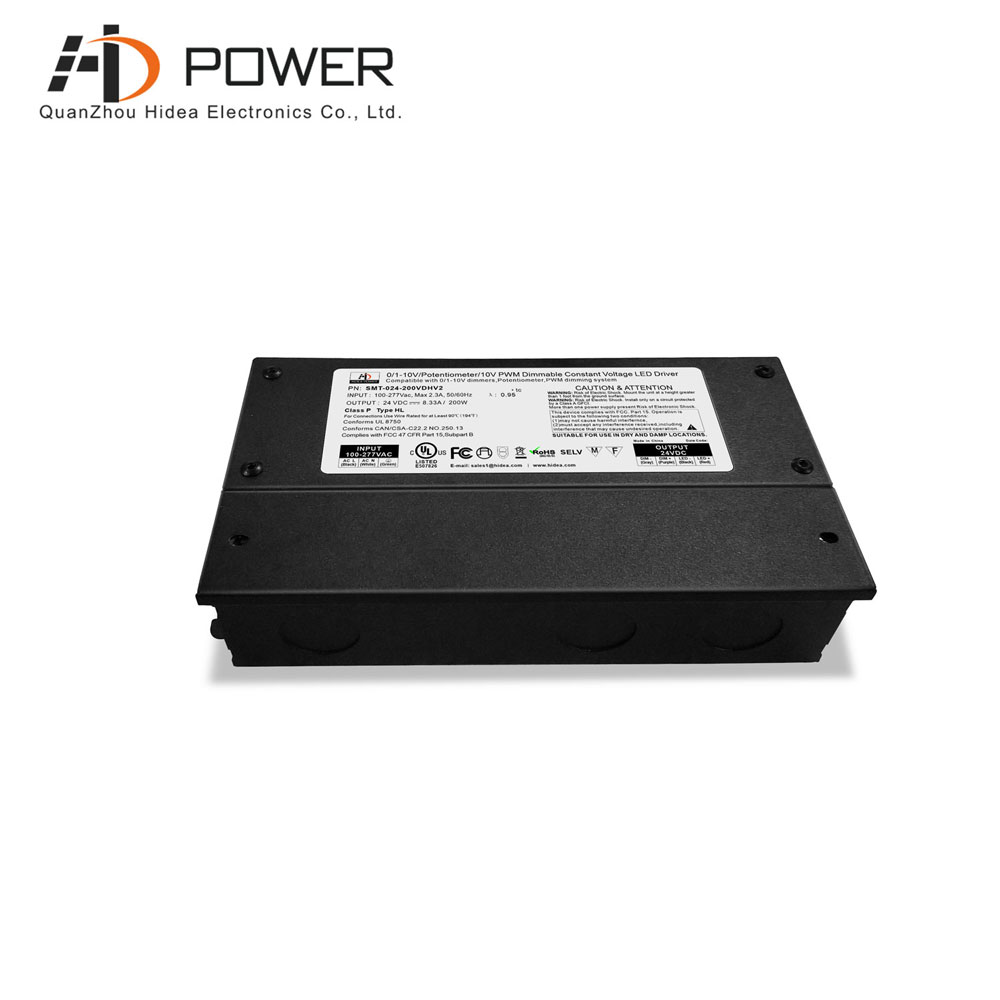

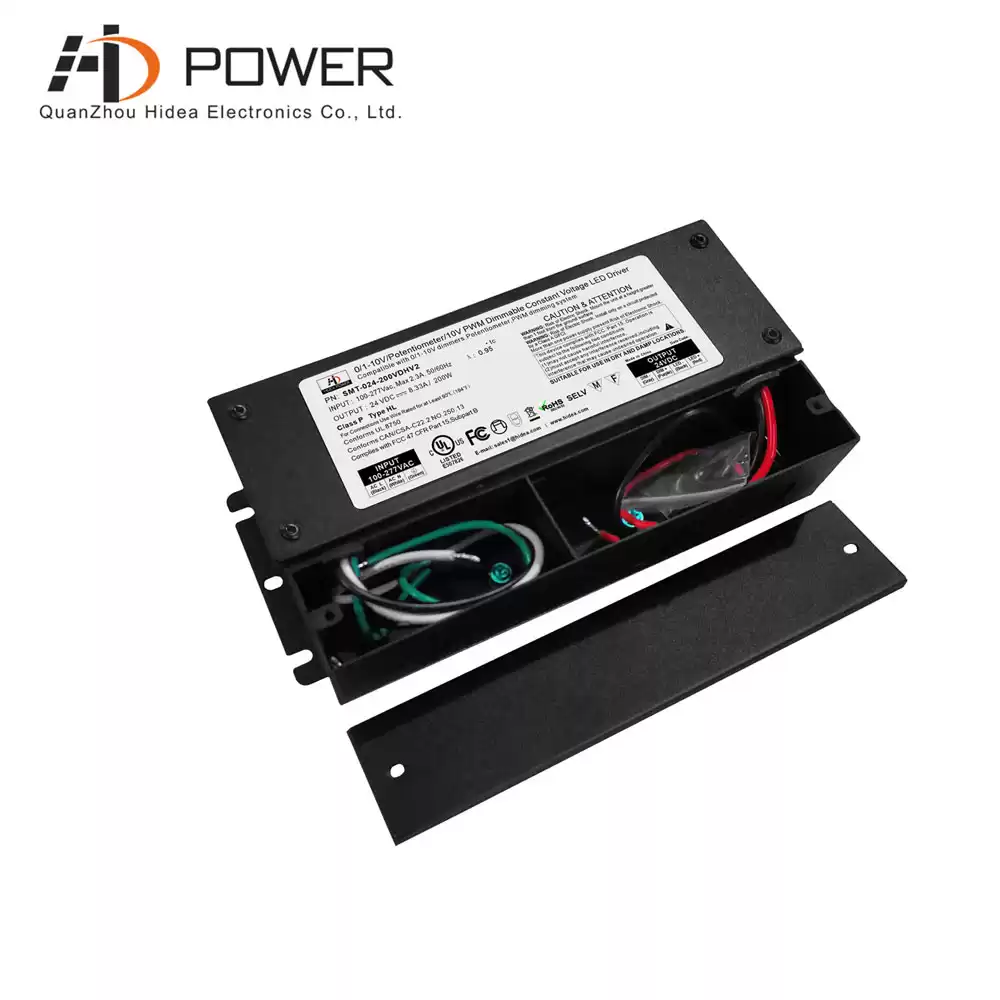

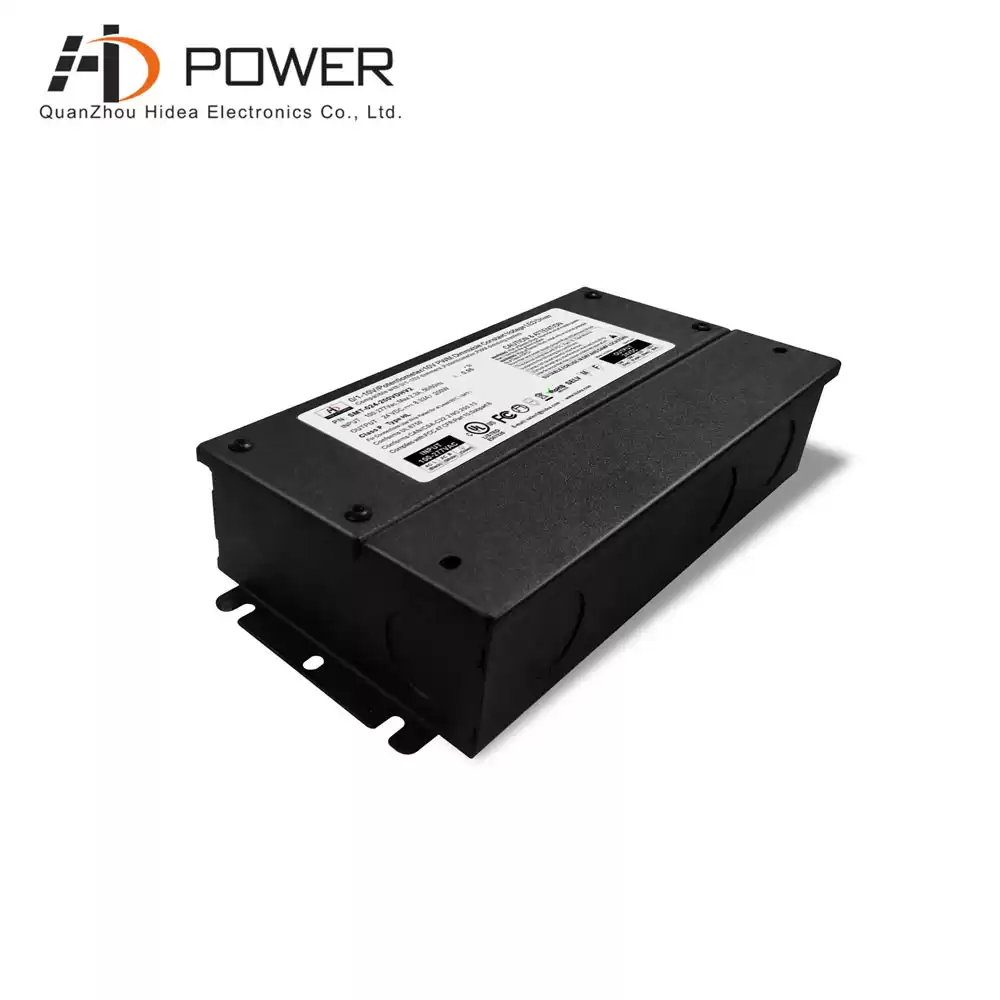

best 24v 200w 0 10v dimmable constant voltage LED driver junction box
hideapowertech's best-selling 200W 0 10V dimmable LED driver complies with global safety lighting regulations, has built-in PFC function, ultra-low load requirements, and can work perfectly under 10-100% load
Specification
|
Model
|
SMT-012-200VDH (1.0 version)
SMT-012-200VDHV2 (2.0 version)
SMT-012-200VDHWV2 (3.0 version)
|
SMT-024-200VDH (1.0 version)
SMT-024-200VDHV2 (2.0 version)
SMT-024-200VDHWV2 (3.0 version)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Rated Current
|
16.67A
|
|
Rated Power
|
200W
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2%
|
|
Input
|
Voltage Range
|
110-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(Typ.)@ full load
|
0.98@120VAC 0.97@277VAC
|
0.98@120VAC 0.95@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency(Typ)@ full load
|
83% @120Vac / 87%@277Vac
|
86% @120Vac / 88%@277Vac
|
|
AC Current(Max.)
|
2.3A@100Vac
|
|
Inrush Current (Typ.)
|
15A, 50%, 1.4ms @120Vac 30A, 50%, 1.4m,s @277Vac
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
