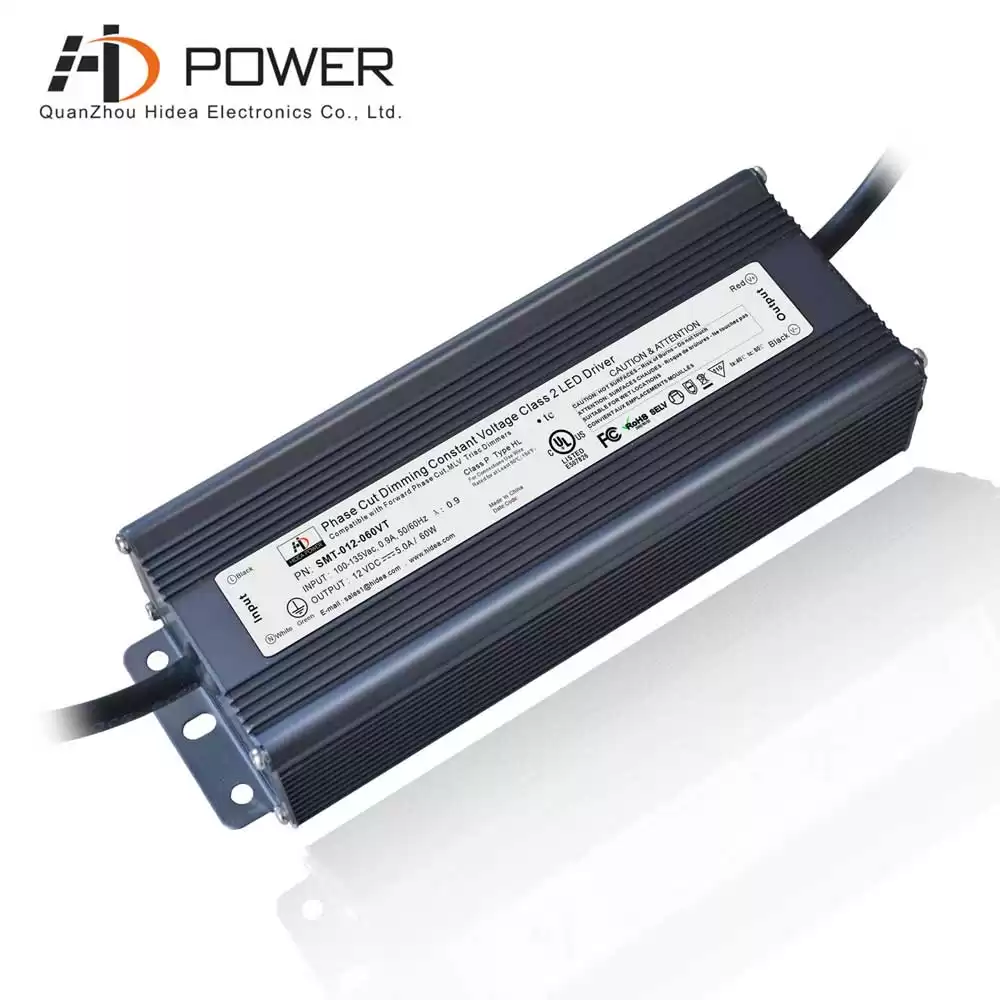

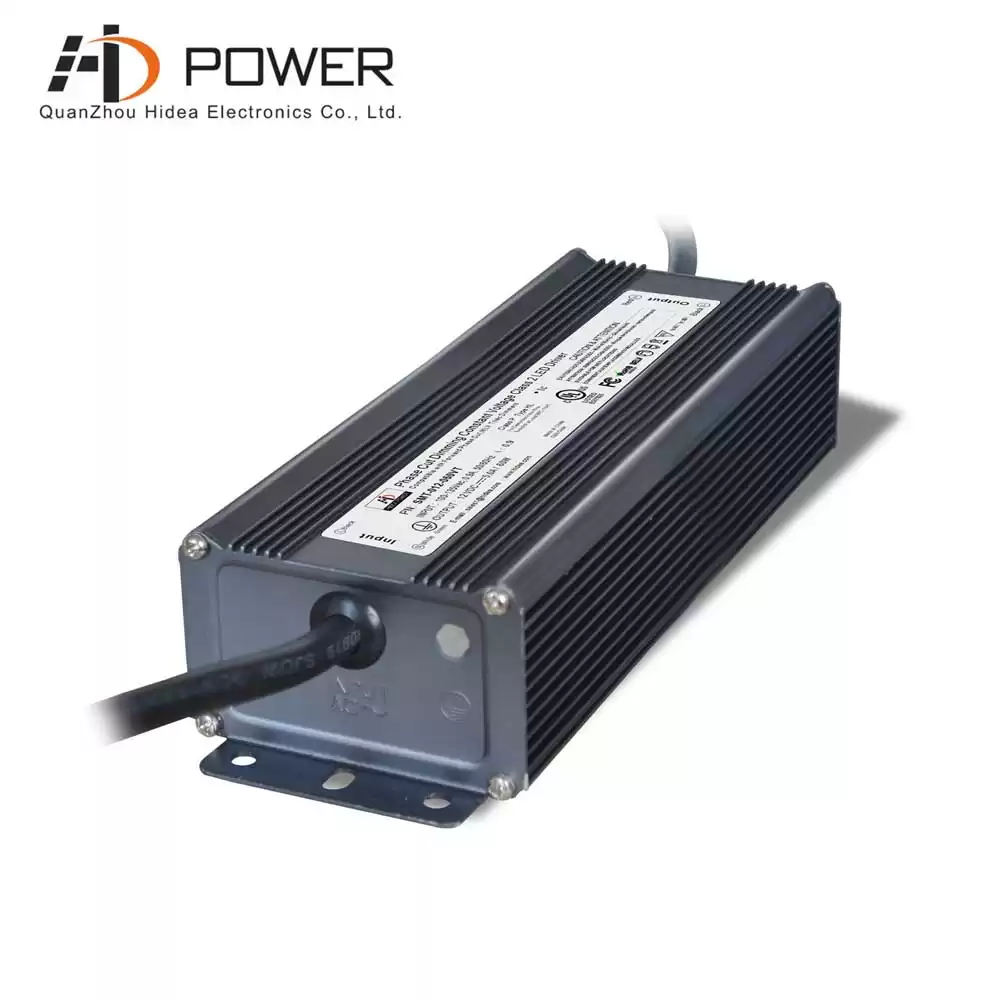

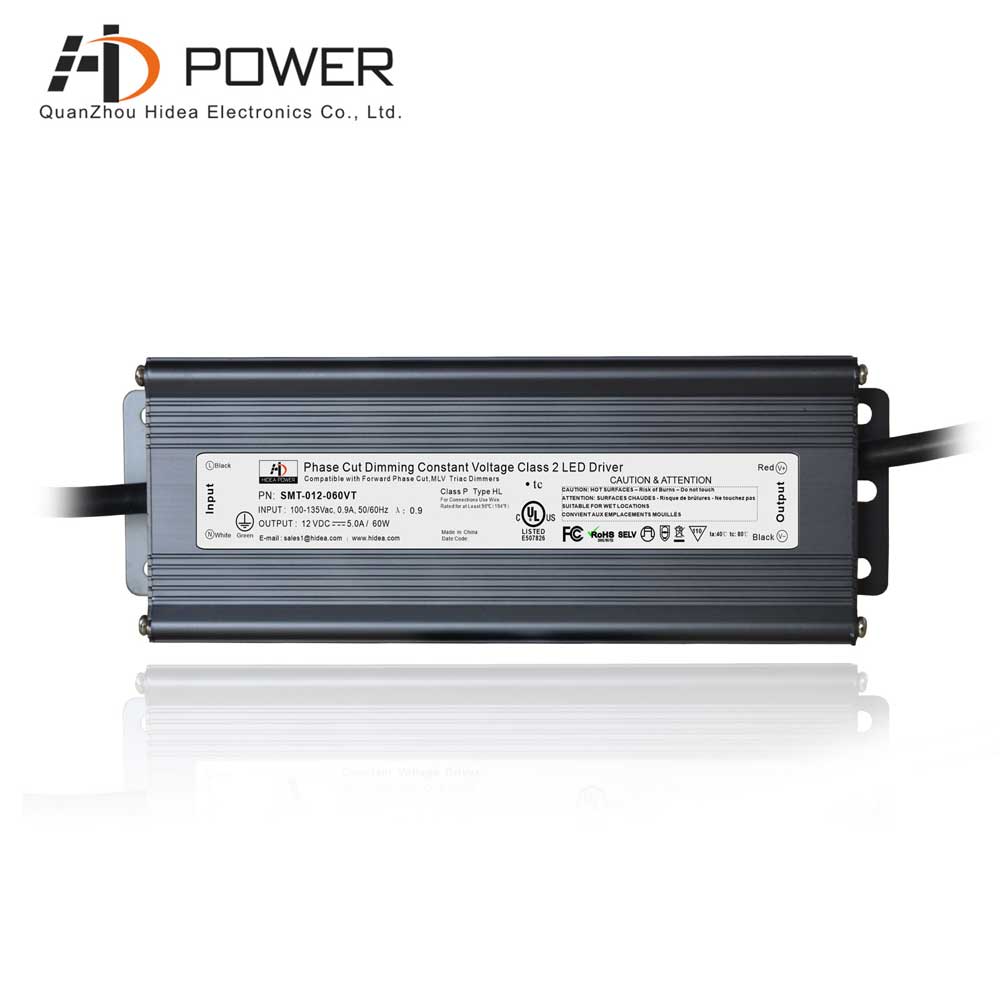

best waterproof constant voltage triac led driver power supply 24v 60w no flicker
hideapowertech's best-selling product triac dimmable 60w led driver has built-in active PFC function, constant voltage working mode, efficiency up to 83%, aluminum shell, convenient and fast heat dissipation, 5-year warranty
Specification
|
Model
|
SMT-012-060VT
|
SMT-024-060VT
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Rated current
|
5A
|
2.5A
|
|
Rated power
|
60W
|
|
Input
|
Voltage Range
|
90-135VAC/170-265VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor
|
PF≥ 0.95 (Full loading)
|
|
Efficiency(Typ.)
|
82%
|
85%
|
|
AC Current(Max.)
|
0.77A
|
0.76A
|
|
Leakage current
|
﹤0.50mA/120VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recover automatically after fault condition is removed
|
|
Over Current
|
≤1.2*I out
|
|
Over Loading
|
≤120%
|
|
Over temperature
|
100℃±10℃,Shut down o/p voltage,recover automatically after temperature goes down.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~95%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,5G 12min./1 cycle,period for 72min. each along X,Y,Z axes
|
|
|
Safety standards
|
UL8750+UL1310 Class 2 unit
|
|
Safety& EMC
|
Withstand voltage
|
I/P-O/P:1500VAC
|
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Net. Weight
|
0.95 Kg
|
1.55Kg (with junction box)
|
|
Size
|
200*70*46mm(L*W*H)
|
350*77*57mm(L*W*H) (with junction box)
|
|
packing
|
329*279*176mm 10PCS
|
350*85*65mm 10PCS
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC/220VAC input , rated load and 25℃ of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
|
3.Loading should be 60-100%.
|
Compatible Light Type

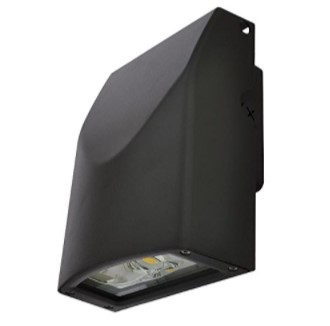

This triac dimmable 12v 60w led drivers with 5 years warranty got UL SAA CE ROSH appeoval, it is hot sell products in the US, EU, AU martket. It can match well with ONFORU Pack light.
Related Products
|

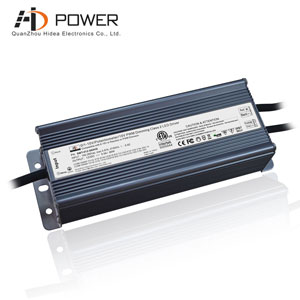

 60W 0 10V dimmable led driver aluminum shell design, waterproof grade ip67, effectively waterproof and dustproof, ETL certification complies with global lighting safety regulations
