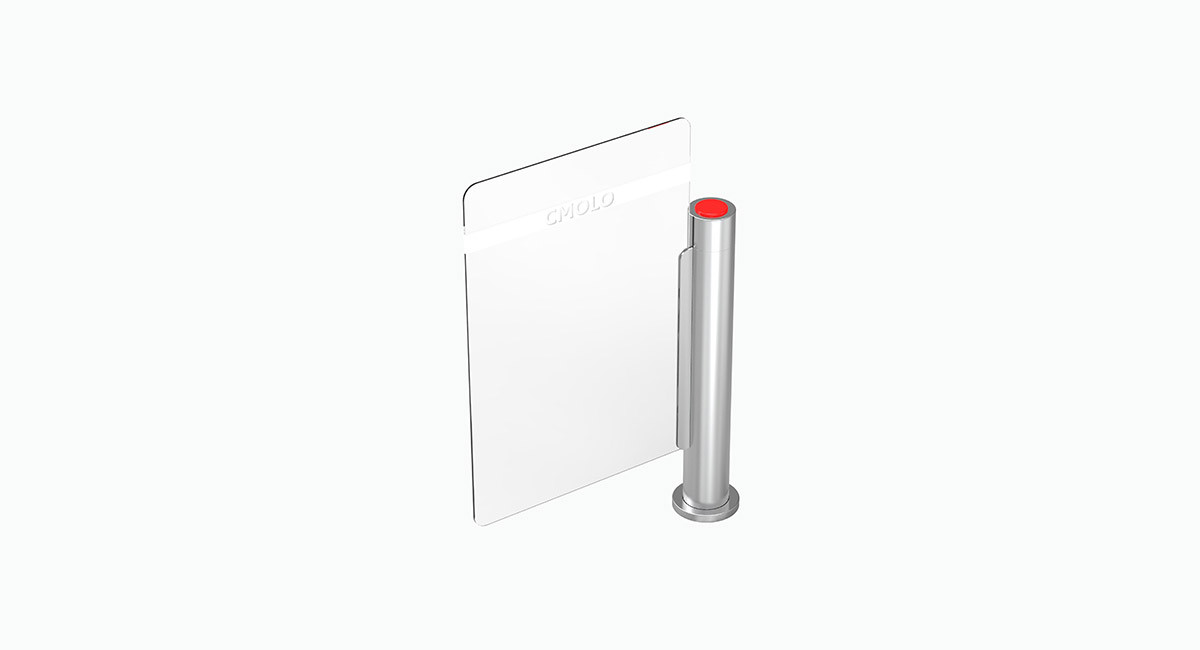

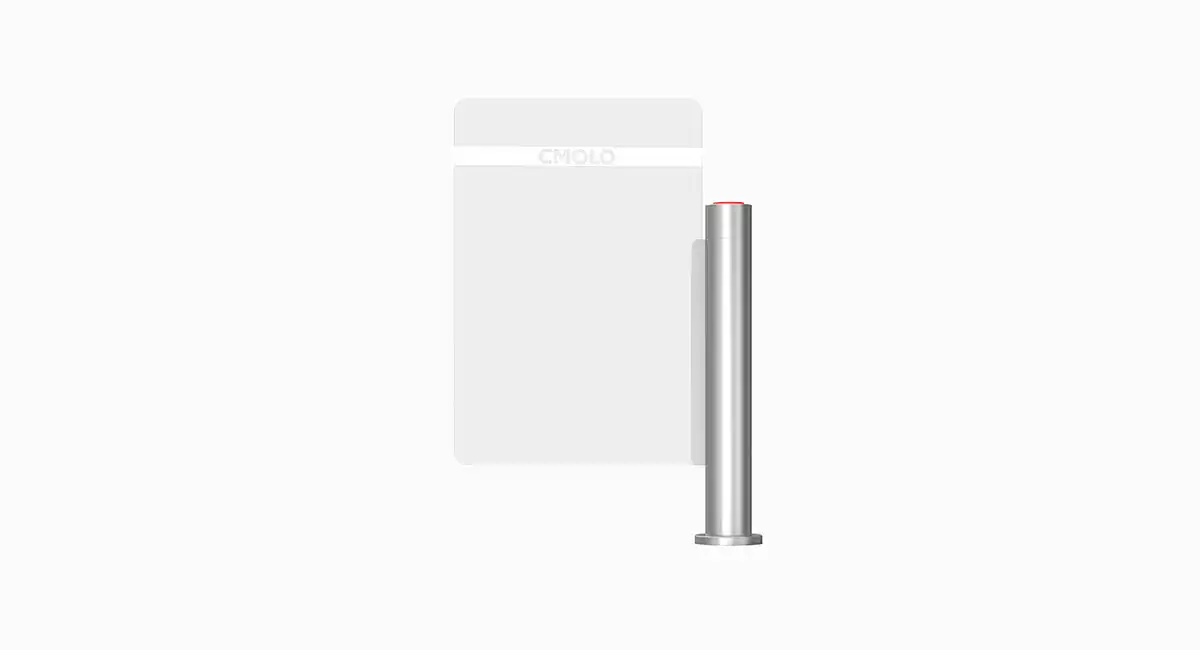

Bi-directional High Glass Half Height Turnstile

The high glass half height turnstile CPW-163Y has lossless modular mechanism structure, and has advanced servo control system independently developed by CMOLO and advanced DSP+ARM motor control technology, adopts brushless DC motor and the encoder with accurate positioning, which makes the glass gate run quickly and accurately, smoothly, silently, stably, with high safety and long service life.

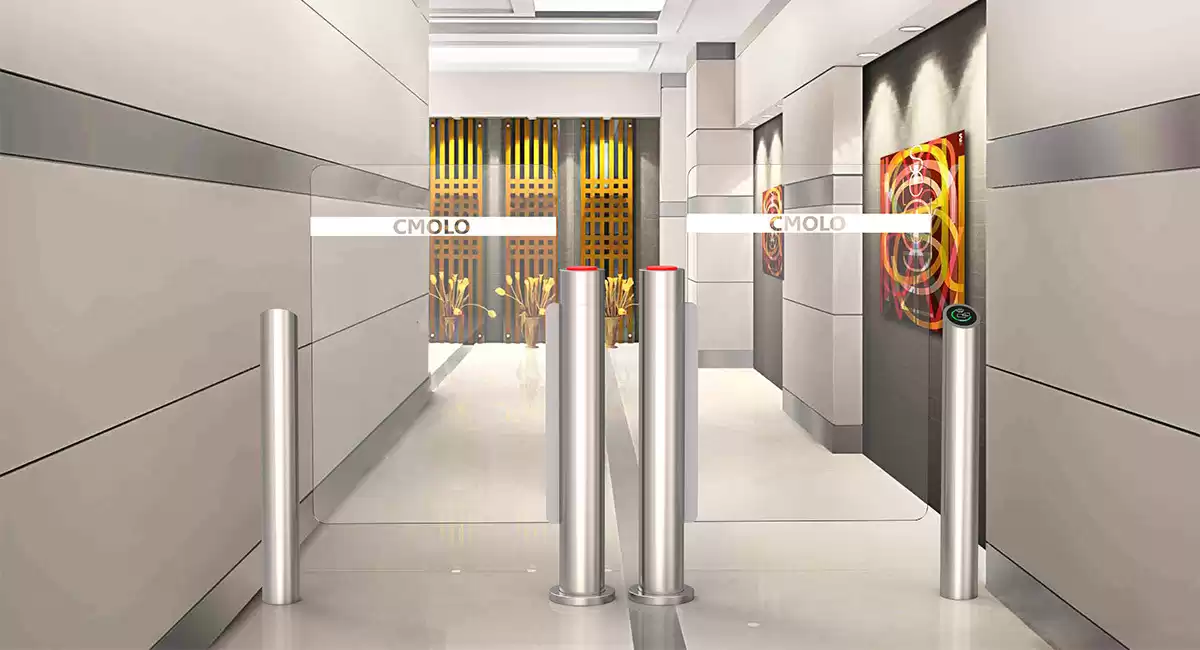

The half height turnstile is suitable for office building, airport, government building, school, hospital and other high-end indoor occasions.







advanced core patented technology





high safety, triple anti-pinch





high stability, optimize the mechanism structure





long life, longer than 10 million times



















modular design, easy maintenance





























The Features of High Glass Cylindrical Speed Gate Turnstile

The structure of the mechanism is optimized, and high-performance parts are used to improve the load capacity and driving ability of the mechanism, so as to ensure that the high gate is stable without shaking or shifting during operation.
After the glass is heightened and widened, the obstacle area is increased, it cannot be crossed, and the security is stronger.



Advanced & Intelligent Turnstile Core Technology



Strong & stable mechanism structure

The lossless modular mechanism structure independently developed by CMOLO and the full CNC processing technology ensure the precision, strength, concentricity of the mechanism, and the transmission ratio are accurate, efficient and stable, which can precisely control the rotation angle of the gate and reduce the loss to ensure the reliability of the mechanism, and enhance the service life of the mechanism.



Advanced core logic algorithm

The high glass half height turnstile adopts advanced servo control system and DSP+ARM motor control technology, combined with CMOLO's original motor control algorithm, to achieve precise control and positioning of the obstacle and maintain stable performance.



Long service life

CMOLO has independently developed an advanced lossless mechanism structure, and is equipped with a high-quality brushless DC motor (core of the mechanism), so that the high glass half height turnstile has a long service life.





All-around Pedestrian Safety Protection



Triple anti-clamping

With double anti-clamping technologies such as mechanical anti-clamping and anti-collision by advanced electric current detection, high glass half height turnstile can protect pedestrian safety more comprehensively.



Over-force feedback control

When the gate is momentarily subjected to an impact force beyond the safe range, the high glass half height turnstile can be slowly pushed for a certain distance to buffer the impact force on the mechanism and the reverse impact force on pedestrians.



Turnstile opens when power failure

With the independently developedadvanced mechanical structure, the system will automatically unlock the gate when the power is off, and the gate can be manually pushed to open, which is convenient for pedestrian evacuation.



Anti-electric shock

All electric modules are designed to operate under the safety voltage of 24V, and configured with residual current protective device to prevent pedestrian from being injured by electric shocks.



Emergency open

The high glass half height turnstile equips with emergency escape control device, to make the system automatically open the gate to evacuate pedestrian.





Customization



Function
Built-in or external counter
TCP / IP communication function
Appearance Cabinet size, material and surface treatment process etc. of turnstile can be moderately customized.
Lane width The maximum lane width of turnstile is 900mm, and the cabinet length can be increased accordingly
System integration

Integrate with access control system, human body temperature measurement system, ticketing system, time attendance system, visitor system etc.

Integrate with QR code, face, fingerprint, ID/IC card, passport identification system etc.

Integrate with card collection system, and customize card collection device

Integrate with radar system to automatically open the gate when pedestrian approaches, and automatically closes the gate when pedestrian leaves.

Material of the gates Tempered glass / acrylic / polycarbonate/ 304 grade stainless steel, and color can be customized.
