Overview

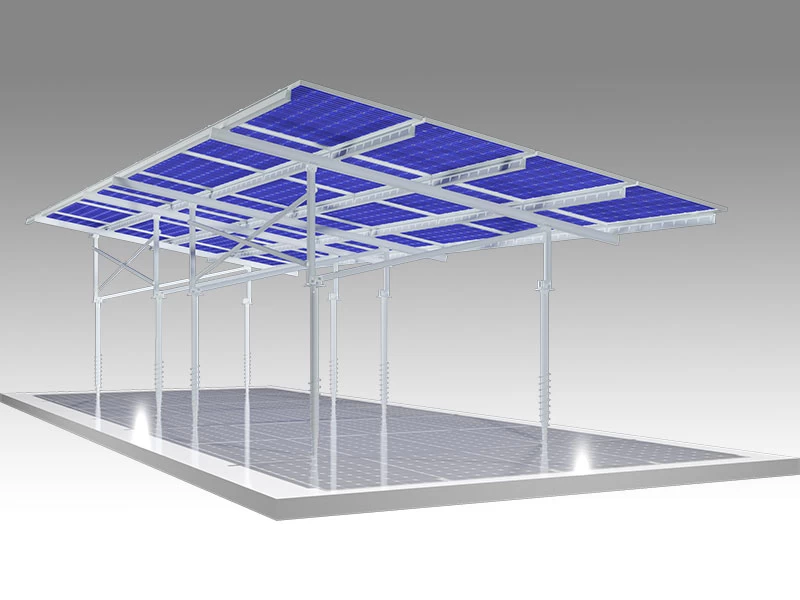

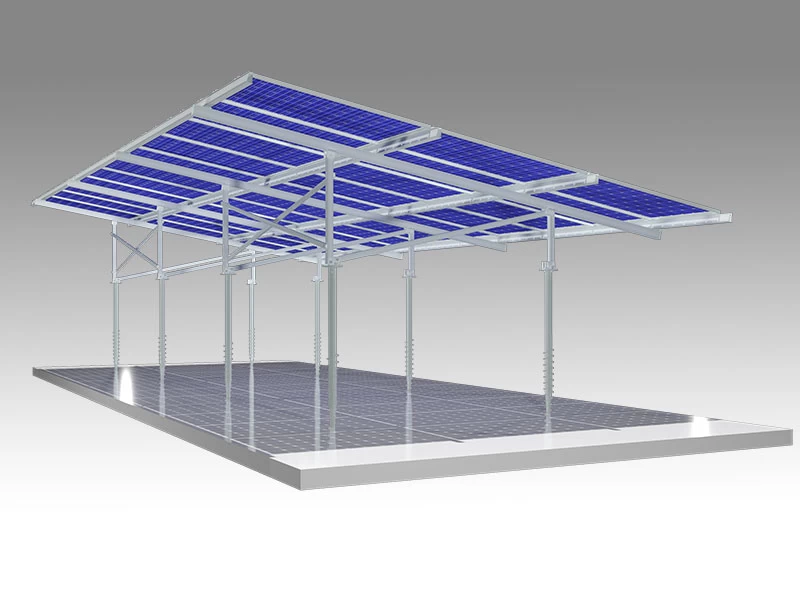

Special mounting structure design for bi-facial solar modules, no shading at the backside with all angles, more than 15% higher power generated.
Features
1.Symmetrical Design of Tilt-in-Nut and Rail Channel
No direction limitation for the nut and rail channel, improving the installation efficiency.
2.No Drill on Portrait Beam
It improves the strength of the system to fix the portrait beam onto the post by special designed clamps, with force at the same direction of the gravity.
3.Pre-assembled Components Save Onsite Installation Time
Solution design case by case, most components pre-assembled in factory, no onsite cut and drill request, saving the onsite installation time and cost.
4.Flexibility and Adjustability
The structure can be adjusted with some tolerance with east-west, west-south and south-north directions, assuring flexible on-site installation to achieve best yield for solar modules.
|
Technical Parameter
|
|
Installation Site
|
Ground
|
|
Foundation
|

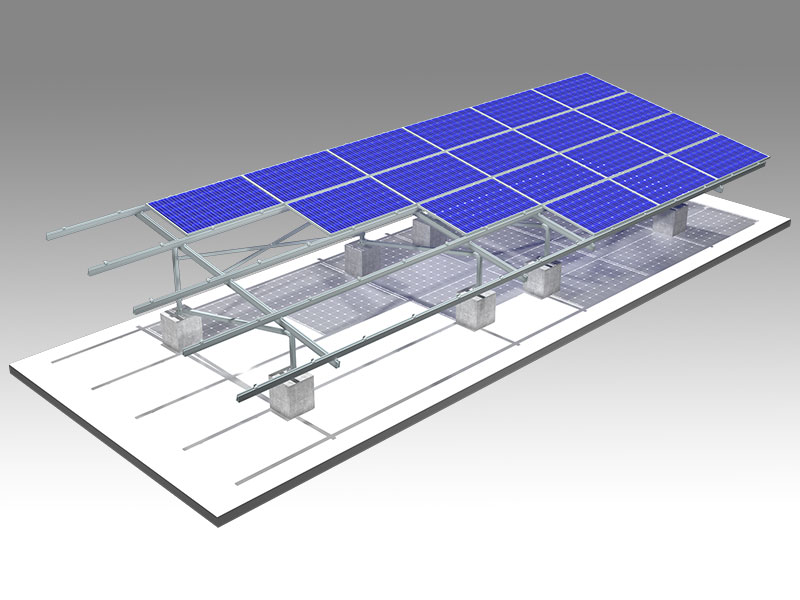

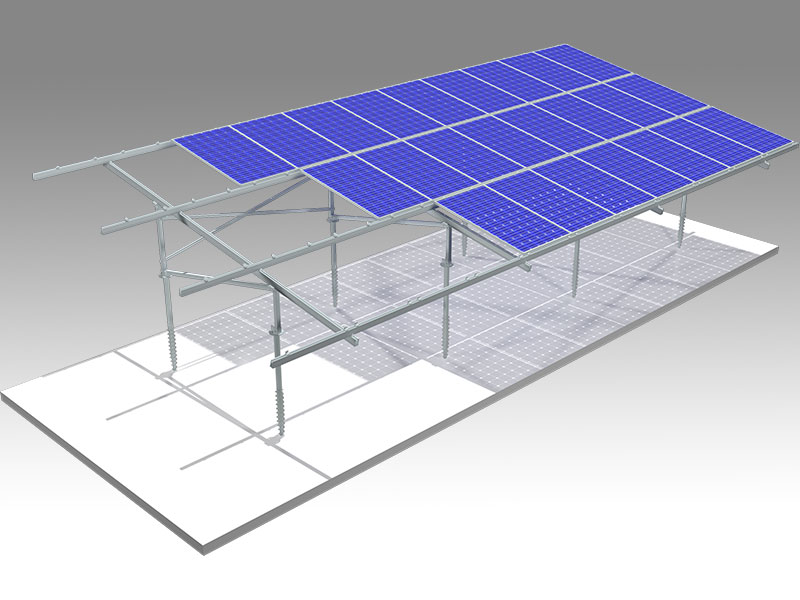

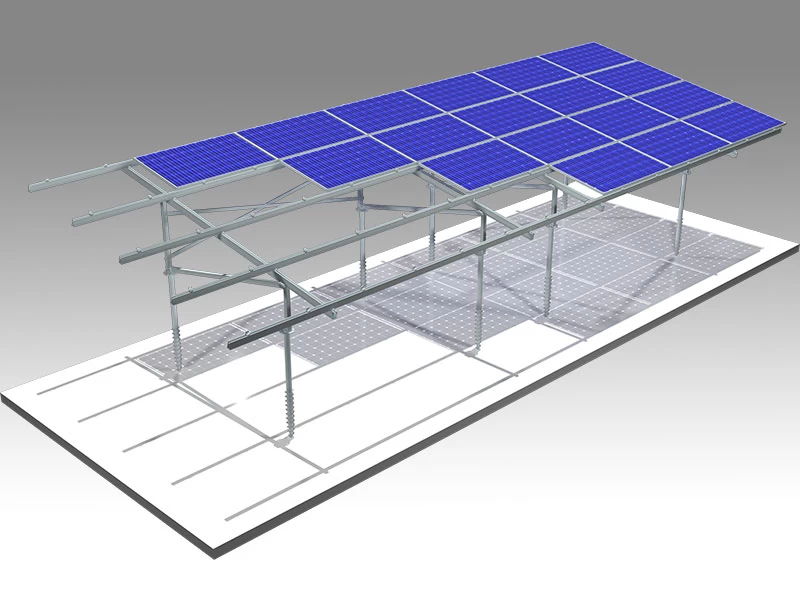

Concrete Foundation , Ground Screw
|
|
Tilt Angle
|
0-60°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/㎡
|
|
Ground Clearance
|
500-2000mm
|
|
Applicable Solar Module
|
Framed or Frameless
|
|
Panel Layout
|
Portrait or Landscape
|
|
Design Standard
|
AS/NZS 1170 , DIN 1055 , JIS C 8955：2017,
|
|
International Building Code IBC 2009,
|
|
California Building Code CBC 2010
|
|
Material
|
Al6005-T5(Anodized)
|
|
Fastener
|
SUS304 &Zinc-Nickel Alloy Electroplated Steel
|
|
Small Components
|
Al6005-T5(Anodized)
|
|
Color
|
Silver or Customized
|
|
Warranty
|
10-Year Warranty
|
Technology Certification
