Ai Power Generator Standards Configuration
• Engine include air, fuel, oil filters, starting motor and charge alternator etc.
• Brushless AC alternator, single bearing, flange connection, with AVR
• Radiator with engine driven fan mounted on skid
• Channel steel base frame, <550KW base 8hrs mounted fuel tank as standard
• Anti-vibration pads between engine/alternator and base frame
• Circuit breaker 3P as standard, 4P optional
• Auto control panel
• Start battery with connecting cable and floating battery charger
Cummins Diesel Engine Specification
|
Engine manufacturer
|
Chongqing Cummins Engine Co., Ltd.
|
|
Engine brand
|
Cummins
|
|
Engine model
|
KTA50-G3
|
|
Engine speed (rpm)
|
1500
|
|
Engine output(kW)
|
|
|
|
Standby power rating
|
1227
|
|
|
Prime power rating
|
1097
|
|
Type
|
4-Cycle, 16V Cylinder
|
|
Aspiration
|
Turbocharged and aftercooled
|
|
Borer * Stroke (mm)
|
159 * 159
|
|
Displacment (litre)
|
50.3
|
|
Compression Ratio
|
13.9:1
|
|
Type Injection System
|
Direct Injection Cummins PT
|
|
Fuel Consumption (litre/hour)
|
|
|
|
100% output power
|
291
|
|
|
75% output power
|
222
|
|
|
50% output power
|
157
|
|
|
25% output power
|
89
|
Stamford Alternator Specification
|
Alternator manufacturer
|
Cummins Generator Technologies(China) Co. Ltd
|
|
Alternator brand
|
Stamford
|
|
Alternator model
|
LVI634G
|
|
Control system
|
PMG
|
|
A.V.R.
|
Included
|
|
Voltage regulation
|
±1%
|
|
Insulation system
|
Class H
|
|
Protection
|
IP23
|
|
Rated power factor
|
0.8
|
|
Winding pitch
|
Two thirds
|
|
Winding leads
|
6
|
|
Frequency (Hz)
|
50
|
|
Voltage (V)
|
400
|
|
Phase
|
3
|
|
Output ratings (kVA/kW)
|
|
|
----------------Cont.H-40°C
|
1250/1000
|
|
----------------Standby-27°C
|
1313/1050
|
|
THF
|
<2%
|
|
TIF
|
<50
|
|
Max. overspeed (Rev/Min)
|
2250
|
|
Bearing
|
Single
|

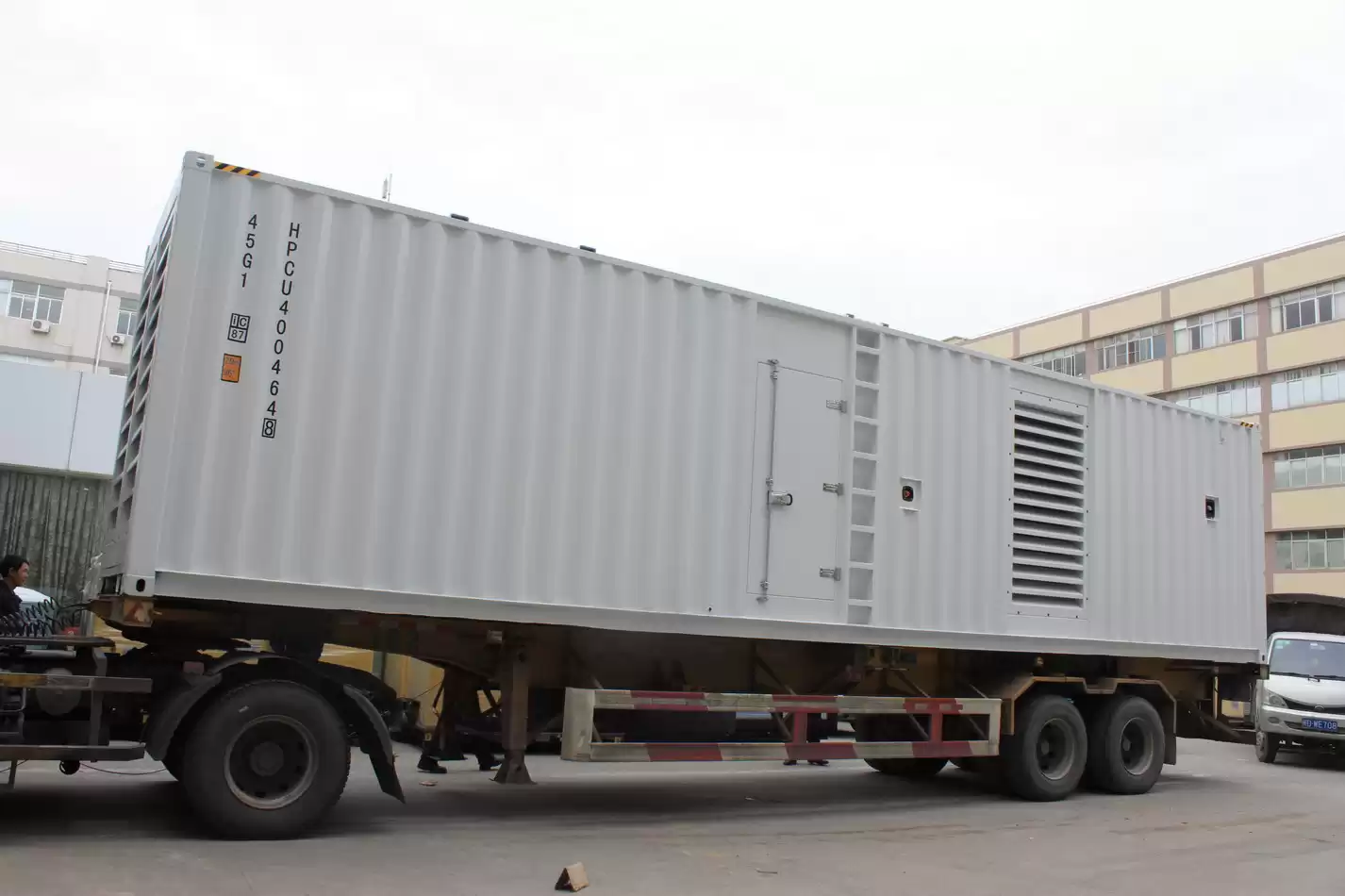

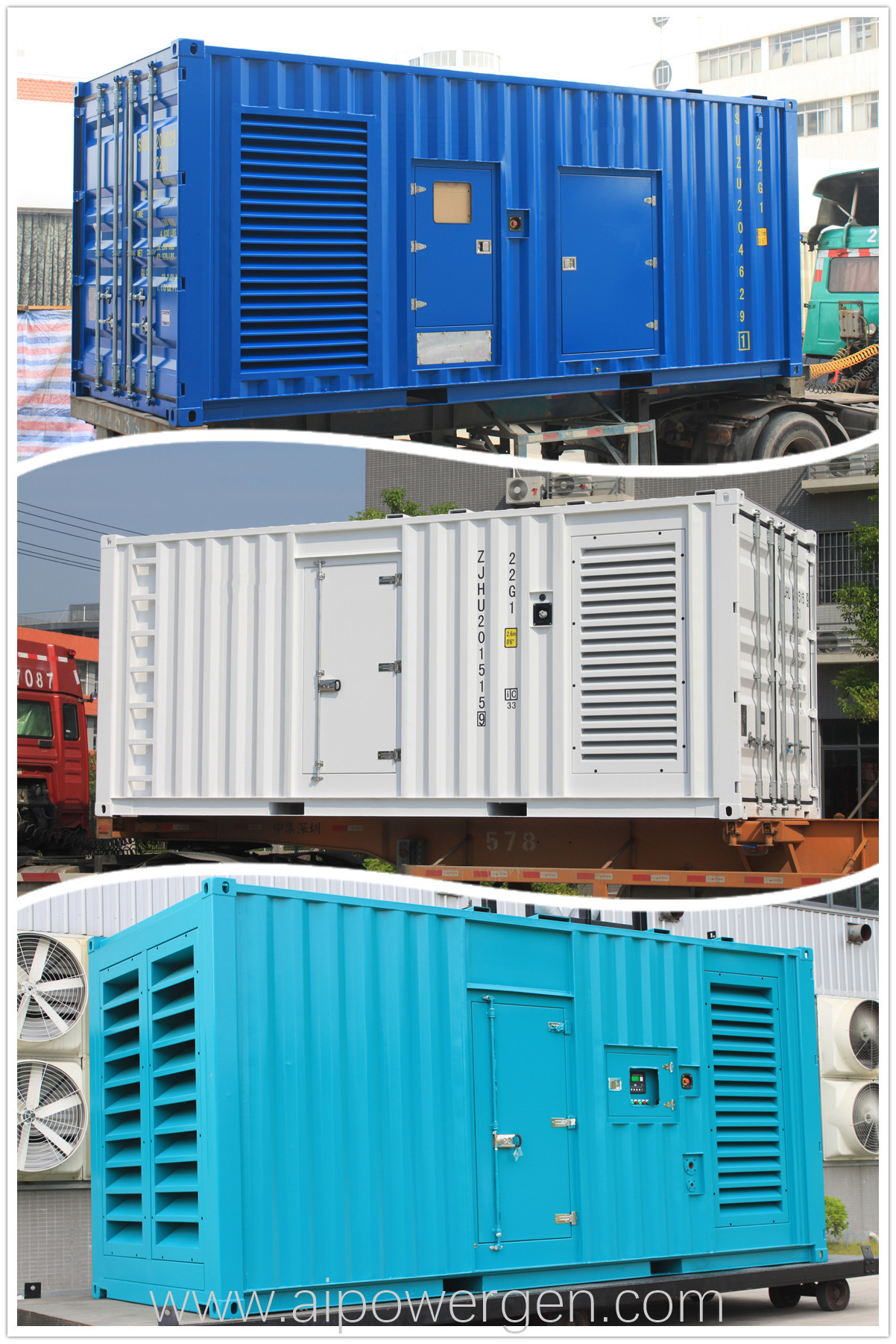

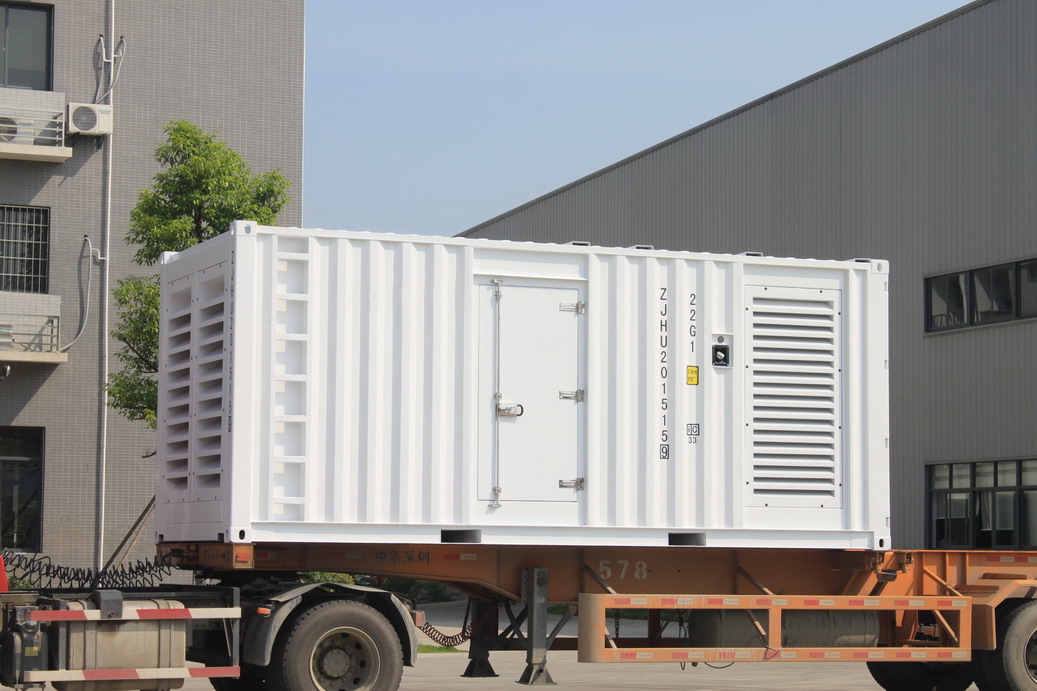

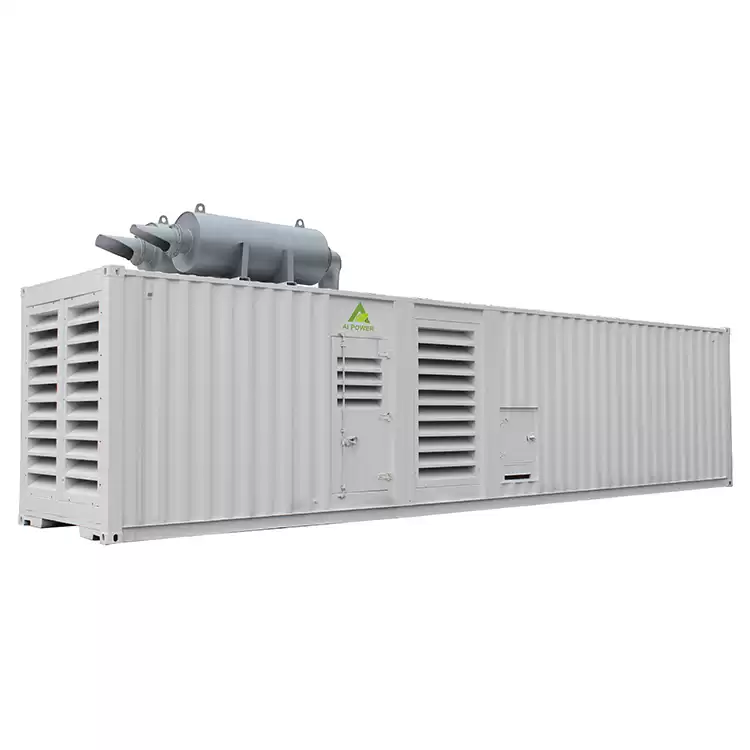

Cummins 1000kw/1250kva Diesel Generator Photos

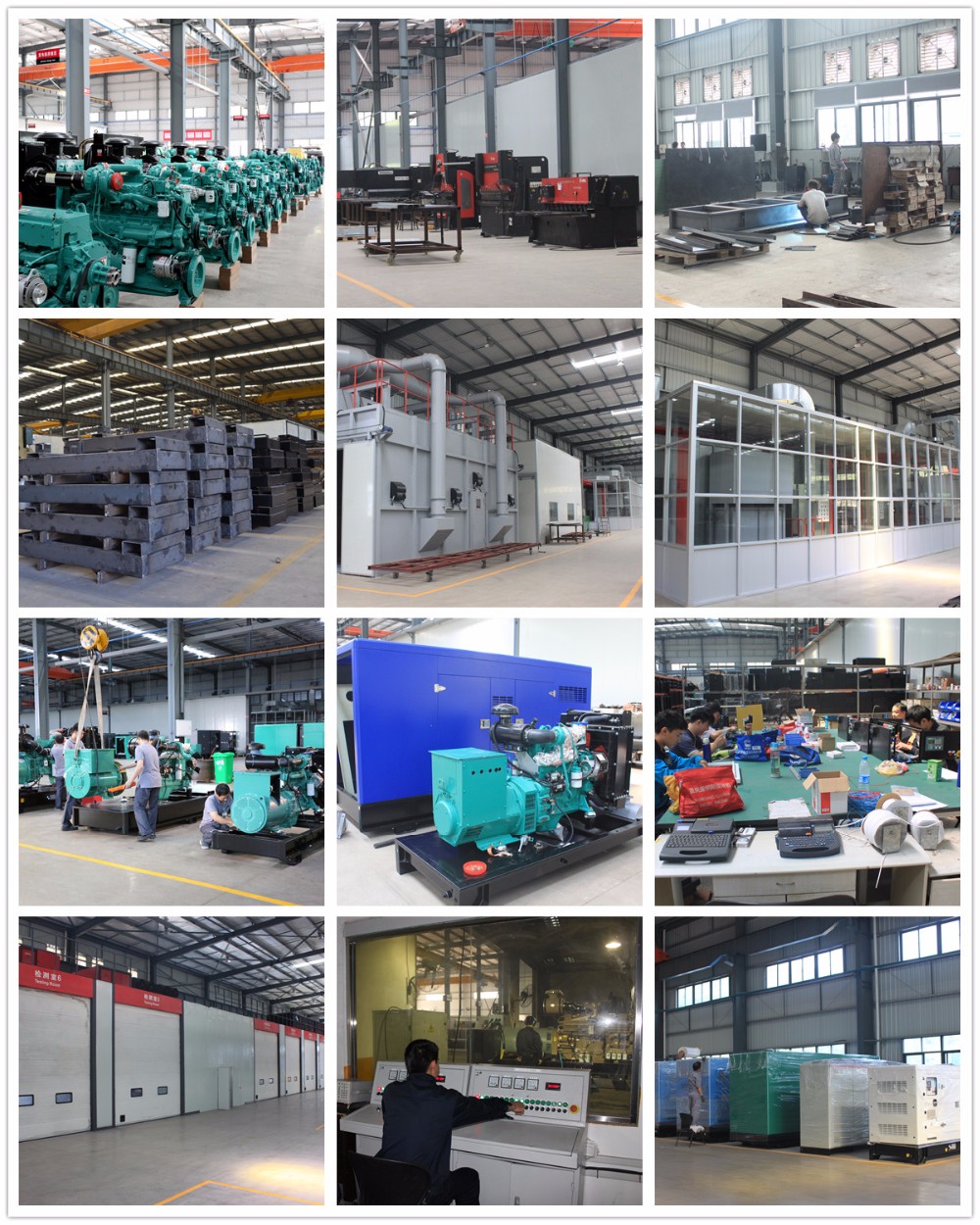

AI POWER Company
