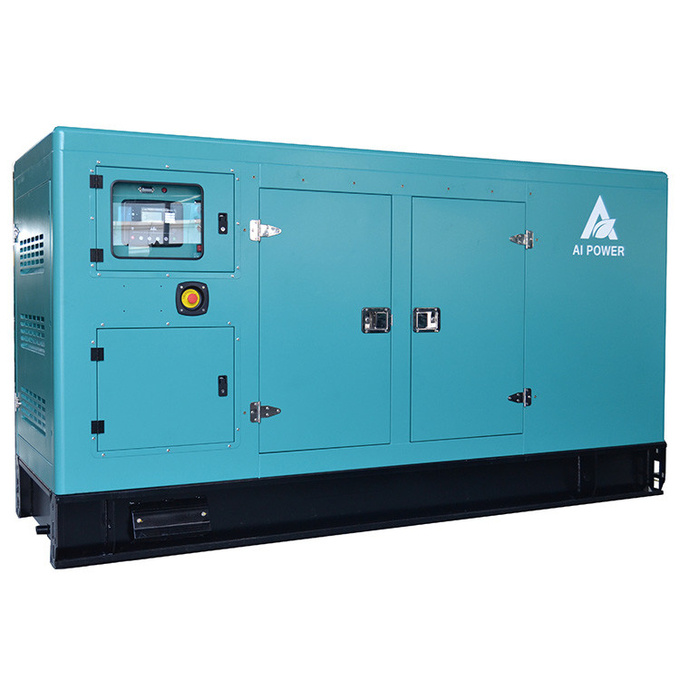

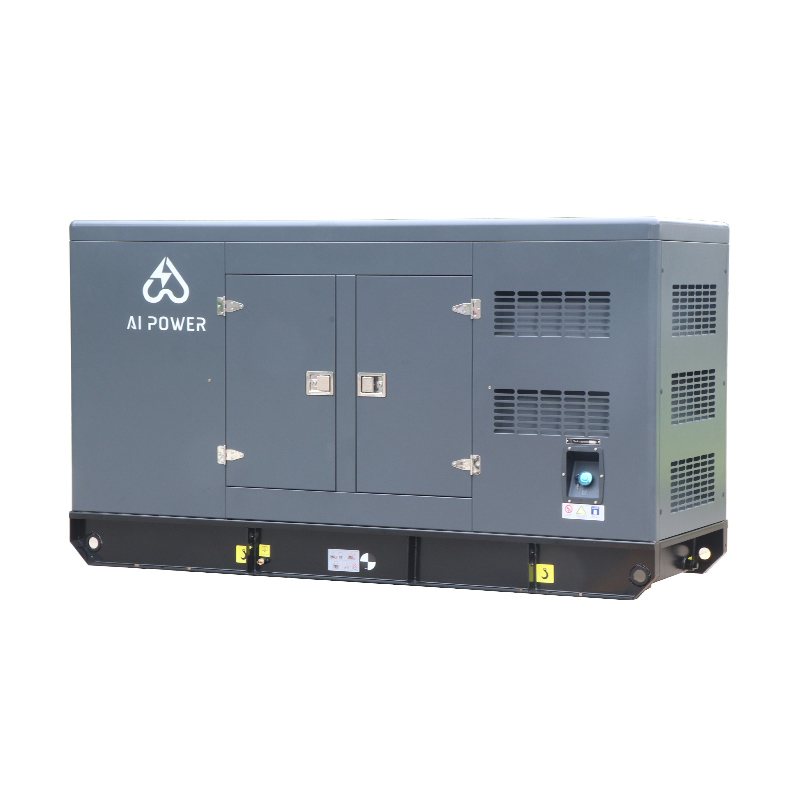

Big Power Chinese 200 kva 160kw Cummins or Perkins Silent Diesel Generator 350 kva Price

200 kva 160kw 350kva Cummins or Perkins Silent Diesel Generator



Product Description

China Good Brand Diesel Generator 200kva 160kw Silent Diesel Generator Set For Sale

Frequency
50HZ
60HZ
Voltage
220/380V, 230/400V, 240/415V
127/220V, 230/380V, 254/440V, 277/480V
Power range
20-400KVA prime
20-400KVA Prime
Engine
Ricardo Kofo N4100, R6105, R6110, 6126, WT13 sereis
Alternator
Copy stamford, bruless, copper
Controller
Smartgen HGM6110, HGM6120
Genset type
open generator, silent genset, container power generator, mobile diesel generator
Option
ATS, synchronization system
GENERAL ENGINE DATA
Engine manufacture
Shanghai Diesel Engine Co., Ltd. (SDEC)
Engine brand
SDEC
Engine model
6HTAA6.5-G23
Engine speed (rpm)
1500
Engine output(kWm)

Standby Power
204
Prime Power
185
Engine Type
4-Cycle, In-line, 6-Cylinder Diesel, water cooled, Turbo charged
Bore x Stroke (mm)
114*144
Displacment (litre)
8.82L
Compression Ratio
18:1
FUEL SYSTEM
Injection pump
Longkou in-line “P” type
Governor
RSV
Fuel Consumption (litre/hour)

25% load
13.4
50% load
22.8
75% load
32.8
100% load
44.1
MECHANISM
Type
Over head valve
Number of valve
Intake 2, exhaust 2 per cylinder
Valve lashes at cold
Intake 0.25mm, Exhaust 0.50mm
ENGINEERING DATA
Heat rejection to coolant
18.6kcal/sec
Heat rejection to intercooler
11.6m3/min
Exhaust system
6 kPa max.
Exhaust gas temp.
600
Alternator manufacturer
Xiamen Ai Power Technology Co., Ltd.
Alternator brand
AI POWER
Alternator model
AI274G
Control system
SELF EXCITED
A.V.R.
Included
Voltage regulation
±1.0%
Insulation system
Class H
Protection
IP23
Rated power factor
0.8
Winding pitch
Two thirds
Winding leads
12
Frequency (Hz)
50
Voltage (V)
400
Phase
3
Output ratings (kVA/kW)

----------------Cont.H-40°C
200/160
----------------Standby-27°C
220/176
THF
<5%
TIF
<50
Max. overspeed (Rev/Min)
2250
Bearing
Single


Supply Scope

• Engine include air, fuel, oil filters, starting motor and charge alternator etc.
• Brushless AC alternator, single bearing, flange connection, with AVR
• Radiator with engine driven fan mounted on skid
• Channel steel base frame, <550KW base 8hrs mounted fuel tank as standard
• Anti-vibration pads between engine/alternator and base frame
• Circuit breaker 3P as standard, 4P optional

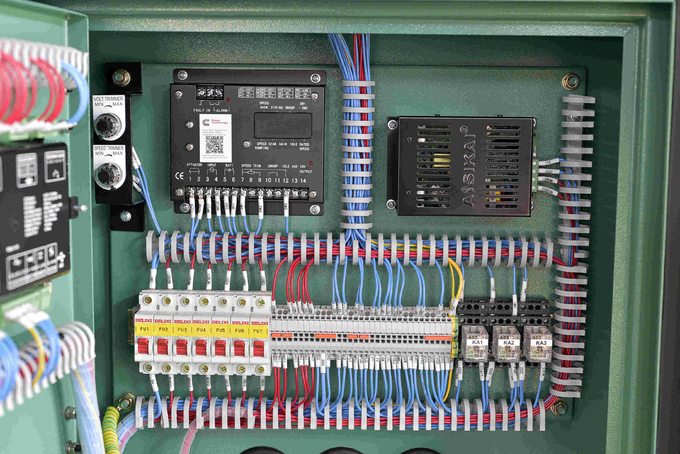

• Auto control panel
• Start battery with connecting cable and floating battery charger
• Flexbile pipe, exhaust elbow, industrial silencer etc.
• Standard tools kit
• Electric drawing, test report ,operation & maintaince manual of generator etc.
•Optional soundproof/Container canopy, ATS cabinet, remote control panel, synchronization panel, movable trailers, heat exchanger, remote horizontal water tank system, external fuel tank, etc

Products Details

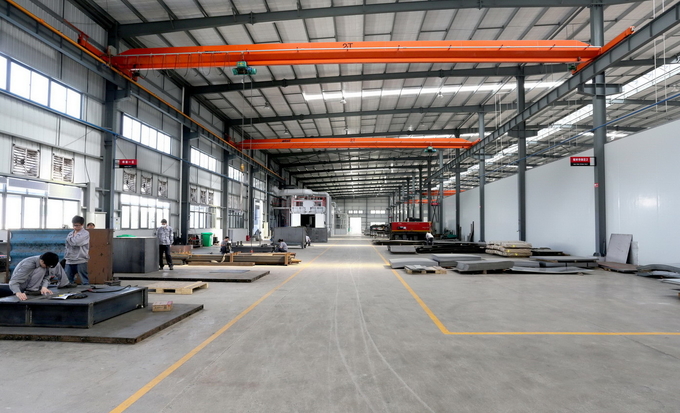

Our factory

AI POWER is the professional manufacturer of power generator, light tower and air compressor in China. We provides a complete line of generators for commercial,industrial and residential application.We specialize in providing a wide range of well known and trusted brands of diesel generators, supplying generators from 5kw to 2000kw at competitive prices.
Besides generators, we also product the refere product incldue lighting towers and air compressor. At the same time, we also provide the reference electrical products, include ATS, Synchronization system & switchgear.
