Biometric Access Control System with Wiegand Door Lock Connection

MYM7



Product Name: Biometric Access Control System with Wiegand Door Lock Connection


Description:

MYM7 Fingerprint RFID Door Entry Systems is a professional door access control system developed for small to medium size businesses for security. It integrates fingerprint identification, RFID, attendance tracking and security access control functions etc., with fashionable and elegant appearance and reliable quality. INJES MYM7 Building Security Access Control Systems has a high quality musical buzzer, multiple language display, user friendly interface, and a powerful communication function suitable for data management in various environments. It comes with functional management software, compatible with various types of database. It supports time zone and group access control for high security level. It is versatile, convenient and multi-functional.

Features:

.Elegant ergonomic Casing design
.INJES core algorithm platform of high performance and reliability
.Support identification from different angles
.Support multiple languages display. Suitable for local market
.Direct lock control to open door, door open sensor
.2.8 inch color TFT screen,and 9 Digit User ID
.RS485,USB Disk and TCP/IP Communication
.Optional MF card, RFID card module
.Clients’ exclusive advertising logo
.Accept firmware or software customization on basis of clients’ requirements

Specifications:

Fingerprint Capacity

1000 (Optional 3000)

Transaction Capacity

100,000

Hardware Platform

BIO307

Sensor

Scratch-proof Optical Sensor

Display

2.8 inch TFT Color LCD Screen

Communication

TCP/IP,USB-host, RS485

Standard Functions

Fingerprint, ID card,password,3rd party electric lock, door sensor,
exit button, alarm, Door
 Bell,Wiegand output

Optional Functions

MF card, Power supply,

FAR

0.0001%

FRR

0.01%

Speed

 <1s

Verification mode

1:1,1:N

Power Supply

12V 3A

Operating Temperature

0 °C- 45 °C

Operating Humidity

20%-80%

Dimension

L190*W92*H33(mm)

Gross Weight

1.20 kg

Introduction:

door access

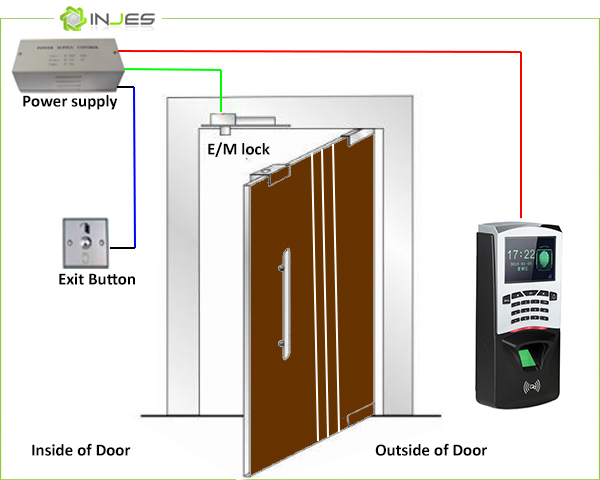

Configuration:

door access control system

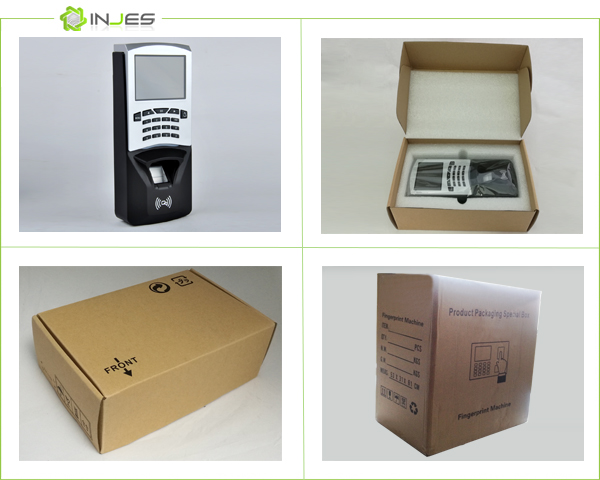

Package:
