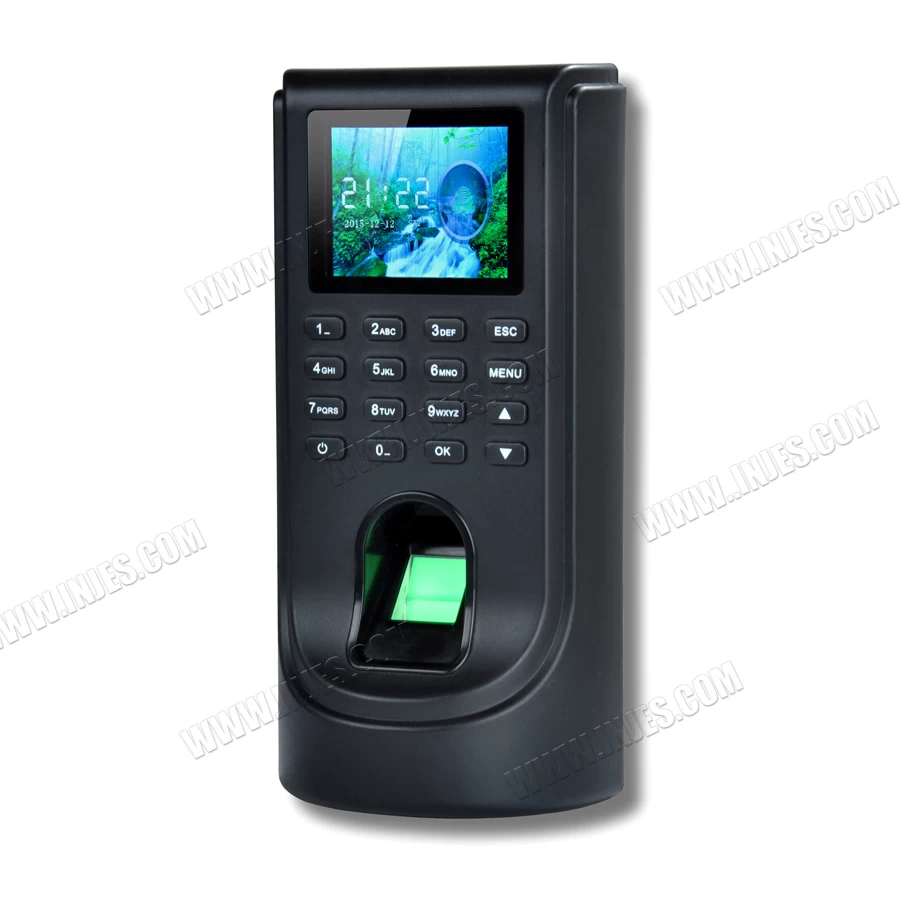

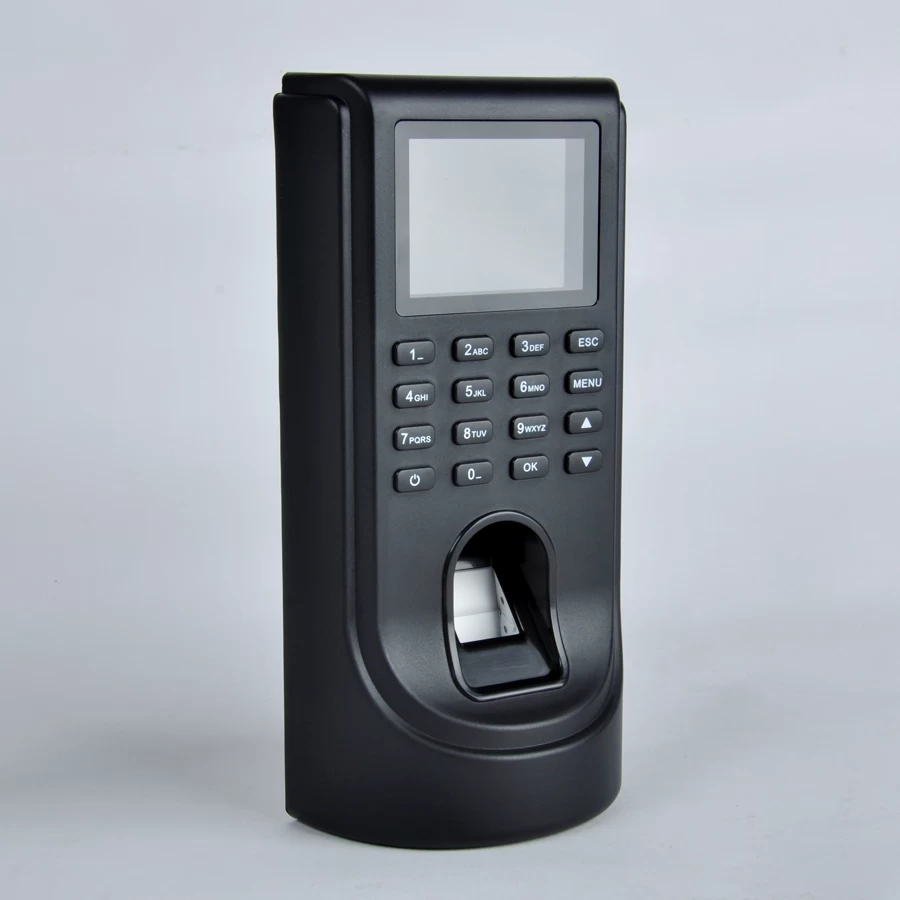

Product Name: Fingerprint Access Control Devices with Ethernet Software
Description:
MYM5 is a basic biometric fingerprint reader for door access control systems application. Offering unparalleled performance by using an advanced algorithm for reliability, precision and excellent matching speed. It features the fastest commercial-based fingerprint matching algorithm, high-image quality infrared detection fingerprint sensor. The device offers flexibility to be installed standalone or with any third party access controller or access control panels,which support standard Wiegand signal. TCP/IP and RS485 are available that the access control equipment MYA5 can be used in different network environment.
Features:
．Color Display and Wiegand out port
．Support Capacity 1,000 templates and 100,000 transactions
．Support Fingerprint and/or Card Authentication

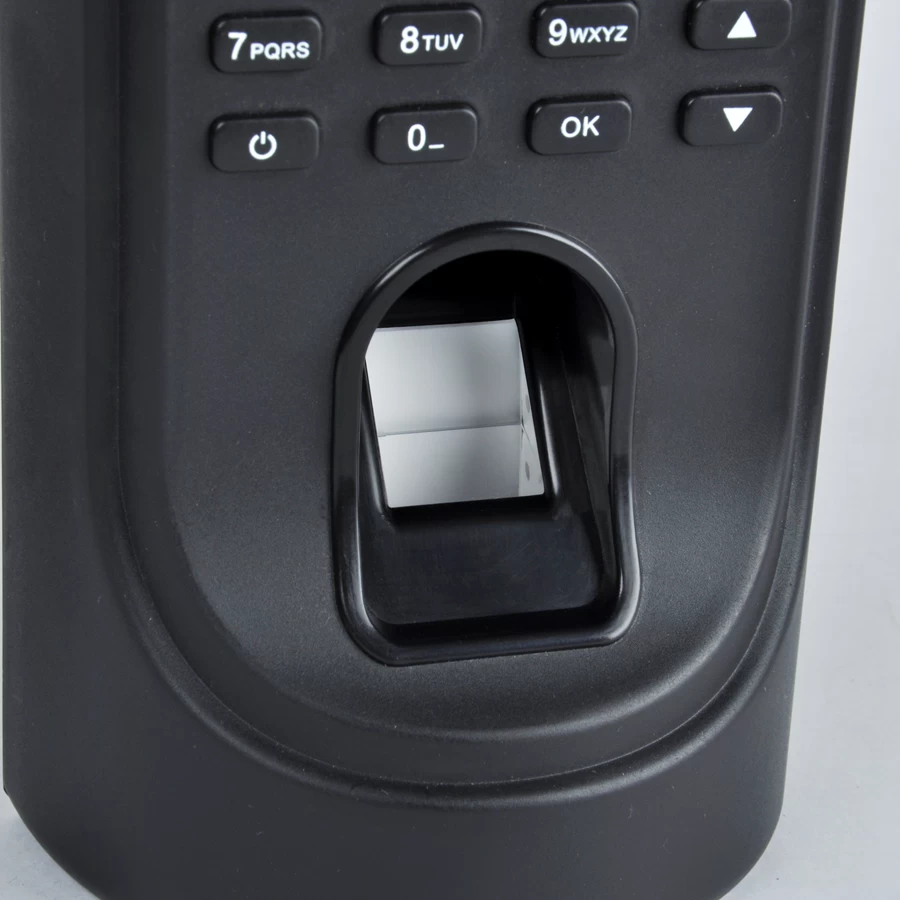

．Fingerprint reader with durable and highly accurate optical sensor
．1 touch a-second user recognition
．Optional integrated RFID / MF card reader
．Built-in Serial and Ethernet ports
．Tamper-proofs switch and alarm outputs
．Audio Visual indications for acceptance and rejection of valid/invalid fingers
．Multi-languages menu and audio
Specifications:
Fingerprint Capacity
|
1000
|
Transaction Capacity
|
100,000
|
Hardware Platform
|
BIO307
|
Sensor
|
Scratch-proof Optical Sensor
|
Display
|
2.4 inch TFT Color LCD Screen
|
Communication
|

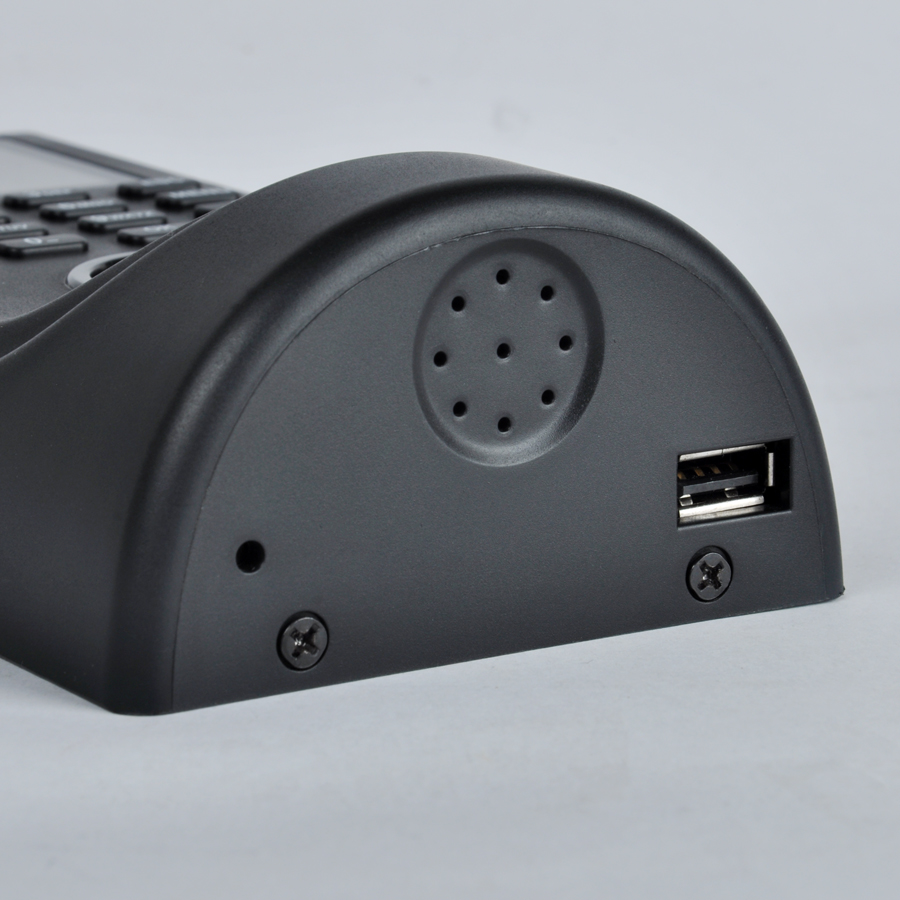

TCP/IP,USB-host, RS485
|
Standard Functions
|
Fingerprint, ID card,password,3rd party electric lock, door sensor,
exit button, alarm, Door Bell,Wiegand output
|
Optional Functions
|
MF card, Power supply,
|
FAR
|
0.0001%
|
FRR
|
0.01%
|
Speed
|
<1s
|
Verification mode
|
1:1,1:N
|
Power Supply
|
12V 3A
|
Operating Temperature
|
0 °C- 45 °C
|
Operating Humidity
|
20%-80%
|
Dimension
|
L190*W92*H33(mm)
|
Gross Weight
|
1.20 kg
|

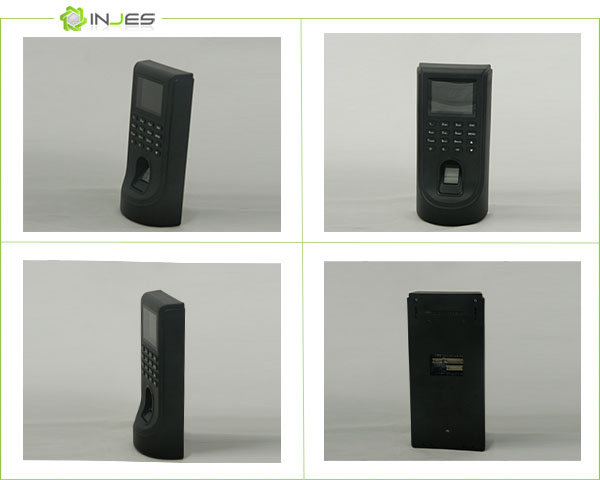

Introduction:

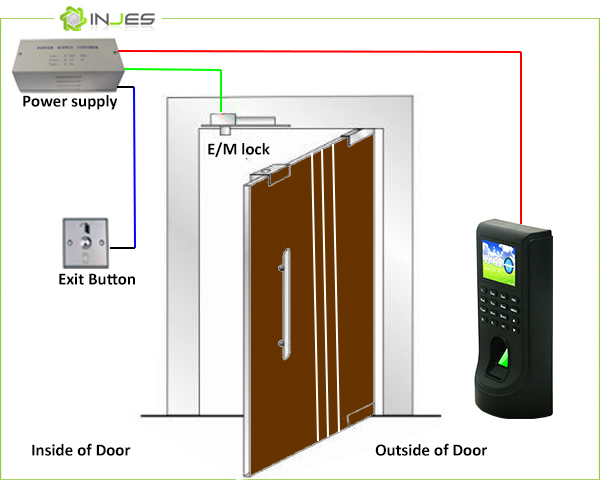

Configuration:

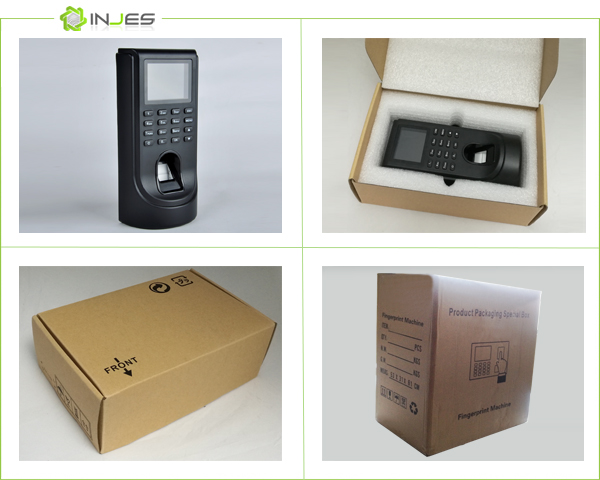

Package:
