Product Description

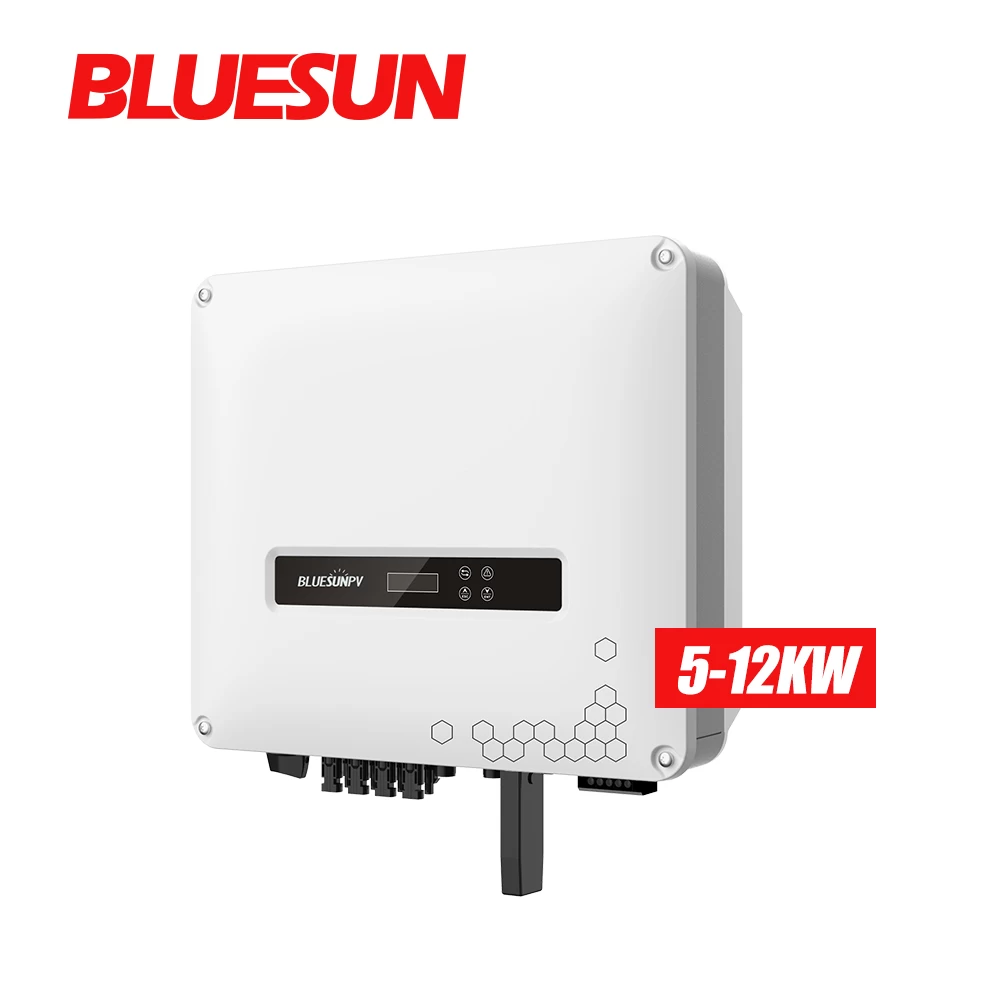

Recommended product: BSMBSM5K/6K/8K/12K-B This type of inverter is well protected and suitable for outdoor use and is easy to install.
Smart On Grid Inverter

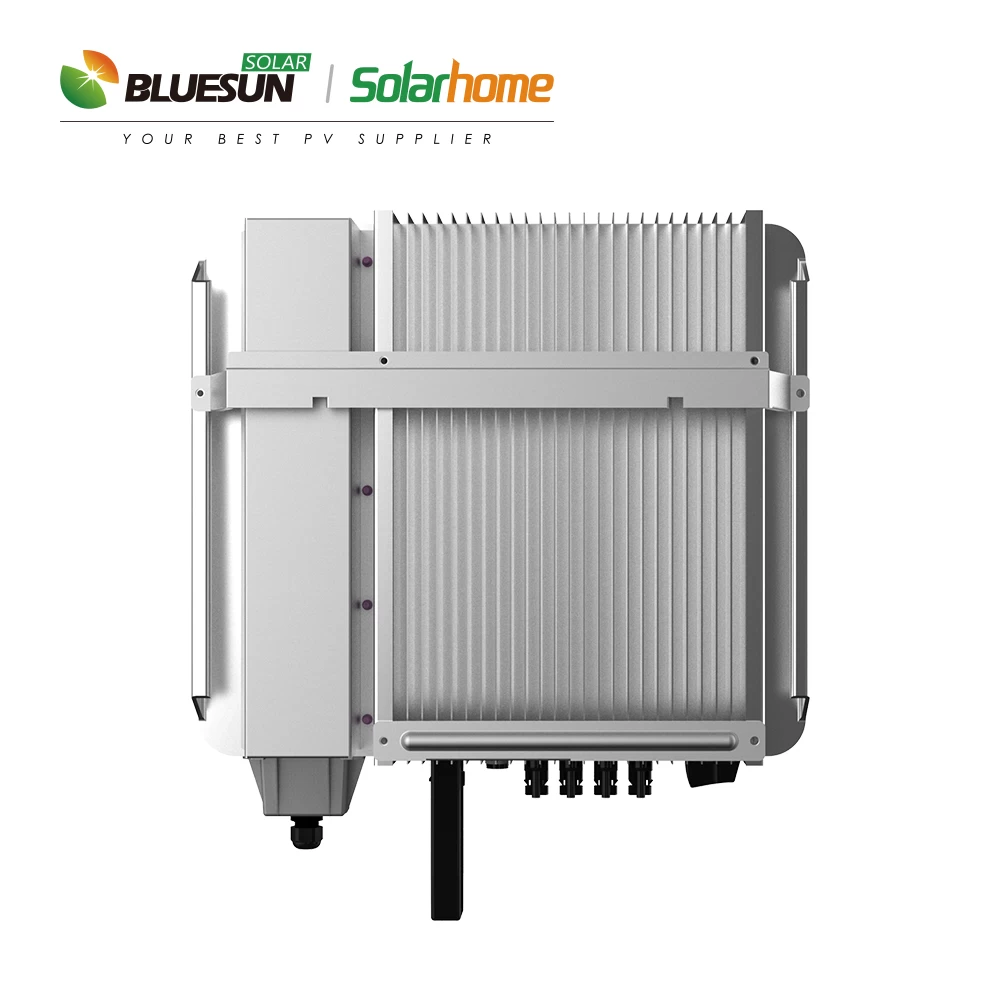

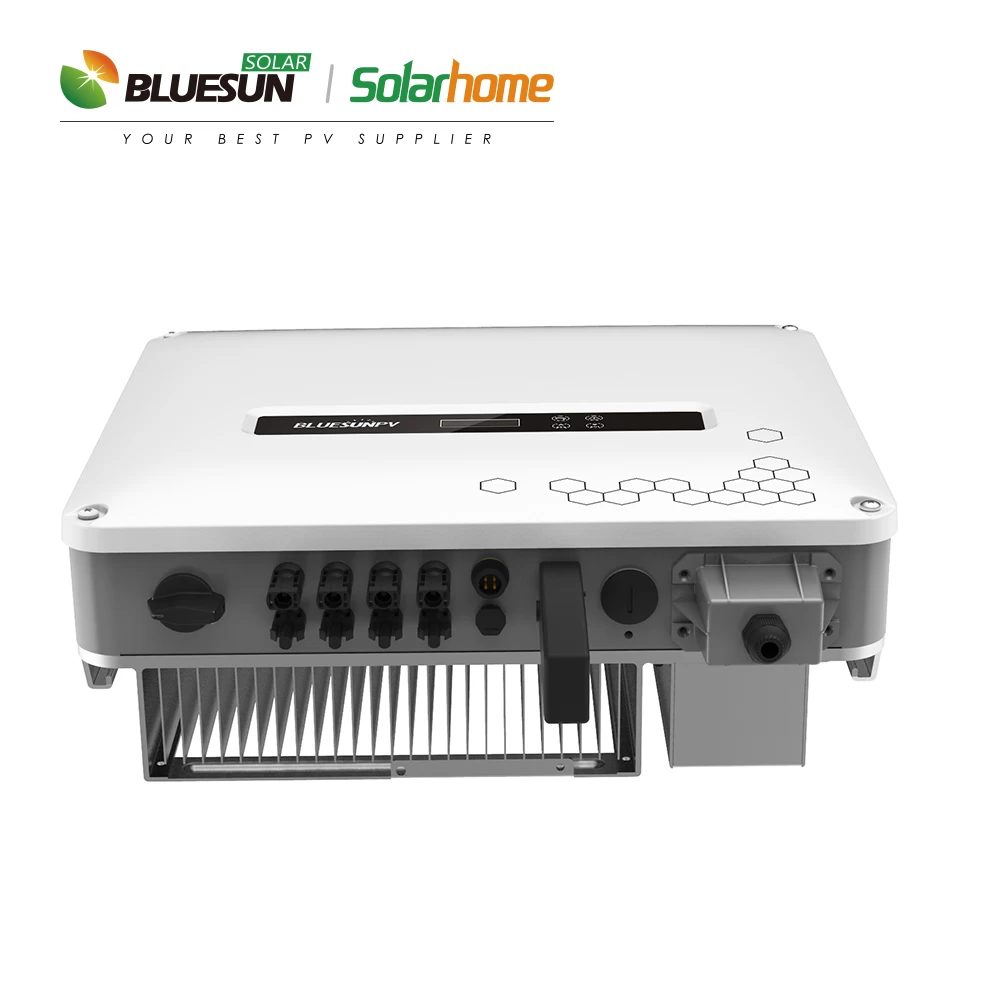

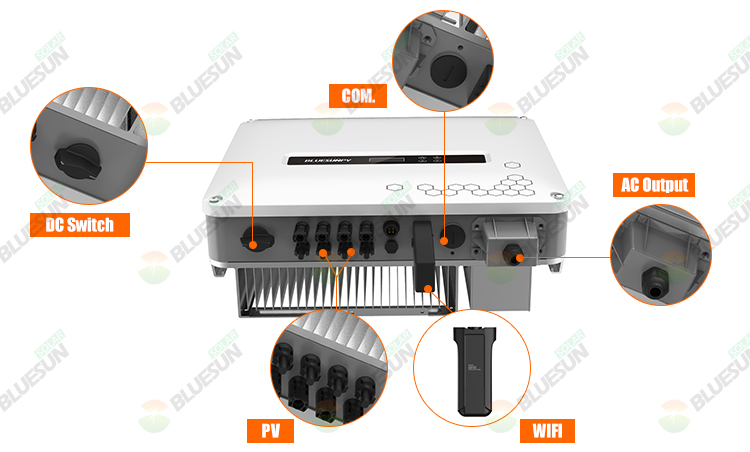

Detailed Images
Technical Parameters
|
Items
|
BSM5K-B
|
BSM6K-B
|
BSM8K-B
|
BSM10K-B
|
BSM12K-B
|
|
DC Input
|
|
Max. PV Input Voltage
|
1000Vdc
|
|
Rated PV voltage
|
600Vdc
|
|
Max. PV Input Current
|
22A(2×11A)
|
22A(2×11A)
|
33A(3×11A)
|
33A(3×11A)
|
22A(2×11A)
|
|
No. of MPPTs
|
2
|
2
|
2
|
2
|
2
|
|
No.of PV strings per MPPT
|
1月1日
|
1月1日
|
2月1日
|
2月1日
|
1月1日
|
|
MPPT voltage range
|
200Vdc~950Vdc
|
|
Starting voltage
|
200Vdc
|
|
AC Output
|
|
Rated AC output power
|
5kW
|
6kW
|
8kW
|
10kW
|
12kW
|
|
Max. output power
|
5.5kVA
|
6.6kVA
|
8.8kVA
|
11kVA
|
13.2kVA
|
|
Rated AC output voltage
|
380/400/415Vac
|
|
Rated output current
|
7.3A
|
8.7A
|
11.6A
|
14.5A
|
17.4A
|
|
Max. output current
|
8.0A
|
9.6A
|
12.8A
|
15.9A
|
19.1A
|
|
Rated grid frequency
|
50Hz/60Hz
|
|
Grid frequency range
|
45~55Hz/55~65Hz
|
|
Power factor
|
45~55Hz/55~65Hz
|
|
Adjustable power factor
|
0.8 (leading)-0.8 (lagging)
|
|
THDi
|
<3% (rated power)
|
|
Efficiency
|
|
Max. efficiency
|
98.50%
|
|
European efficiency
|
98.00%
|
|
General
|
|
Dimensions (W×H×D)
|
480×420×180mm
|
|
Weight
|
23kg
|
|
IP grade
|
<30dB
|
|
Noise level
|
IP65
|
|
Self-consumption at night
|
<1W
|
|
Cooling type
|
Natural cooling
|
|
Altitude
|
4000m (>3000m derating)
|
|
Operating temperature
|
-25ºC~+60ºC(>45ºC derating)
|
|
Relative humidity
|
0~95% (Non-condensation)
|
|
Display
|
LCD+LED
|
|
Communication
|
RS485/WiFi/GPRS/DRM(Australia)
|
|
DC terminal
|
MC4 Terminal
|
|
AC terminal
|
OT Terminal
|
|
Installation method
|
Wall-mounted
|
|
Standard
|
EN62109-1, EN62109-2 NB/T32004, AS3100, AS4777, EN 61000-6-2, EN 61000-6-3, IEC 62116:2014 ,IEC 61727:2004 ,IEC 60068-2-1:2007
|
|
,IEC 60068-2-2:2007 ,IEC 60068-2-14:2009 ,IEC 60068-2-30:2005
|
