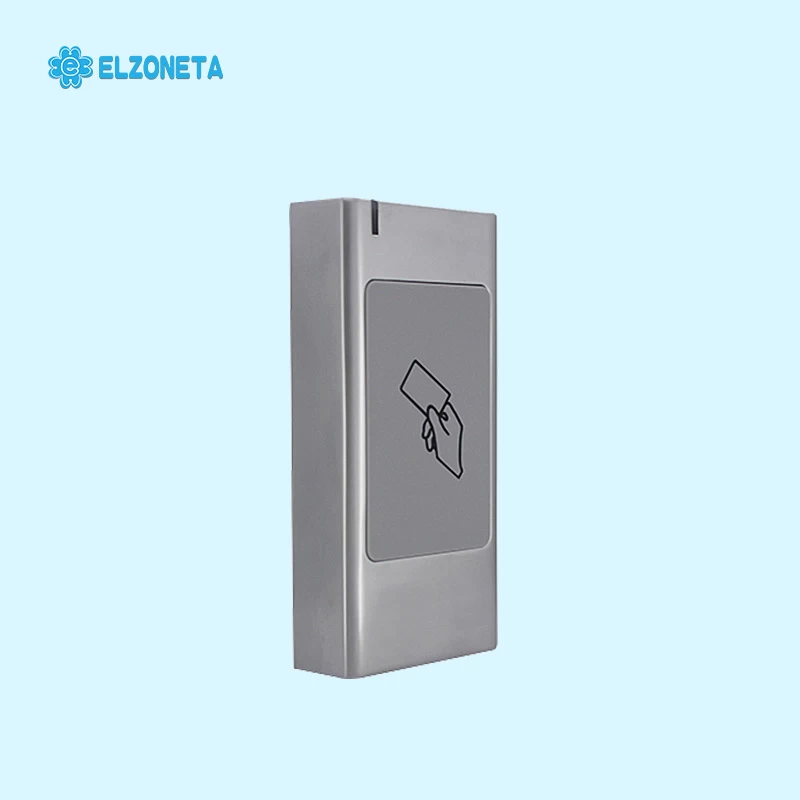

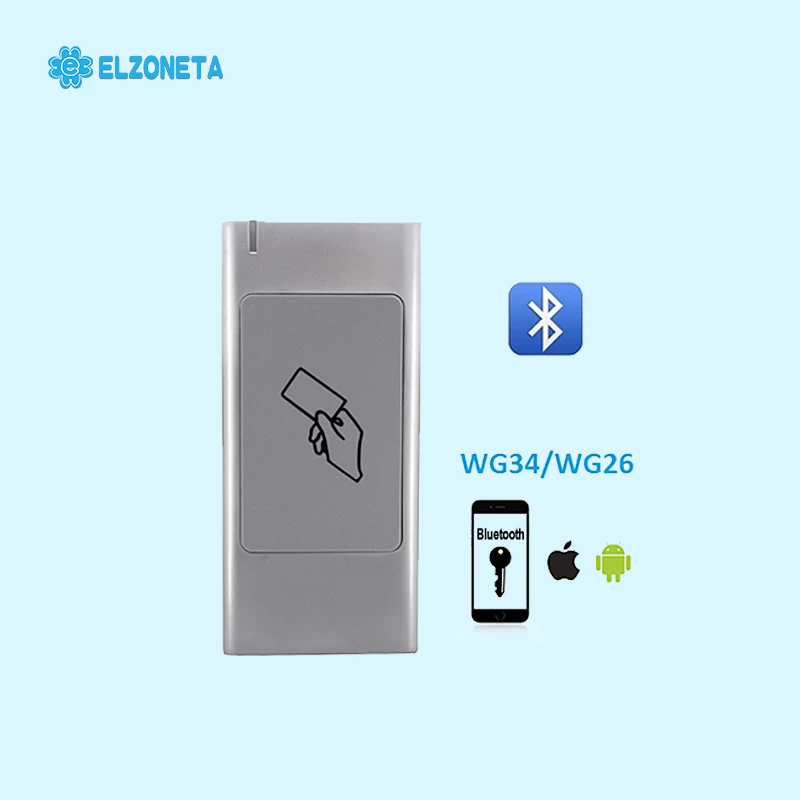

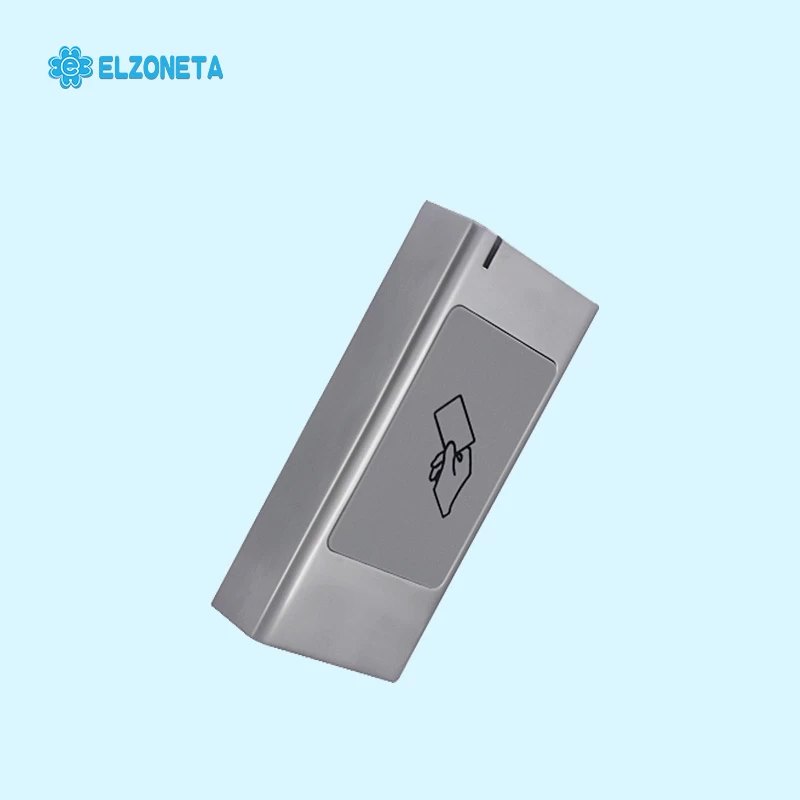

EC-ACS-BWR01 Bluetooth Wiegand Reader
What is Wiegand?
The Wiegand agreement is a globally harmonized standard and a communication protocol developed by Motorola. It is suitable for many features relating to card readers and cards for access control systems. It has many formats, the standard 26-bit should be the most commonly used format. In addition, there are 34-bit, 37-bit and other formats. The standard 26-bit format is an open format, which means anyone can buy a specific format HID card, and these specific format is publicly available. The 26-Bit format is a widely used industry standard and is open to all HID users. Almost all access control systems accept the standard 26-bit format.
Features:
• Metal case, anti-vandal
• IP66 waterproof
• Wiegand 26bits/34bits output
• 2 ways to open the door: card or mobile phone
• Card type: 13.56MHz Mifare card (BWR01 BT MF) or 125KHz EM Card (BWR01 BT EM)
• Support opening the door through Bluetooth(version: 4.0 above), APP supports iOS7.0 above, Android 4.3 above
• Support Super Master / Master sending Remote E-key to others
• Wiegand output format: card number
Specification:
|
Model
|
BWR01 BT MF
|
BWR01 BT EM
|
|
Bluetooth
Range
Reaction
|
Bluetooth Version:4.0 Above
<30m (relate to environment)
<2seconds
|
|
Mobile
|
iOS7.0 above, Android 4.3 above
|
|
Operation Voltage
|
12V DC
|
|
Standby Current
|
<50mA
|
|
Frequency
|
13.56MHz
|
125KHz
|
|
Card Type
|
Mifare card
|
EM card
|
|
Card Reading Distance
|
2~6cm
|
|
Output Format
|
34 bits Wiegand (default)
26 bits available upon request
|
|
Operating Temperature
|
-20 oC ~ 60 oC (-4 oF ~ 140 oF)
|
|
Operating Humidity
|
0% to 98% RH
|
|
Index of Protection
|
IP66
|
|
Physical
Dimension
Net Weight
Shipment Weight
|
Zinc-Alloy Enclosure
10.3L X 4.8W X 1.9 H(cm)
260g
300g
|
