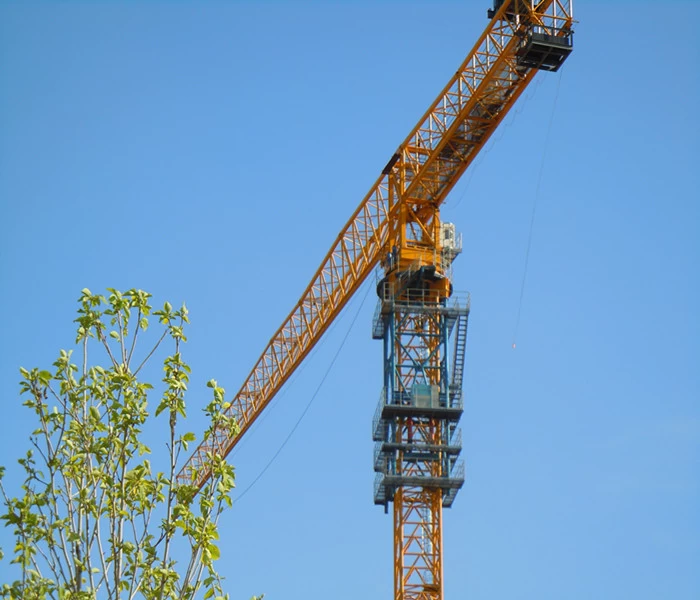

Boom Length 60m 8t QTZ100P(6010) Flat Head Tower Crane
1. 8t load/hydraulic self-erecting/8t flat top tower crane
2. China tower crane manufacturers
3.Quality Certification of ISO9001-2008
4.leading and advanced in China
5.high quality/high working efficiency/favorable price
loading capacity trade information---8t topless tower crane
| Radius(m)
|
2.0-12.68
|
14
|
16
|
18
|
20
|
22.5
|
24
|
28
|
30
|
32
|
34
|
36
|
38
|
40
|
44
|
46
|
50
|
52
|
56
|
58
|
60
|
| a=2
|
4.00
|
3.94
|
3.29
|
3.05
|
2.93
|
2.62
|
2.46
|
2.30
|
2.15
|
1.90
|
1.69
|
1.56
|
1.42
|
1.30
|
1.30
|
1.0
|
| a=4
|
8
|
7.3
|
6.09
|
5.3
|
4.67
|
4
|
3.74
|
3.09
|
2.83
|
2.60
|
2.40
|
2.23
|
2.07
|
1.93
|
1.68
|
1.58
|
1.39
|
1.31
|
1.15
|
1.05
|
0.9
|
Mechanism specifications---8t flat head tower crane 6010 | The lifting moment
|
800KN.M
|
| The max loading capacity
|
8t
|
| The jib length
|
60m
|
| The trolleying radius
|
2-60(m)
|
| The tip load
|
1.5t
|
| Lifting height
|
Stationary
|
45m
|
| Attached
|
151.2m
|
| Hoisting
|
2 fall
|
4 fall
|
24/24/5.4 (KW)
|
| m/min
|
80
|
40
|
10
|
40
|
20
|
5
|
| T
|
2
|
4
|
4
|
4
|
8
|
8
|
| Trolleying
|
40/20 m/min
|
3.3/2.2(KW)
|
| Slewing
|
0.62 r/min
|
3.7*2(KW)
|
| Climbing
|
0.6 m/min
|
7.5KW
|
| Main supply
|
~380V 50HZ/440V 60HZ
|
| Necessary electric power
|
42.2 KW
|
| MOQ
|
1 set, the more you buy, the cheaper it is
|
| Main chord
|
135*12(mm)
|
| Mast section
|
1.8*1.8*2.8(m)
|
| Material
|
Q345B manganese steel
|
| Payment terms
|
30% T/T in advance, 70% balance payment before shipment date.
|
| Delivery time
|
Within 20 days after receiving the customer’s 30% T/T advanced payment.
|
| Abroad markets
|
The Middle East Regions, Southeast Asia, Africa, Russia, etc
|
| Package
|
Nude in 40” HQ container (4*40”/8*40” HQ containers for the stationary height (45m) of (chip/standard mast section) the QTZ80P (6010) tower crane.)
|
| Certificate
|
ISO9001
|
| Warranty
|
12 months from the bill date.
|
| Trade term
|
EXW, FOB(Qingdao), CIF
|
| After-sales service
|
Engineer is ready to install, test and maintain the tower cr
|
Why choose us
1.Cooperative professional tower crane manufactures in China
2.Exported to more than 30 countries with ISO9001&CE Certifications
3.Hydraulic self-climbing mechanism
4.Variable-frequency slewing mechanism
5.Varialbe-speed frequency PLC control System
6.Operation data display screen
7.Various safety devices
8.Safety monitoring system (Black Box)
As a professional exporter,our target is to serve worldwide clients with high-quality products, great-reliability, devoted responsibility,professional services and honorable credibility to meet customers’ requirements in all aspects. We will supply you 24 hours a day and 7 days a week after-sale services.
