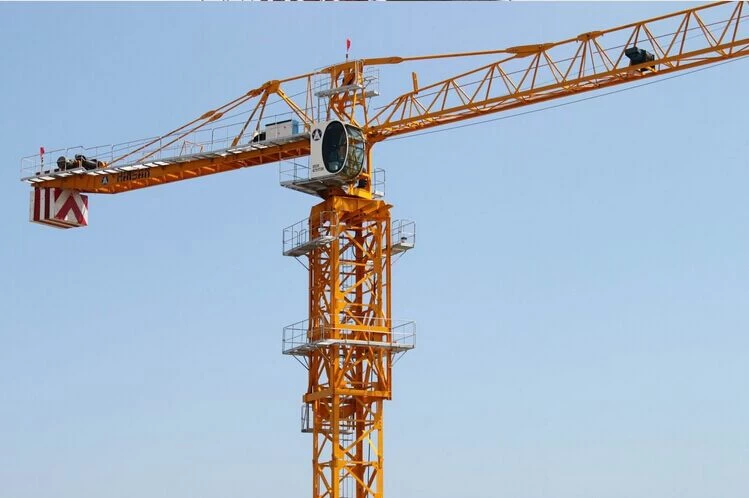

QTZ100P(6010)---China 8t Self-erecting QTZ100P(6010) Flat-head Tower Crane
1.Flat top tower crane/hydraulic lifting tower crane/flat head tower crane/topless construction tower crane
2. 8t max load, 60m working radius with tip load 1.0t.
3. China-made high quality tower crane, China good tower crane manufacturers with best price.
4. high efficiency, CE, ISO, GOST certificates, oversea service available
| Main Technical Parameters of QTZ100P (6010) Tower Crane
|
| Basic height
|
45m
|
| Maximum height
|
151m
|
| Jib length
|
60m
|
| Maximum lifting weight
|
8t
|
| Main chord
|
Q345B manganese steel 135*135*12
|
| Festival standard specifications
|
1.8*1.8*2.8
|
Loading Capacity
| Jib length (m)
|
2.0~12.68
|
14
|
16
|
18
|
20
|
21
|
22.5
|
24
|
26
|
28
|
30
|
32
|
| Load
|
a=4
|
8
|
7.3
|
6.09
|
5.3
|
4.67
|
4.4
|
4
|
3.74
|
3.39
|
3.09
|
2.83
|
2.60
|
| a=2
|
4.00
|
3.94
|
3.59
|
3.29
|
3.05
|
2.93
|
| Jib length (m)
|
34
|
35
|
36
|
38
|
40
|
42
|
44
|
46
|
48
|
50
|
52
|
56
|
58
|
60
|
| Load
|
a=4
|
2.40
|
2.31
|
2.23
|
2.07
|
1.93
|
1.80
|
1.68
|
1.58
|
1.48
|
1.39
|
1.31
|
1.15
|
1.05
|
0.9
|
| a=2
|
2.62
|
2.53
|
2.46
|
2.30
|
2.15
|
2.00
|
1.90
|
1.69
|
1.63
|
1.56
|
1.42
|
1.30
|
1.30
|
1.0
|
Mechanism Specification
| Mechanism specification
|
a=2
|
a=4
|
kw
|
| Hoisting
|
m/min
|
80
|
40
|
10
|
40
|
20
|
5
|
24/24/5.4
|
| T
|
2
|
4
|
4
|
4
|
8
|
8
|
| Trolleying
|
m/min
|
40/20
|
3.3/2.2
|
| Slewing
|
r/min
|
0.62
|
3.7*2
|
| Climbing
|
m/min
|
0.6
|
7.5
|
| Main supply
|
~380V/50Hz
|
Capacity introduction
1.The main stressed steel parts of QTZ100P flat tower crane use Q345B steel, thetower body mast section 1.8*1.8*2.8m, using on-chip-type or standard mastsection of two forms of production.
2.Light weight, air resistence is small, convenient transportation. Rotarydualrotary body, lifting body uses double-speed wound motor drag, run smoothly.
1: The hoisting mechanism is made up ofthe electromotor, brake wheel, speed reducer, coiling block, and hoistingheight limiter. Three-speed motorand mono-speed ratio decelerator is applied in the lifting mechanism, whichenables heavy load low speed and light load high speed.
2:The slewing mechanism is made up of two-speed electric motor, fluid coupling,electromagnetic brake, slewing angle limiter, planet reducer, pinion and thebase support. The range-changestructure drives the dolly to change range on the horizontal arm, with goodpositioning performance.
3:The trolleying mechanism: Thetroll eying mechanism is made up of two-speed electromotor, speed reducer,coiling block, and the trolleying limiter. Planet gear decelerator isapplied in the slewing structure, together with moment-limiting hydrauliccoupler, which cans realize high load capacity, steady starting and reliableoperation.
Why choose us
1.Cooperative professional tower crane manufactures in China
2.Exported to more than 30 countries with ISO9001&CE Certifications
3.Hydraulic self-climbing mechanism
4.Variable-frequency slewing mechanism
5.Varialbe-speed frequency PLC control System
6.Operation data display screen
7.Various safety devices
8.Safety monitoring system (Black Box)
As a professional exporter,our target is to serve worldwide clients with high-quality products, great-reliability, devoted responsibility,professional services and honorable credibility to meet customers’ requirements in all aspects. We will supply you 24 hours a day and 7 days a week after-sale services.
