We understand that each project is unique, which is why we offer a wide range of customization options. Our Braided Flexible Metal Hoses can be tailored to your specific requirements, including inner diameter (I.D.), outer diameter (O.D.), length, connectors, materials, printed tags, packaging, and more. We are dedicated to delivering a product that perfectly aligns with your needs.
Unparalleled Construction:
Our Braided Flexible Metal Hoses are meticulously engineered to deliver exceptional performance and reliability. Let's dive into the remarkable construction details:

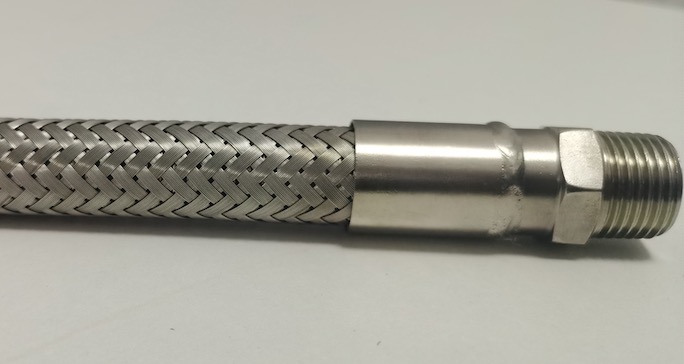

Connector:
Made from high-quality 304 stainless steel, ensuring robustness and corrosion resistance.
The male thread connectors are welded to both ends of the hose, guaranteeing a secure and leak-free connection.
Pipe threads conform to the NPT/PT/BSP standards, ensuring compatibility with various systems.
Inner Core: Corrugated Stainless Steel
Constructed from flexible stainless steel bellows, available in multiple options including 304, 321, and 316L stainless steel.
The annular or spiral corrugations provide excellent flexibility, enabling the compensation of pipe or equipment movements and vibration absorption.
Outstanding properties such as corrosion resistance, fatigue resistance, and high/low-temperature tolerance make it suitable for diverse environments.
Outer Core: Braided Stainless Steel Layers
The outer core adds strength and shielding to the hose, providing additional protection and reinforcement.
Available in single or double braided layers, using stainless steel materials such as 304, 321, and 316L.
The braided layers enhance durability and contribute to the overall flexibility and performance of the hose.
Unmatched Advantages:
Superior Versatility: Our Braided Flexible Metal Hoses are designed to excel in complex and demanding indoor and outdoor environments, making them suitable for a wide range of applications.
Excellent Corrosion Resistance: In contact with water, our hoses do not form oxidation stains, ensuring prolonged durability and corrosion resistance.
Superior Sealability: Our hoses meet rigorous standards in terms of sealability, ensuring reliable and leak-free performance.
Extreme Conditions Compatibility: These hoses are engineered to withstand high pressure, high/low temperatures, and corrosive environments, delivering unparalleled performance and reliability.

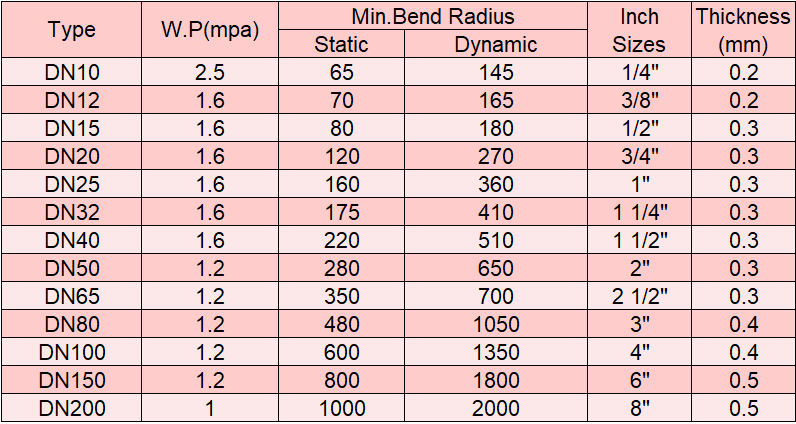

Flexible Metal Hose Performance Parameters As Below:
Unmatched Service:
We take great pride in offering comprehensive custom services to meet your specific requirements:
Customized Design: We provide tailored solutions, allowing customization of parameters such as I.D., O.D., length, connectors, materials, printed tags, and packaging.
OEM/ODM Service: Our team is dedicated to fulfilling your unique needs, including custom design and printing based on your specifications.
Sample Testing: Place a free sample order to assess the quality and performance of our hoses before committing to a full order.
Conclusion:
With our Braided Flexible Metal Hoses with Male Thread Connectors, you can expect nothing less than exceptional quality, on-time delivery, and a steady supply from a reliable and qualified supplier. Our ISO9001-certified processes ensure that all our products are rigorously tested and 100% qualified before shipping.
Discover the limitless possibilities and reliable performance of our Braided Flexible Metal Hoses. We invite you to explore the world of tailored solutions by contacting us today.
