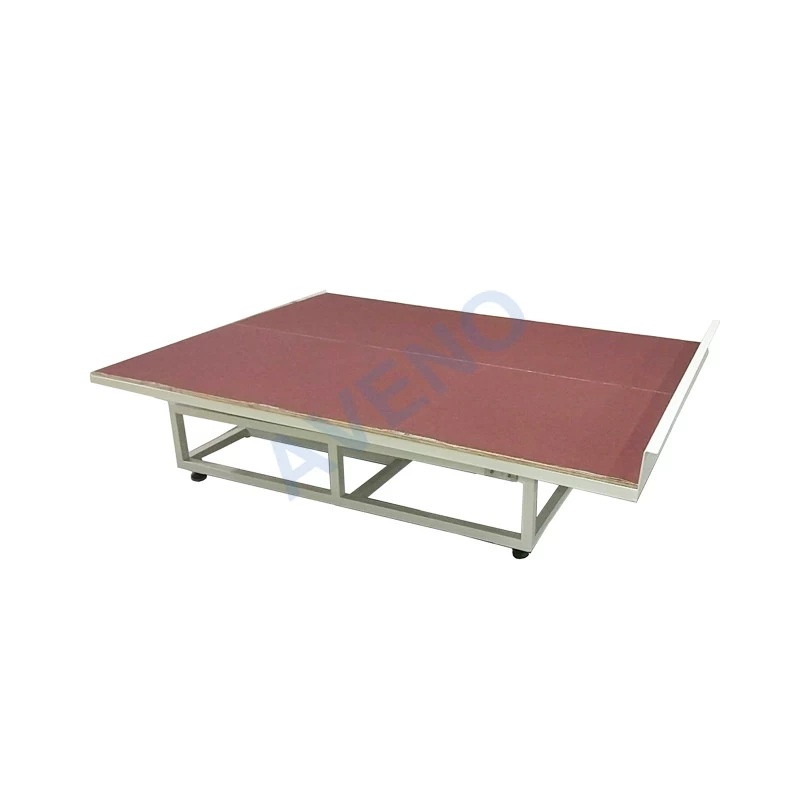

AT06-Brake Performance Testing Ramp
Application Of Brake Performance Testing Ramp
AT06 Brake Performance Testing Ramp is used to test the stability and braking performance of the stroller, and to simulate the possibility of overturning and the stability of the brake during daily use.
Test Principle Of Brake Performance Testing Ramp
Place the stroller in the desired position on a certain angle on the slope for a specified period of time, to see if it is tipping or sliding when using the brakes.
Standards Of Brake Performance Testing Ramp
EN-71-1 section 8.18.3, 8.23, 8.26.1.1, 8.26.2, 8.26.3
ASTM F963 section 4.15, 8.15.1
ISO 8124-1 section 5.12, 5.16.2, 5.16.3, 5.22.3
GB 6675-2 section 5.12, 5.16.2, 5.16.3, 5.22.3
Key Specification Of Brake Performance Testing Ramp
|
Model
|
AT06-1
|
AT06-2
|
|
Angle
adjust method
|
Manual adjust
|
Electronic adjust
|
|
Test
angle
|
0-45 degrees (adjustable)
|
|
Ramp
test surface
|
Aluminum oxide P60 sandpaper
|
|
Power
supply
|
-
|
AC220V, 50/60HZ
|
|
Dimension
|
172*120*51cm
|
|
Weight
|
110kg
|
