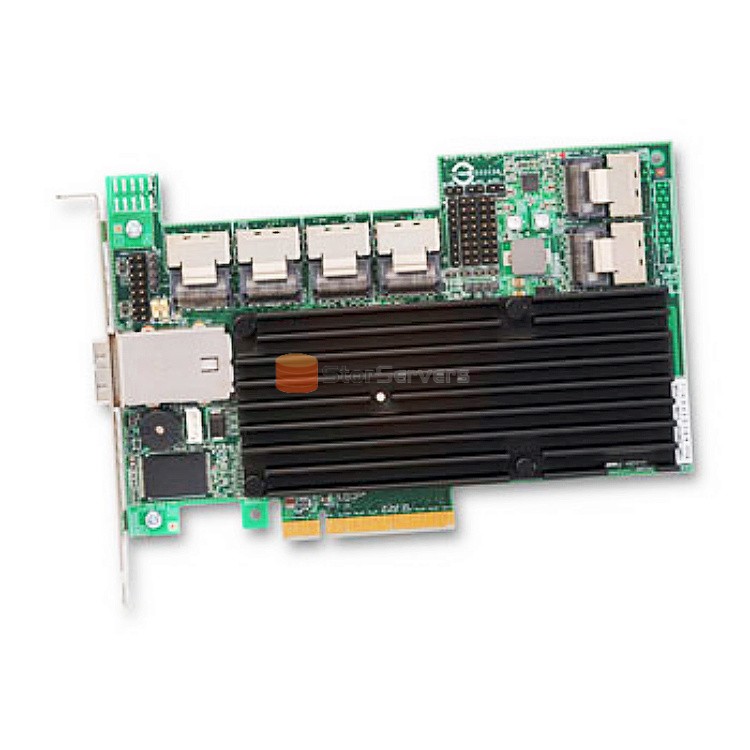

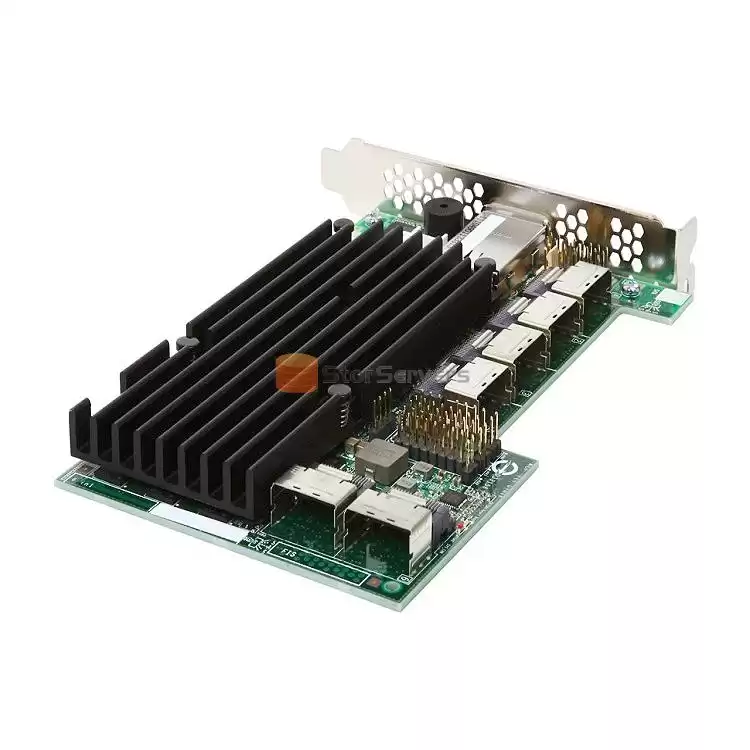

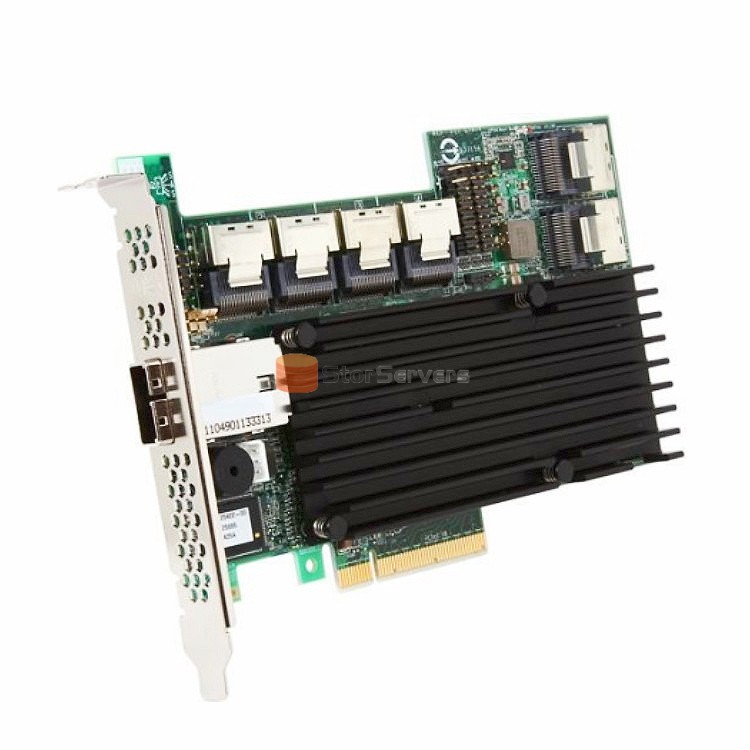

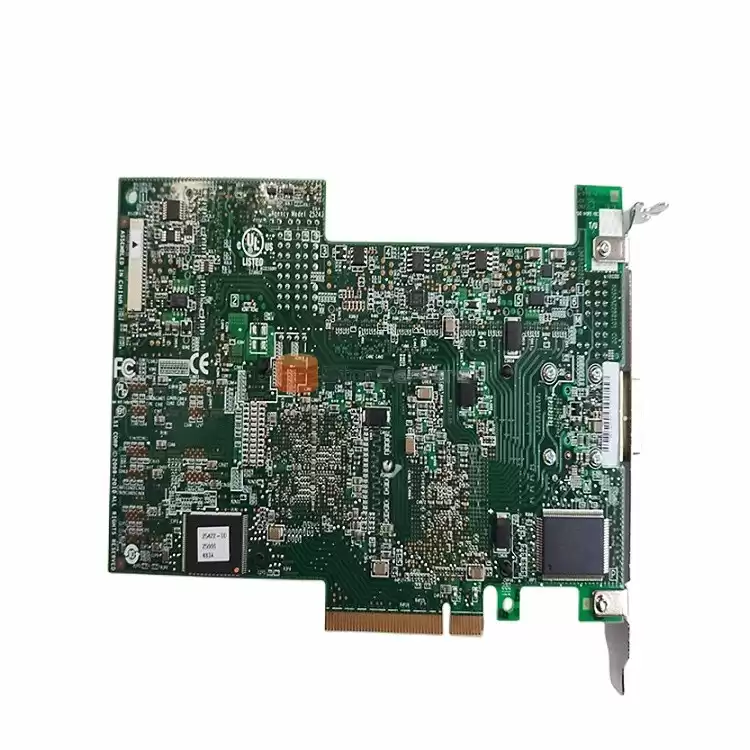

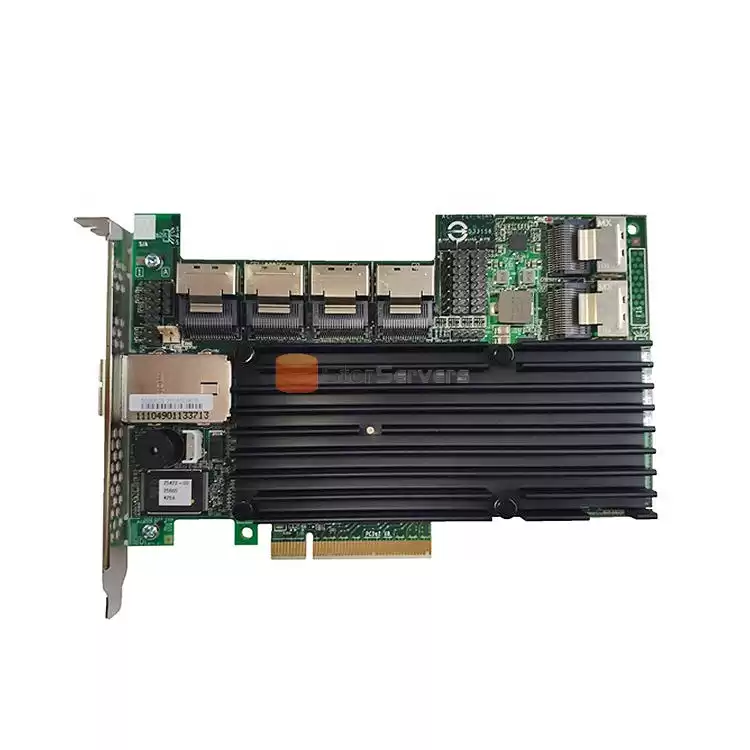

LSI SAS 9750-24i4e Megaraid 6GB/s RAID CARD
Key Features
■ Twenty-four internal + Four external 6Gb/s SATA+SAS ports
■ Six Mini-SAS internal connectors (SFF8087)
■ One Mini-SAS external connector (SFF8088)
■ RAID levels 0, 1, 5, 6,10, 50 and Single Disk
■ LSISAS2108 6Gb/s RAID-on-Chip– 800MHz PowerPC®
■ 512MB 800MHz DDRII cache memory
■ Optional battery backup module with StorSave BBU
Key Advantages
■ High data availability with up to twentyfour point-to-point connections
■ PCI Express 2.0 provides faster signaling for high- bandwidth applications
■ StreamFusion+ improves multi-stream read and write performance
Specification
| Model |
LSl 9750-24i4e |
| Single Pack P/N |
LSI00251
|
| Kit P/N |
LSI00253
|
| Ports |
24 Ports int / 4 Ports ext |
| Connectors |
Six Mini-SAS SFF8087 internal connectors
One Mini-SAS SFF8088 external connector
|
| Data Transfer Rates |
Up to 6 Gb/s per port |
| Host Bus Type |
x8 lane PCI Express 2.0 Compliant |
| l/0 Processor/SAS Controller |
LSISAS2108 RAID-on-Chip (ROC) |
| RAID levels |
0, 1, 5, 6,10, 50 and Single Disk |
Brackets
|
Full height
|
| Warranty |
3 years |
Availability
|
In Stock |
