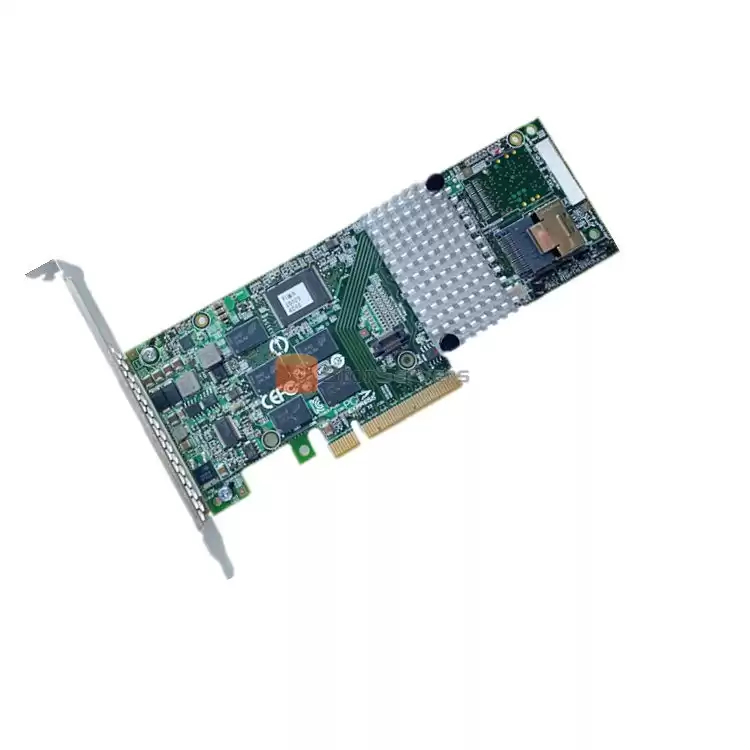

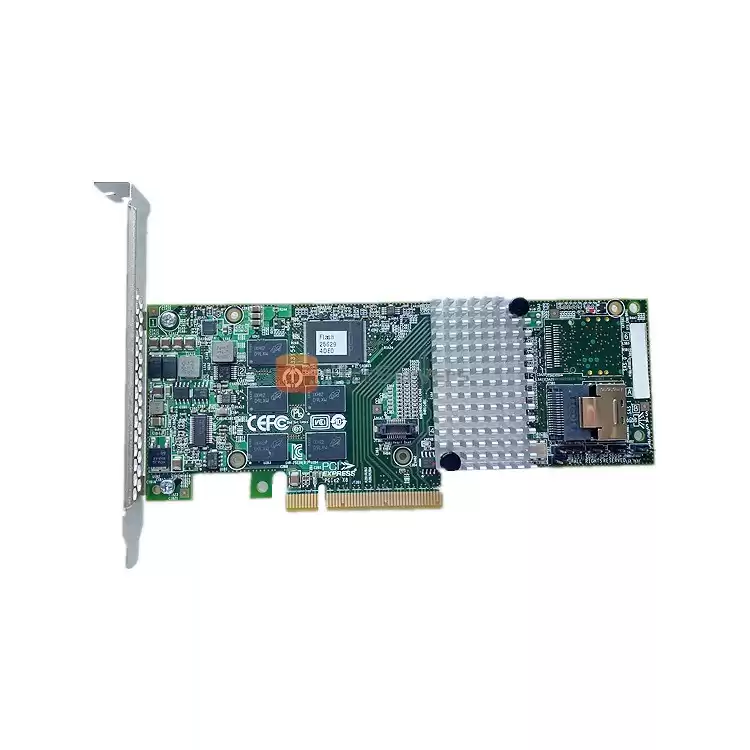

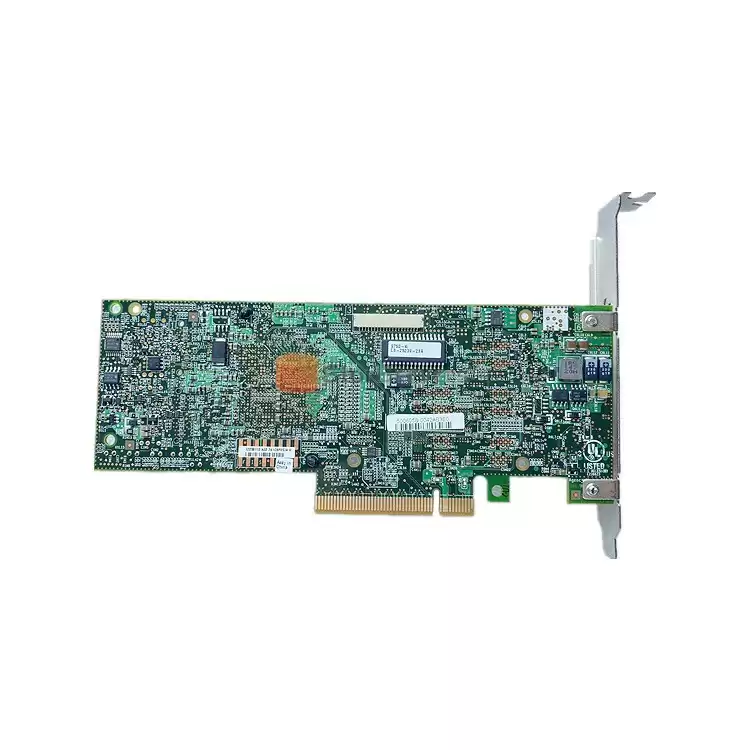

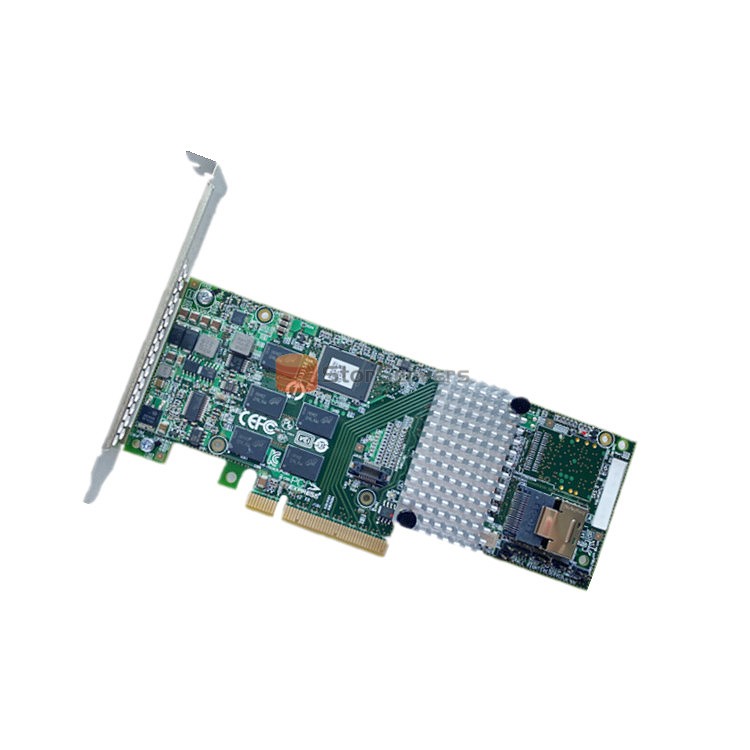

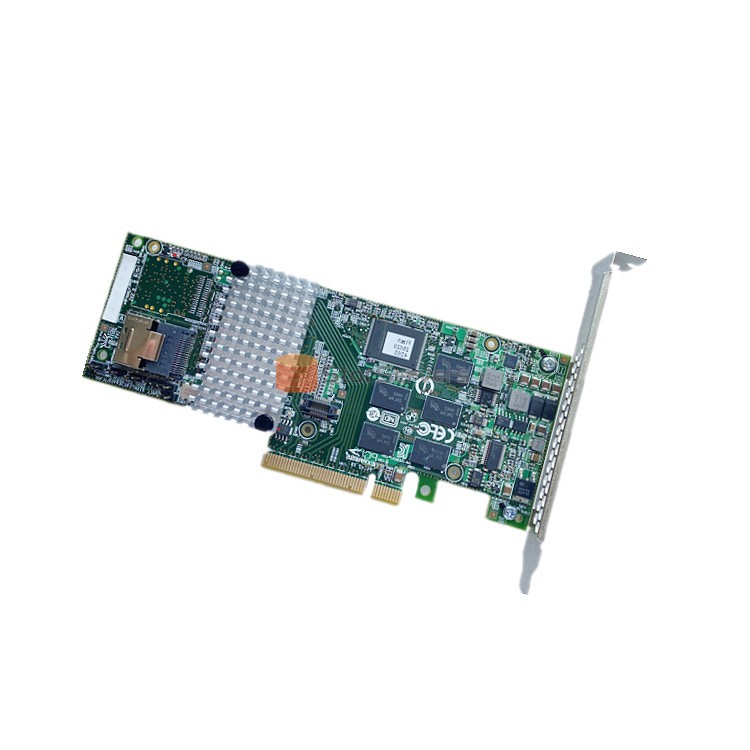

LSI SAS 9750-4i Megaraid 6GB/s RAID CARD
Key Features
■ Four internal 6Gb/s SATA+SAS ports
■ One Mini-SAS internal connector (SFF-8087)
■ RAID levels 0, 1, 5, 6,10, 50 and Single Disk
■ LSISAS2108 6Gb/s RAID-on-Chip – 800MHz PowerPC®
■ 512MB 800MHz DDRII cache memory
■ Optional battery backup module with StorSave BBU
■ Support for up to 96 SATA or SAS physical devices
Key Advantages
■ Superior Performance
— Maximum RAID 5 Reads: 2500MB/s
— Maximum RAID 5 Writes: 1100MB/s
■ PCI Express 2.0 provides faster signaling for high- bandwidth applications
■ Support for 3Gb/s and 6Gb/s, SAS and SATA, HDDs and SSDs
■ StreamFusion+ improves multi-stream read and write performance
Specification
| Model |
LSl 9750-4i |
| Single Pack P/N |
LSI00216
|
| Kit P/N |
LSI00215
|
| Ports |
4 Ports int |
| Connectors |
One Mini-SAS SFF-8087 internal connector |
| Data Transfer Rates |
Up to 6 Gb/s per port |
| Host Bus Type |
x8 lane PCI Express 2.0 Compliant |
| l/0 Processor/SAS Controller |
LSISAS2108 RAID-on-Chip (ROC) |
| RAID levels |
0, 1, 5, 6,10, 50 and Single Disk |
Brackets
|
Low-Profile
|
| Warranty |
3 years |
Availability
|
In Stock |
About Us
STOR TECHNOLOGY LIMITED founded in 2007, focusing on providing hardware solutions for cloud computing ,cloud storage,data centre, security monitor, customized server and other fields. Our main products are Raid Card, HBA Card,Fiber Card,Network Card,Hard Drives,CPU. We can provide long-term good after sales service for customers. ODM orders Welcom!
Our Advantages
FAQ
Q1: What payment method do you accept?
A1: Trade assurance, T/T, Western Union
Q2: What is the mininum order Quantity(MOQ）?
A2: We can sell one piece for testing.
Q3: When is the lead time of your products?
A3: we have stock, we can provide fast delivery within 2~3 days for 10pcs.
Q4: How about the warranty service?
A4: 3 year for wanrranty free.
