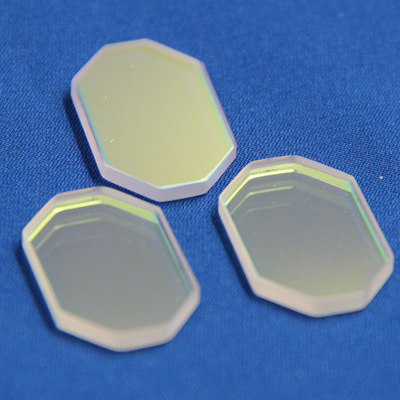

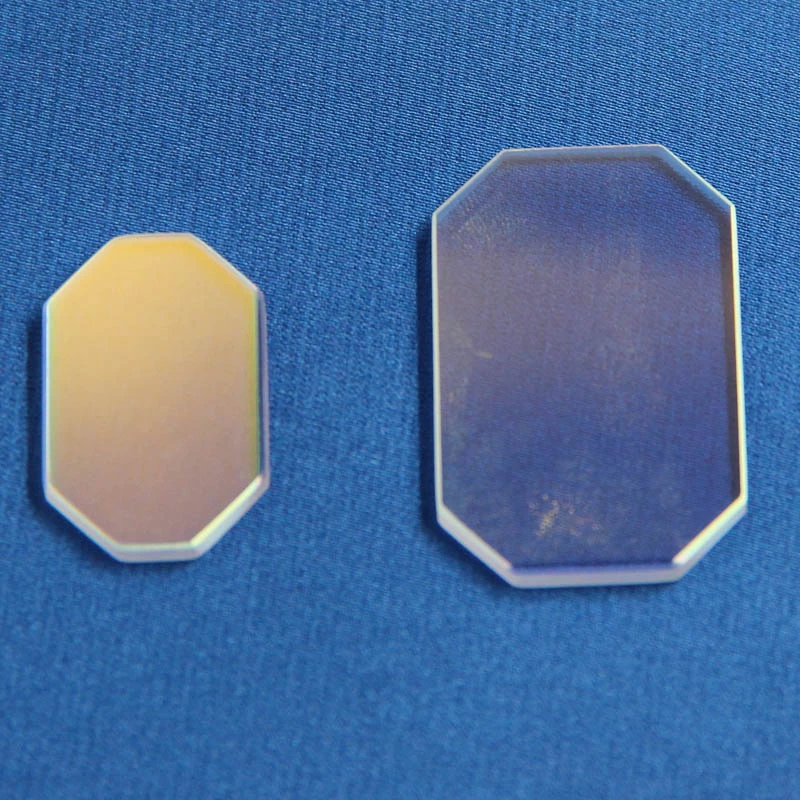

Broadband and Narrowband Non-Polarizing Plate Beamsplitters
Non-Polarizing Plate Beamsplitters can be used with high power laser. When using beamsplitter plates, it is important to bear in mind that the two partial beams travel different optical paths. And the optical paths depend on the incident angle and the thickness of plates.
|
Specification
|
|
|
Material:
|
BK7 grade A optical glass
|
|
Dimension Tolerance:
|
+0.2, -0.2mm
|
|
Thickness Tolerance:
|
±0.2mm
|
|
Surface quality:
|
60/40
|
|
Clear Aperture:
|
>85%
|
|
Flatness:
|
λ/4 per 25mm@633nm
|
|
Parallelism:
|
±1'
|
|
Bevel:
|
<0.25mm X 45°
|
|
Coating:
|
Front surface (S1) :Partial reflective coating
|
|
|
Back surface (S2) :AR coating
|
|
|
Reflectance/Transmittance R/T=50/50% ±5% ;
|
|
|
Other ratio is available (10:90, 20:80, 30:70, 40:60 or 50:50)
|
|
|
( R,T are the average of S- and P-pol) ,AOI= 45°
|
|
Typical Sizes:
|
|
|
Round Shape:
|
Φ5.0; Φ10.0 ; Φ12.7; Φ15.0; Φ20.0
|
|
Diameter(mm)
|
Φ25.4; Φ30.0; Φ38.1; Φ50.8; Φ76.2
|
|
Square Shape:
|
5.0x5.0 ; 10.0x10.0 ; 15.0x15.0 ;
|
|
WxH(mm)
|
20.0x20.0; 25.0x25.0; 50.0x50.0
|
|
Thickness(mm)
|
1.0; 1.5; 2.0; 3.0; 4.0; 5.0; 6.0; 8.0; 10.0
|
