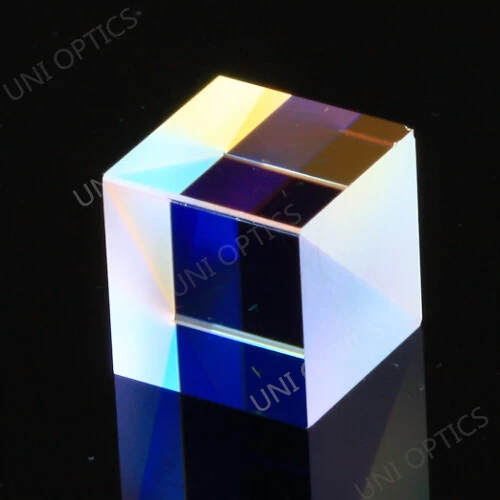

Broadband Polarizing Cube Beamsplitters

Beamsplitter Cubes are constructed by cemented two right angle prisms. The hypotenuse of one prism is coated with polarization dielectric coating.

Compared with beamsplitter plate, beamsplitter cube has the following advantages:

* Identical path length for both the reflected and the transmitted beams

* The transmitted beam is neither displaced nor deflected

* Stable and compact

* Easy operation

* Easy for mounting/aligning

Specifications:

Material: N-BK7 Grade A Optical Glass

Dimension Tolerance: +/-0.1mm

Flatness： λ/4@633nm

Beam deviation: 3 arc min

Surface Quality: 60-40

Clear aperture： >90%

Front surface (S1): Partial reflective coating

Back surface (S2): AR coating

Bevel: Protective

Standard Coating:T/R=50/50±5%, for random polarization ;
T=（Ts+Tp)/2,R=(Rs+Rp)/2

Note: Other sizes, split ratio and coating are available upon request.
