1、What is beamsplitters plate ?

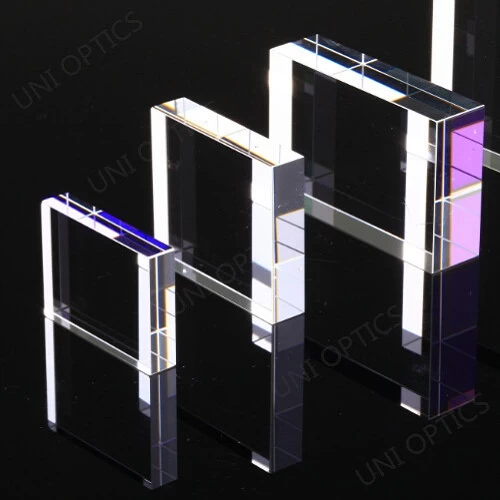

Plate Beamsplitters are used to split incident light into two separate components.
2、What is beamsplitters plate used for?
It can used in life science, imaging, beam displacement, or laser applications.
3、What can UNI Optics do?
UNI Optics as a developing and responsible optical component & assembly manufacturers from China, produces high quality Beam Splitter plate out of many variations of optical glass, fused silica, crystal and Infrared materials, and with the aid of the cutting-edge thin film technology.
Coatings such as Partial reflective coating or AR can be applied to these Beam Splitter plate to provide added performance.
Specifications:
Material: BK7, Fused Silica, Borofloat etc. Glass
Dimension Tolerance: +/-0.1mm
Flatness： λ/4@633nm
Beam deviation: 3 arc min
Surface Quality: 60-40
Clear aperture： >90%
Front surface (S1): Partial reflective coating
Back surface (S2): AR coating
Bevel: Protective
Standard Coating:T/R=50/50±5%, for random polarization ;
T=（Ts+Tp)/2,R=(Rs+Rp)/2
Standard
Wavelength(nm)
|
Narrow Band
|
488, 532, 632.8, 650, 808, 850, 980, 1064, 1310, 1550nm
|
|
Broadband
|
450-650, 650-900, 900-1200, 1200-1550, 1500-1610nm
|
|
Size (mm)
|
5x5x1
|
10x10x2
|
20x20x2
|
25.4x25.4x2
|
|
Φ12.7x2
|
Φ20x2
|
Φ25.4x2
|
Φ30x2
|
Note: Other sizes, split ratio and coating are available upon request.
