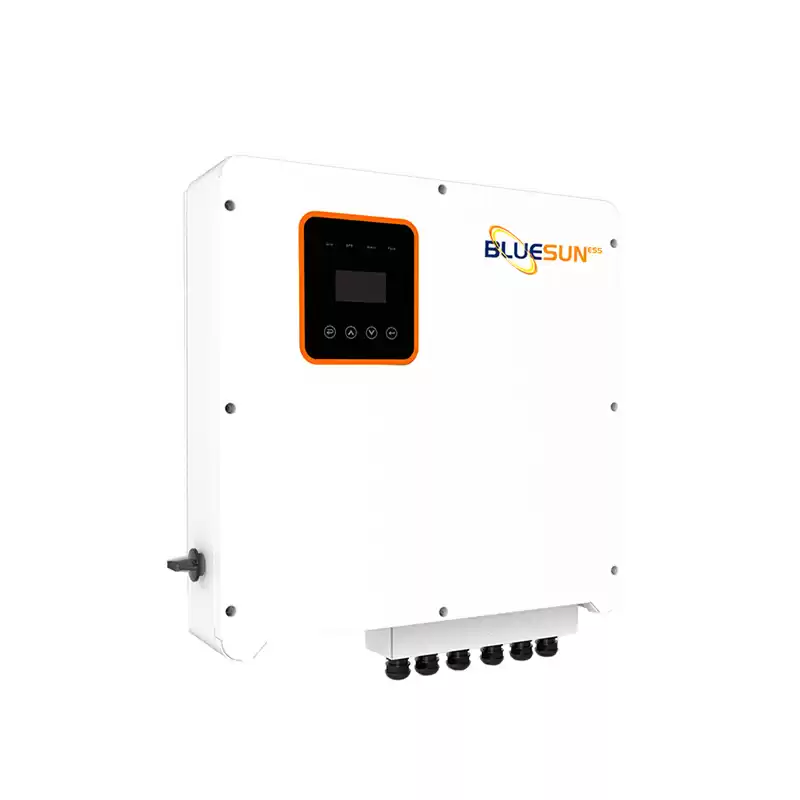

BSE6KH3-BSE12KH3 6-12KW Three Phase High Voltage 2MPPTs 400V

Model

BSE-8KH3

BSE-10KH3

BSE-12KH3

DC input

Max. input power

10.4KW

13KW

15.6KW

Max. PV voltage

1000V

1000V

1000V

MPPT range

125V-850V

 125V-850V

 125V-850V

Max. input current

12.5A*2

12.5A*2

12.5A*2

MPPT tracker/strings

44593

44593

44593

AC output

Max. output power

8.8KVA

11KVA

13.2KVA

Max. output current

13.3A

16.7A

20A

Max. input power

17.6KVA

22KVA

26.4KVA

Max.input current

25.4A

31.8A

38.1A

Nominal voltage/range

400VAC /360Vac~440Vac

Frequency

50 /60Hz

PF

1(0.8lagging-0.8leading)

THDI

<3%

AC output topology

3W+N+PE

Battery

Battery voltage range

125V-600V

Charge/discharge current

50A

50A

50A

Max. Charge/discharge power

8.8KW

11KW

13.2KW

Battery type

Lithium-ion /Lead-acid

Communication interface

CAN/RS485

Eps output

Max. output power

8.8KVA

11KVA

13.2KVA

Rated voltage

400Vac

Rated current

12.7A

15.9A

19.1A

Rated frequency

50 /60Hz

Automatic switchover time

<20ms

THDU

<2%

General data

Battery chage/dischage

0.975

0.975

0.976

DC max. efficiency

0.979

0.982

0.982

Euro efficiency

0.972

0.975

0.975

MPPT efficiency

0.995

0.995

0.995

Protection class

IP65

Noise emission (typical)

<35dB

Cooling

Natural

Relative humidity

0 ~95% （non-condensing）

Altitude

2000m

Dimensions (W*D*H)

550*180*520mm

Weight

36kg

Inverter topology

Without transformer

Self-consumption

<3W

Features

Display

LCD

Interface:rs485/wifi/lan/can/drm

yes /opt/opt/yes/yes
