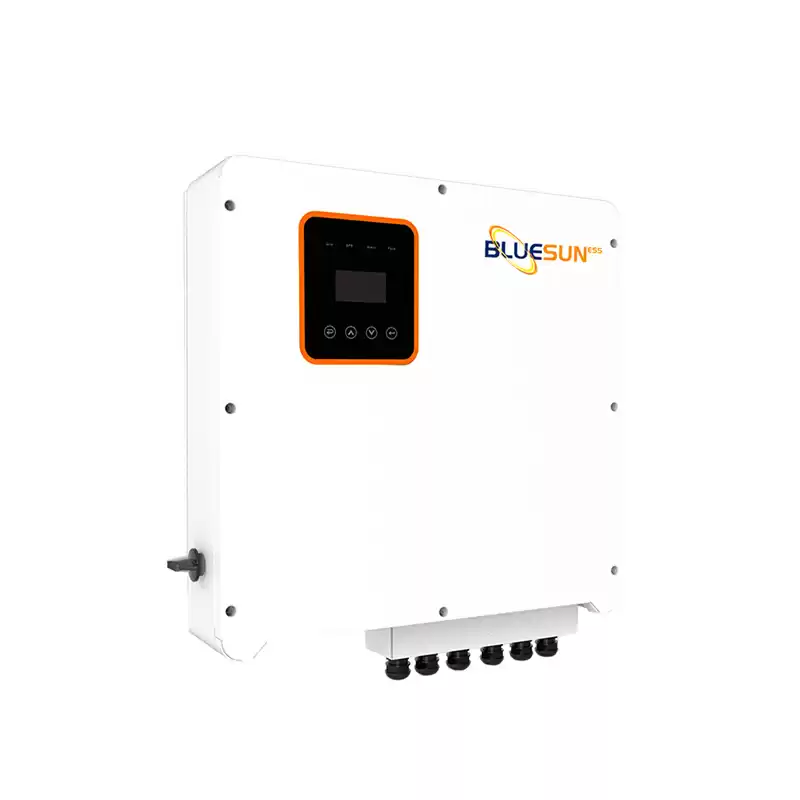

BSE6KL1 6KW Single Phase Low Voltage 2MPPTs 230V

Model

BSE-6KL1

DC input

Max. Input Power

7000W

Start-up voltage

125V

Max. PV voltage

550V

MPPT range/nominal

125V-550V /360V

Max. input current

14A/14A

MPPT tracker/strings

2/1

AC output

Rated power w/va

6000VA/6000W

Max. output current

26A

Nominal voltage/range

230V /180Vac~280Vac

Frequency

50 /60Hz

PF

1(0.8lagging-0.8leading)

THDI

<3%

AC output topology

L+N+PE

Battery

Battery voltage range

42~59V

Max.charging voltage

58V

Charge/discharge current

95 A / 110 A

Battery type

lithium /Lead-acid

Communication interface

CAN/RS485

Eps output

Rated power w/va

6000VA/6000W

Rated voltage

230Vac

Rated current

26A

Rated frequency

50 /60Hz

Automatic switchover time

<20ms

THDU

<2%

General data

Battery chage/dischage

95.5%/95%

DC max. efficiency

0.976

Euro efficiency

0.97

MPPT efficiency

0.999

Protection class

IP65

Noise emission (typical)

<35dB

Cooling

Natural

Relative humidity

0 ~95%（non-condensing）

Altitude

2000m

Dimensions (W*D*H)

550*200*515mm

Weight

25kg

Inverter topology

Without transformer

Self-consumption

<3W

Features

Display

LCD

Interface:rs485/wifi/can/drm

yes /opt/opt/yes/yes
