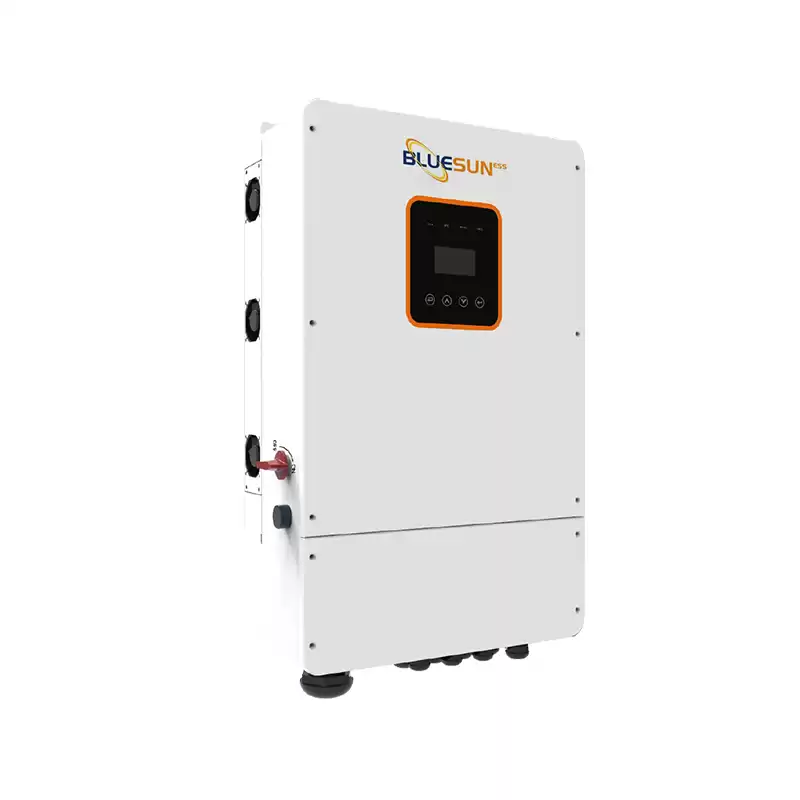

Model

 BSE8KLNA

Efficiency

Max Efficiency

>=98.2%

CEC Efficiency

>=97.2%

On Grid AC Output

Rate AC Output Power

8KVA

AC Output Voltage

120/240Vac(split phase), 208Vac(2/3 phase),230Vac(single phase)

AC Output Frenquecny

50/60HZ

Grid Type

Split phase˛2/3 phase˛Single Phase

Max Output Current

38.3A

AC Reverse Charging

Yes

PF

0.8leading.   0.8lagging

Output TH DI

< 2%

Back-up AC Output

Rated Backup Output Power

8KVA

Max Backup Output Power

10kVA 60S. 12KVA 1S

Backup AC Output Voltage

120/240Vac(split phase), 208Vac(2/3 phase),230Vac(single phase)

ACFrequency

50/60HZ

Output TH DI

<2%

PV Input

PV input power

12KW

MPPT number

4

PV voltage range

350V/85V - 500V

MPPT voltage range

120V-500V

Single MPPT input current

12A

Battery

Max charging/discharging current

190A/190A

Battery Voltage range

48V

Battery Type

Lithium-ion,Lead-acid

Protection

Ground protection

Yes

AFCI protection

Yes

Islanding protection

Yes

DC disconnect detection

Yes

Battery Fteverse protection

Yes

Battery charge and discharge protection

Yes

Insulation testing

Yes

GFCI

Yes

DC anti-thunder

Yes

AC anti-thunder

Yes

Input overvoltage&under-voltage protections

Yes

Output overvoltage&under-voltage protections

Yes

AC&DC over-current protection

Yes

AC short-circuit current protection

Yes

Overheating protection

Yes

General Data

Environment humidity

0-95%

Altitude

0-4000M (over 2000M derating)

IP rank

IP65/NEMA 3R

Weight

32kg

Dimension(W*H*D) (mm)

530x 660 x 200

Cooling

Fan Cooling

Noise(dB)

<29dB

Display

LCD

Communication

Modbus, RS485, WIFI,4G
