Burma ELF/700P Isuzu Vacuum Wet Type Sweeper Truck

Competive Price Road Sweeper Truck of ISUZU,Road Sweeper Road Sweeping Truck,Low Price Sweeper Truck of ISUZU 4kh1-Tc,Isuzu Road Sweeping Car,isuzu Garbage (Sewage Sucking) Truck

ISUZU Compressor Garbage Truck Refuse Truck

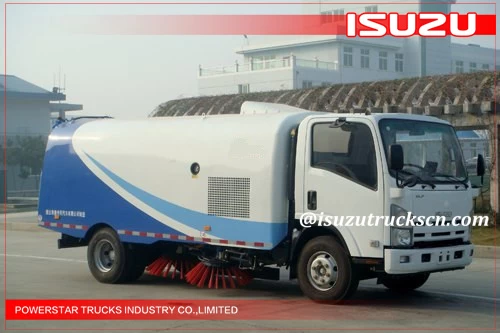

Burma ELF/700P Isuzu Vacuum Wet Type Sweeper Truck



 Burma ELF/700P Isuzu Vacuum Wet Type Sweeper Truck

Basic Description

Sanitation Road sweeper truck ISUZU (also street brand new road sweeper, customer street sweeper, nation road sweeper, runway sweeper truck, city road sweeper vehicle, mechanical road sweeping vehicle, highways cleaner, street road sweeper, industrial road sweeper, Environment sweeper trucks) This Isuzu road sweeper truck has a simple and proper structure with four brushes in the middle and a suction port at the back part of the vehicle. The efficient suction system makes low noises when the vehicle is working. The whole vehicle is stable in performance.


With the structure of four mid-mounted disk brushes and one rear-mounted suction nozzle, which provide a large sweeping width, high sweeping efficiency and good traffic ability. Also convenient for adjustment and maintenance of sweeper device and nozzle.

The sweeping disk has the protection function and automatic reset function, which can avoid obstacles automatically and return automatically.

Key Features

Key Features of road sweeper truck ISUZU    ISUZU NKR Chassis, Durable & Performance.

Key Features of road sweeper truck ISUZU    Sweeping, Sprinkling and garbage transportation

Key Features of road sweeper truck ISUZU     Stainless steeel garbage bin & Stainless water tank, longer service life

Key Features of road sweeper truck ISUZU     Fuel Dispenser, Flow meter, Level gauage can be optional

Key Features of road sweeper truck ISUZU     POWERSTAR 20 years’ experience on road sweeper truck exporting.

Techical drawing of Isuzu road sweeper trucks






Main specifications





Model

PT5100TSL

Driving Type

4x2    (Left hand drive)

Wheelbase

4175 mm

Overall Dimension

6925X2200X2550 mm

Cab

Forward control over engine, all-steel-welded construction

Sweeping System

Auxiliary engine

Isuzu tech engine

Stainless Steel Hopper Effective Volume

6~8 CBM

Stainless Steel Water Tank Volume (L)

2000

Sweeping Width (mm)

3200

Sweeping speed (km/h)

3~25

Sweeping Capacity (m2/h)

16500~82500

Blower rated rotation speed (rpm)

1800

Blower air capacity (m3/h)

8000

Blower air pressure (Pa)

7000

Side Brush Sweeping Brush Drive and Control

Electric control lever and switch control, Hydraulic driving

Engine

Model

4HK1-TCG40

Type

Diesel, turbo charged inter-cooled, 4 cylinder

Max. Power

139 KW (195 HP)

Gearbox

MLD 6-shift, mechanical type, 6 forward and 1 reverse with

Tire

8.25-20

Color

Red    (Any color & logos up to wish)

Max Speed

100 km/h



Working Principles
