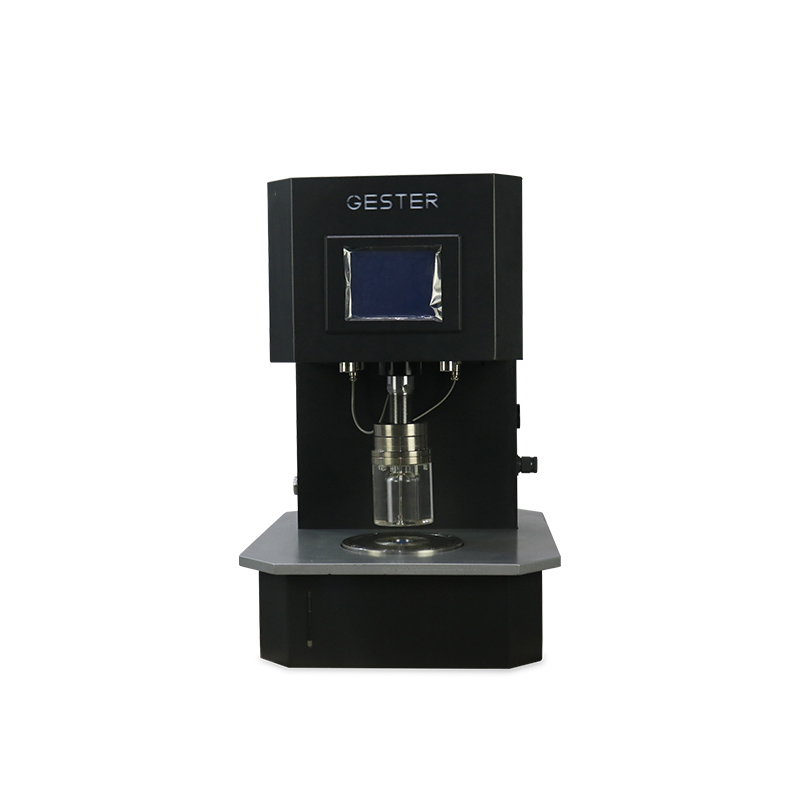

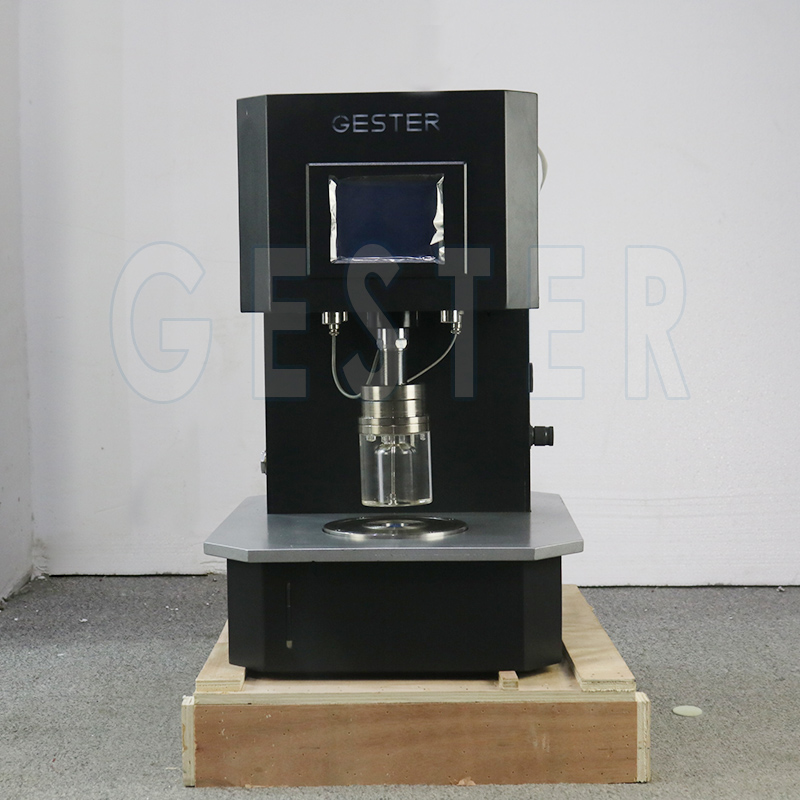

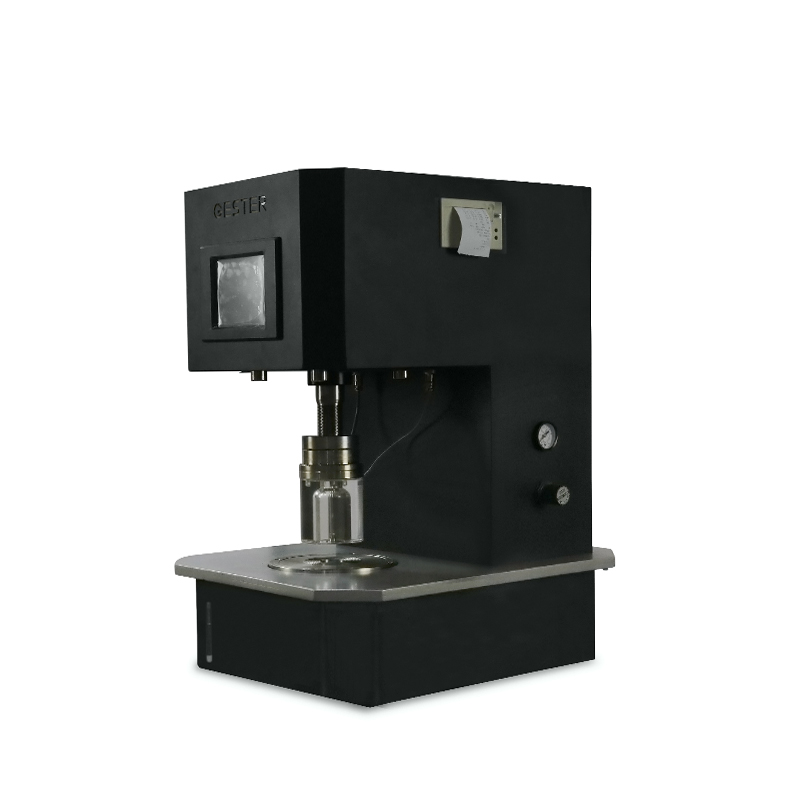

Bursting Strength Tester GT-C12A
Product Introduction of bursting strength tester
|
Application:
Bursting Strength Tester is applied to determine the bursting strength test and distension at burst of woven, knitted and non woven fabrics, papers and boards by the application of hydraulic load under a rubber diaphragm.
Standards:
ISO 13938.1, FZ/T 60019, FZ/T 01030, ASTM D3786, BS 4768, WOOLMARK TM 29
WSP 30.1, JIS L 1018.6.17
|

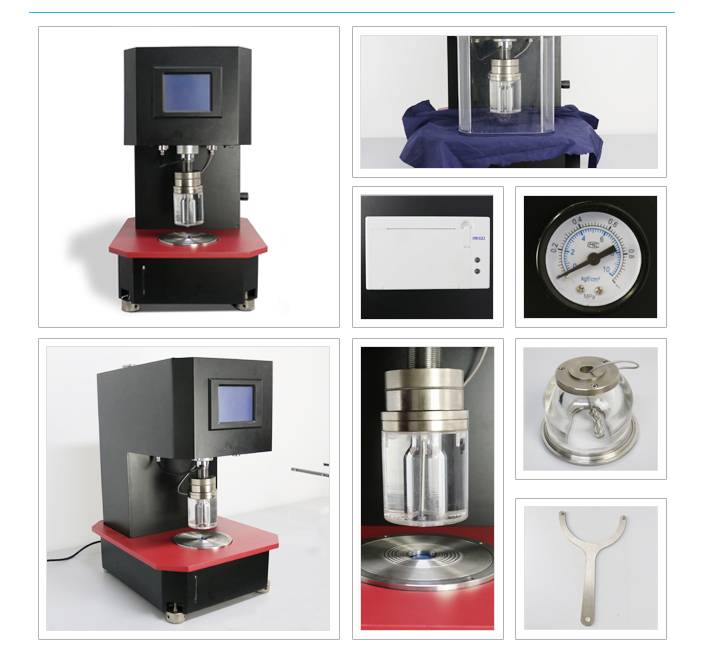

Features of burst strength tester
1. This burst test equipment use hydraulic method, meet multinational standards and equipped with several changeable test clamp.
2. The simple interface touching screen controller is easy and simple to handle.
3. The specimen was clamped firmly by the pneumatic force which can also save effort.

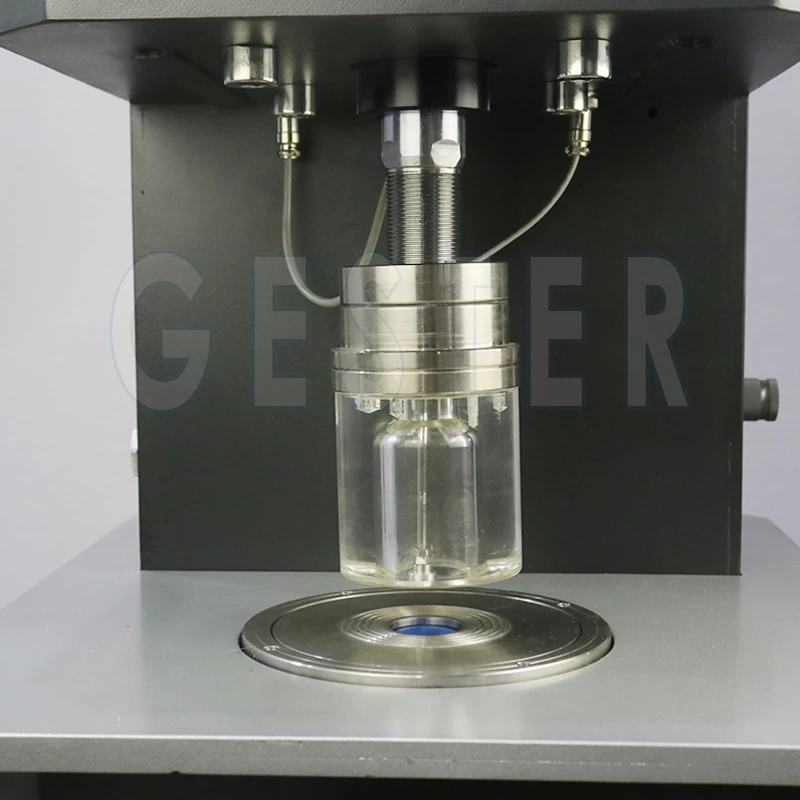

4. The burst test cover was made up of high-transparent glass with LED light inside which can observe the specimen easily.
5. The burst test equipment can induct the burst automatically which is much more sensitive and reliable.
6. The bursting distension can go up to 75mm.
7. The AC servo drive system with low noise and wide range of applications.
8. 4 Test Methods: Constant Rate Bursting, Constant Expansion, Constant Pressure and Constant Time Bursting.
9. The burst tester bring saving and printing functions and support on-line operation.
10. Provide on-line interfaces, professional detection software which can be used to analysis testing result.

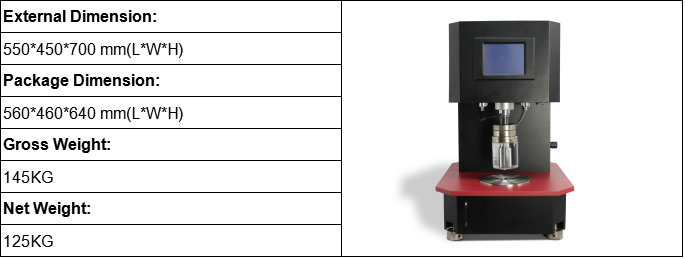

Dimensions of burst strength tester
Key Specifications of burst strength tester
Model
|
GT-C12A-1
|
GT-C12A-2
|
Range
|
2.00Mpa
|
10.000Mpa
|
The min. Division value
|
0.001Mpa
|
0.003Mpa
|
Test area
|
7.3 cm2 (Φ30.5mm), 10 cm2 (Φ35.7mm),
50cm2 (Φ79.8mm), 100 cm (Φ112.8mm) can be option
|
Thickness of rubber diaphragm
|
≤2mm
|
Pressure speed
|
20ml/min - 600ml/min
|
Maximun expansion height
|
75 ± 0.02mm
|
Testing units
|
Kpa, kgf/ cm2, atm, mmHg, lb/in2 free shift
|
Test method
|
Constant Rate Bursting,
Constant Expansion,
Constant Pressure,
Constant Time Bursting
|
Output
|
Printer ,display output, and can be connected to the computer
|
Power supply
|
AC 220V 50/60HZ 200W
|
Dimensions
|
550×450×700mm
|
Net weight
|
125kg
|
Standard accessories
|
1 set
|
Test set of 7.3cm²(φ30.5mm)
|
1 set
|
Test set of 50cm²(φ79.8mm)
|
1pc
|
Wrench
|
1pc
|
Stainless steel calibration plate
|
1pc
|
Rubber diaphragm
|
1pc
|
English operation software
|
1pc
|
Cable connect with PC
|
Optional accessories
|
Optional
|
Other test set
|
Optional
|
Rubber diaphragm
|
Optional
|
Air compressor
|
Application Industry of burst strength tester
All kinds of below materials can be tested on the Bursting Strength Tester GT-C12

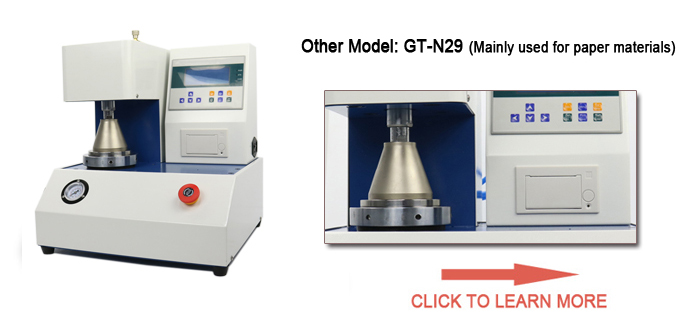

Other Optional Model of burst strength tester
