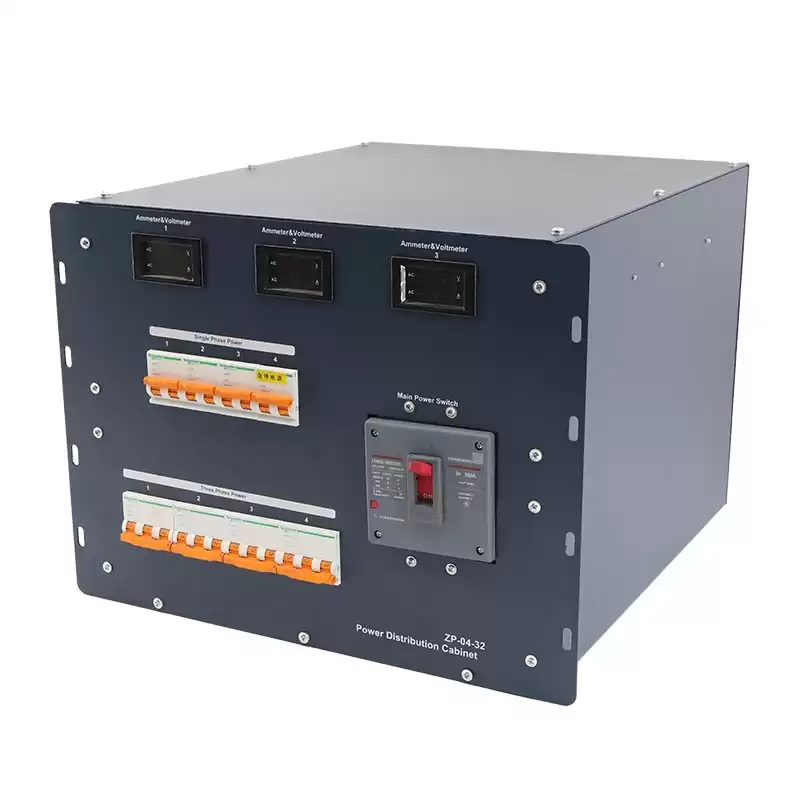

BW Power Distribution Cabinet

Robust Power Management for Black Warrior Automation Systems

Dual-Level Protection:
- Magnetic thermal breakers
- Emergency cut-off switches
Visual Indicators: Phase status LEDs

Category	Technical Details
Input Power	• 2× 5P 220A high-power sockets (cascadable) • 160A leakage protection switch
Output Circuits	• 4× 32A 3-phase 380V (independent breakers) • 4× 10A single-phase 220V
Monitoring	Real-time display of 3-phase voltage/current
Safety Systems	• Local emergency stop • Class 0 & 1 E-stop compliance
Electrical Ratings	• Voltage: AC220V ±10% • Frequency: 50-60Hz

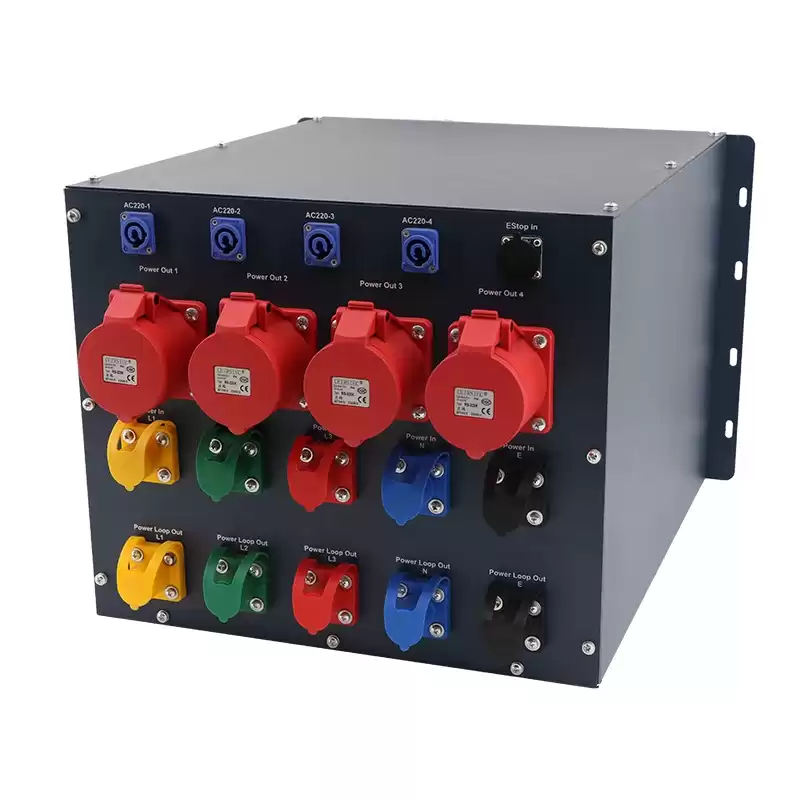

Interfaces	• 200A sockets (2×5P) • 32A aviation sockets (4×5P) • PowerCon outlets (4×3P) • E-stop input
Dimensions	• Cabinet: 482×599×356mm (W×H×D) • Flight case: 590×690×745mm
