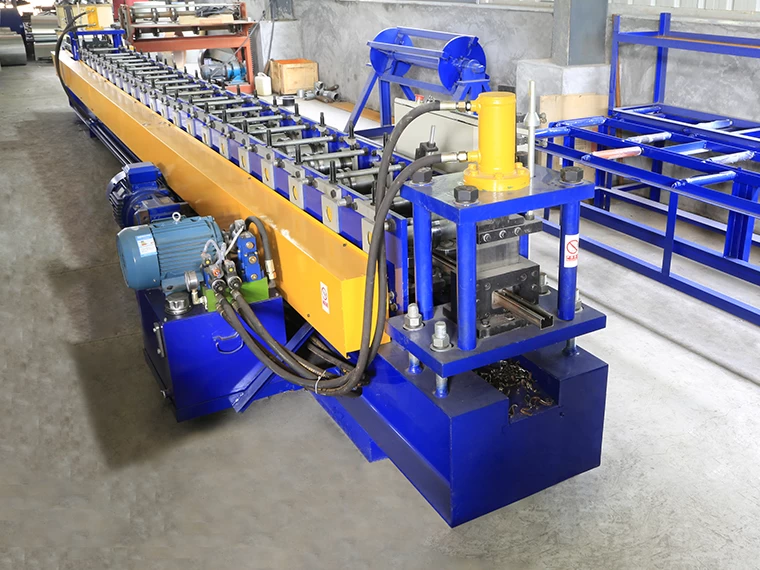

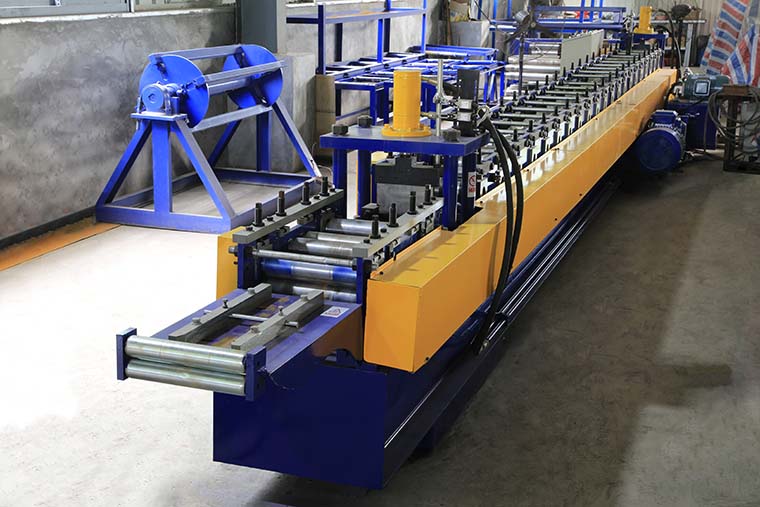

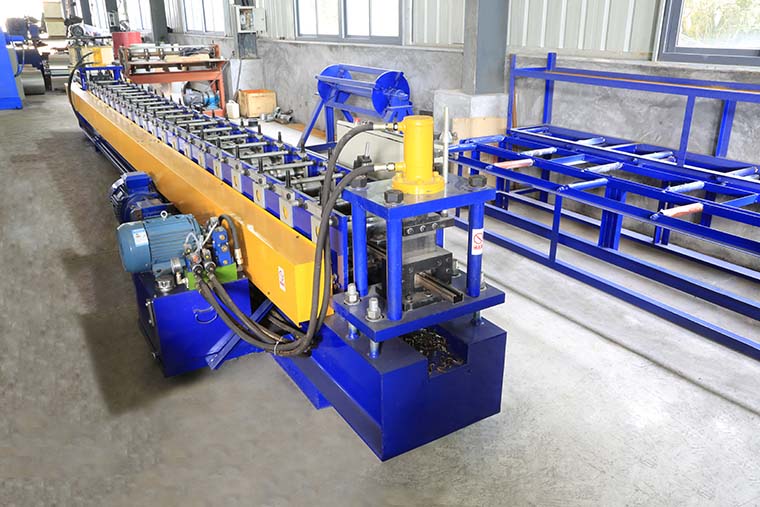

C Type Steel Purlin Roll Forming Machine

.Easy operation, low maintenance cost





C Purlin Roll Forming Machine





C Purlin Roll Forming Machine



C Purlin Roll Forming Machine



1.Main features of C purlin roll forming machine



  The advantages of C purlin machine are as follows:
    1.Produce different purlin size without changing rollers or spacers.
    2.No need changing cutter for different size.
    3.Easy operation, low maintenance cost
    4.Infinite sizing(any size within machine range),help to save material
    5.Optional Punch hole at any position of purlin web side and flange side




2.Detailed Images of C shaped steel forming machine




Machine Parts

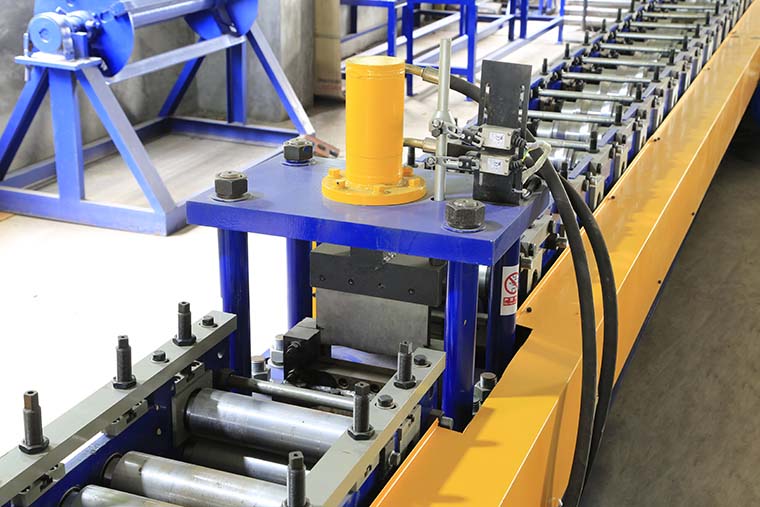

1) C purlin machine hydraulic pre-cutter



 C Purlin Roll Forming Machine

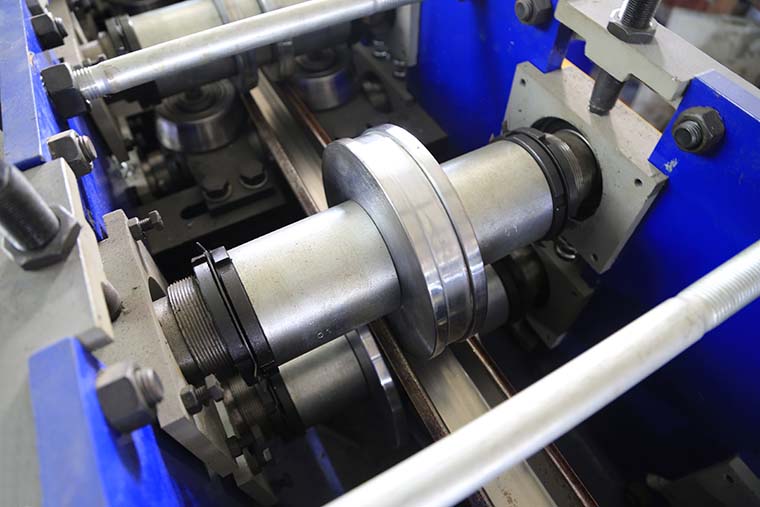

 2) C purlin machine rollers



Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body framemade from 400# H type steel by welding



C Purlin Roll Forming Machine

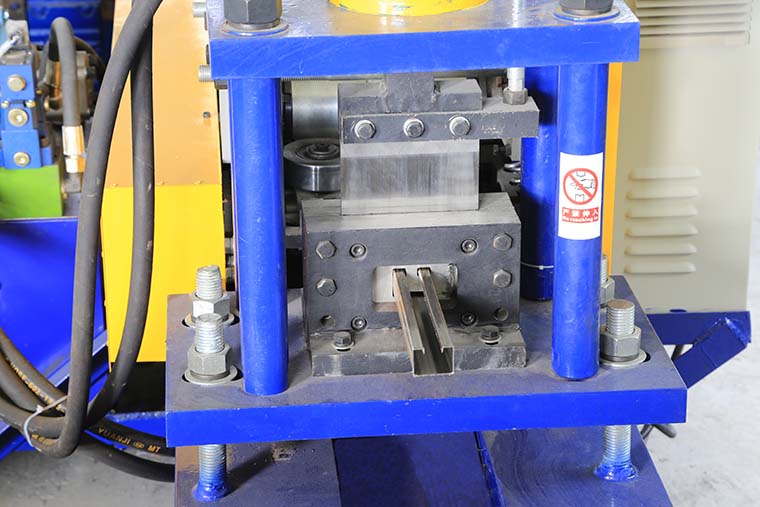

3) C purlin machine post cutter



made by high quality mold steel Cr12MoV,with heat treatment,HRC58-62
Cutter frame made from high quality 30mm steel plate by welding
Pre-cutting & Post-cutting,stop to cut
hydraulic motor:7.5KW, Hydraulic pressure range: 0-16Mpa



C Purlin Roll Forming Machine

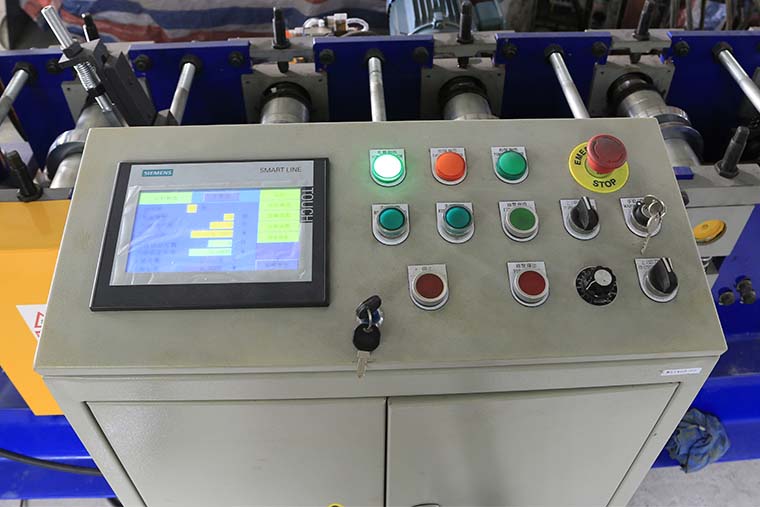

4) PLC Control System


Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,
It Can Finish The Production Automatically.
Combined With: Inverter, Encoder, etc



C Purlin Roll Forming Machine




5) C purlin machine decoiler

        Manual Decoiler: one set

     Un-powered,manually control steel coil inner bore shrinkage and stop

     Max. feeding width: 500mm, coil ID range 508mm±30mm

     Capacity: Max. 3Ton




  With 3 tons hydraulic decoiler for option






6) C purlin exit rack

      Un-powered,one unit






Other detailes of C purlin roll forming machine



Suitable for material with thickness 1.2-2.0mm

Shafts manufactured from GCr15 Steel,Main shaft diameter=φ90mm,precision machined

Motor driving,Gear chain transmission, 20 rollers to form and 7 rollers for straightening and levelling

Main motor=15KW , Frequency speed control. Forming speed approx.18m/min





After-sale service of c purlin roll forming machine



1. The warranty of purlin roll forming machine

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms of trade



1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.


Packing Style


Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
