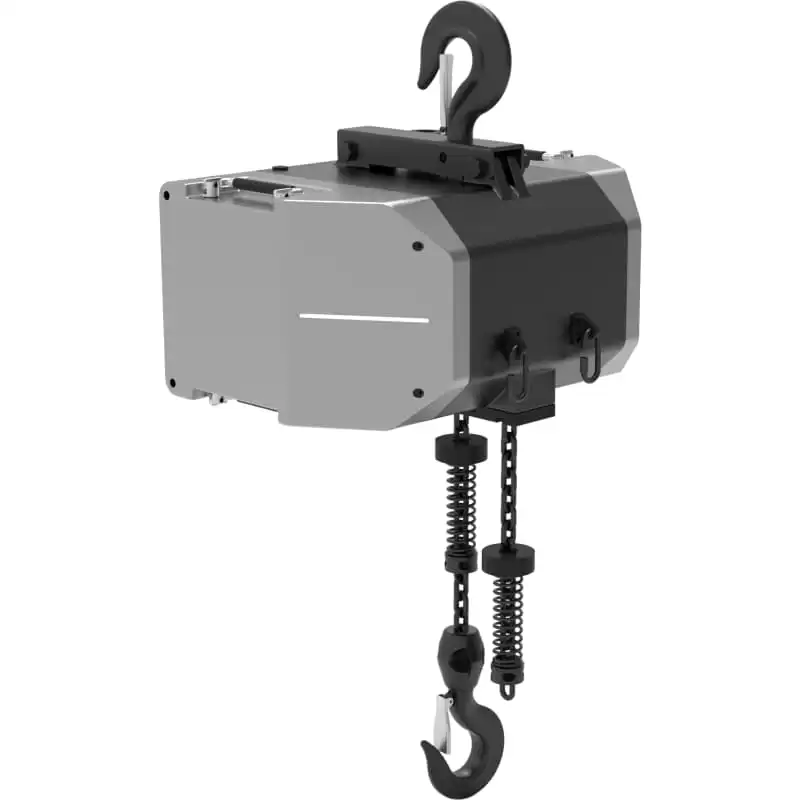

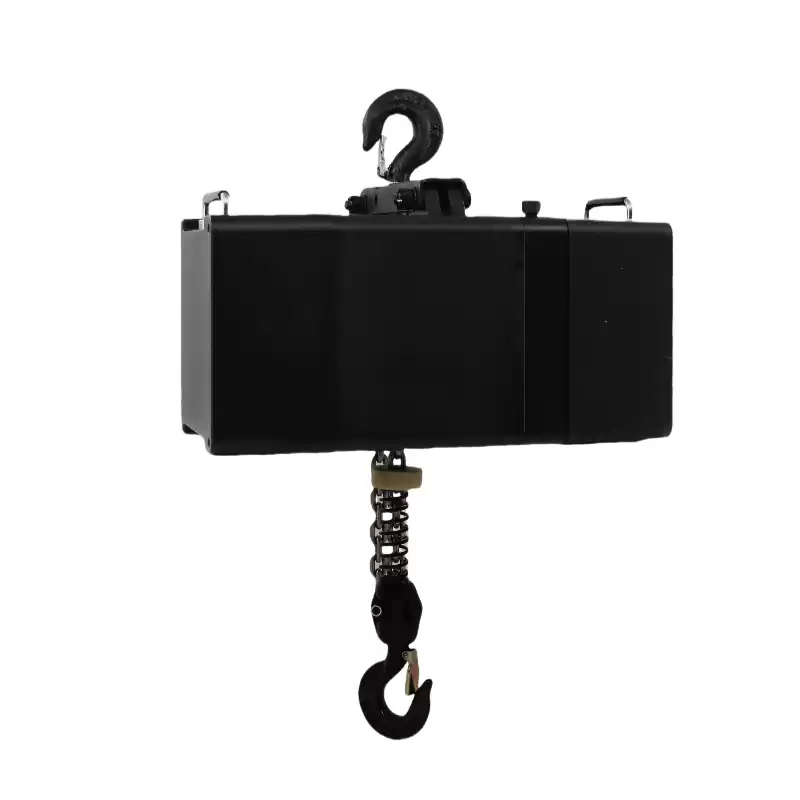

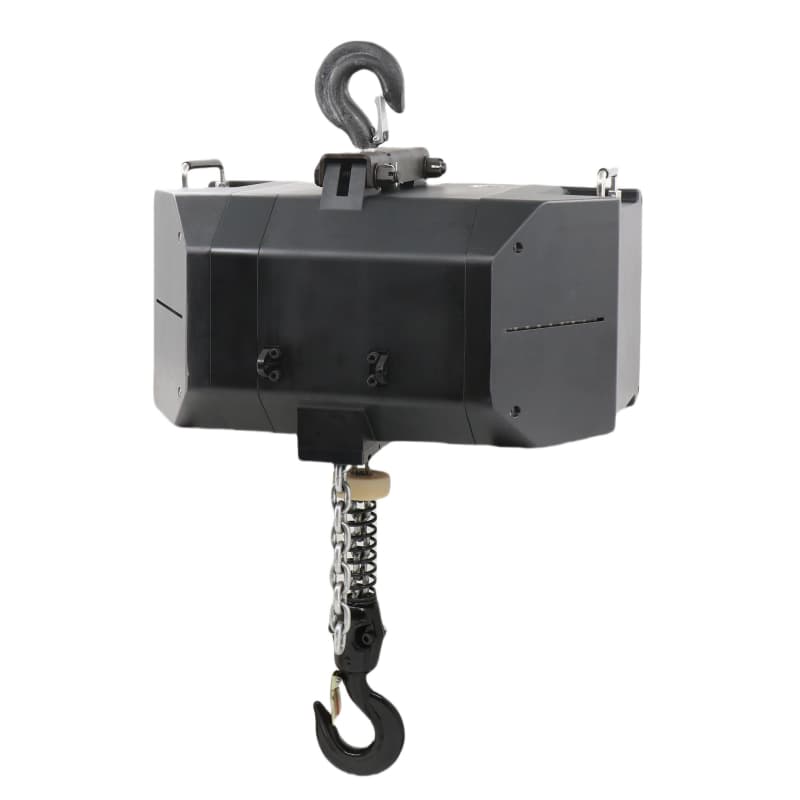

C1 Servo Hoist - Precision Lifting for Stage Dynamic Performances

C1 Stage Servo Hoist, is a adjustable speed stage lifting hoist.
It pass the BGV C1, EN 17206, and conform to SIL3, which provides high safety standard.
It is widely used in live events, eg. concerts, TV center, theatre, showroom, dancing club etc.
It's low noise design, with true 0 speed hover, without break noise, let the performance going smooth.
As a frontend product of stage automation, it is widely used due to its simple installation and operation.
YZ DITEC also developed our own operation platform, with 3D simulation environment, real-time data monitor, let it running be a easy job.

Type	Servo-controlled hoist 500kg
Chain	Japan FEC (25m length)
Voltage	AC 380V 3-phase
Control	BW-Console + Pando 3D simulation

Stage automation hoist:

Precision Lifting for Dynamic Performances

✔ Dual Braking System

✔ Premium Components

✔ Robust Protection

Technical Specifications:

Safety standards	DGUV 17 (BGV C1), EN 17206
Load capacity	500kg
Speed	0.45m/s (Max: 0.5m/s)
Load cell	Integrated inside
Limit switch	4-point limit switches
Overload protection	Electrical overload protection
Motor type	servo motor
Brake System	Dual quiet brakes
Mounting	Normal or reverse hanging
Weight	69kg
Noise Level	68dB
IP Rating	IP65 (dustproof & water-resistant)
Size (L×W×H)	510 × 370 × 240mm
ISO Classification	M5
Control	YZ DITEC Black Warrior Control System
Chain Grade	G80 level, 12x safety factor (EN818-7 compliant)
Power	2.9KW, 8A
Voltage	AC 3 phase 380V

Some tips:

Feature	Servo Hoist (Absolute Servo Motor + Drive)	Induction Hoist (Frequency Converter Drive)
Control Method	Closed-loop (speed, position, torque)	Power frequency adjustment (speed only)
Response Time	Fast (instant torque response) 1 ms	Slow 100 ms
Speed Performance	Excellent at both high and low speeds	Difficult low-speed start, inefficient
Accel/Decel Time	0.2 s	>1 s
Position Feedback	Built-in encoder (no zero reset needed)	Requires external encoder
Positioning Accuracy	0.001 mm	Prone to position drift over time
Control Precision	High displacement & positioning accuracy	Prone to position drift over time
Noise Level	Low	High
Overload Capacity	Excellent (3x rated load typical)	Poor (1.5x rated load typical)
Power Failure Behavior	Maintains position memory	Requires re-homing

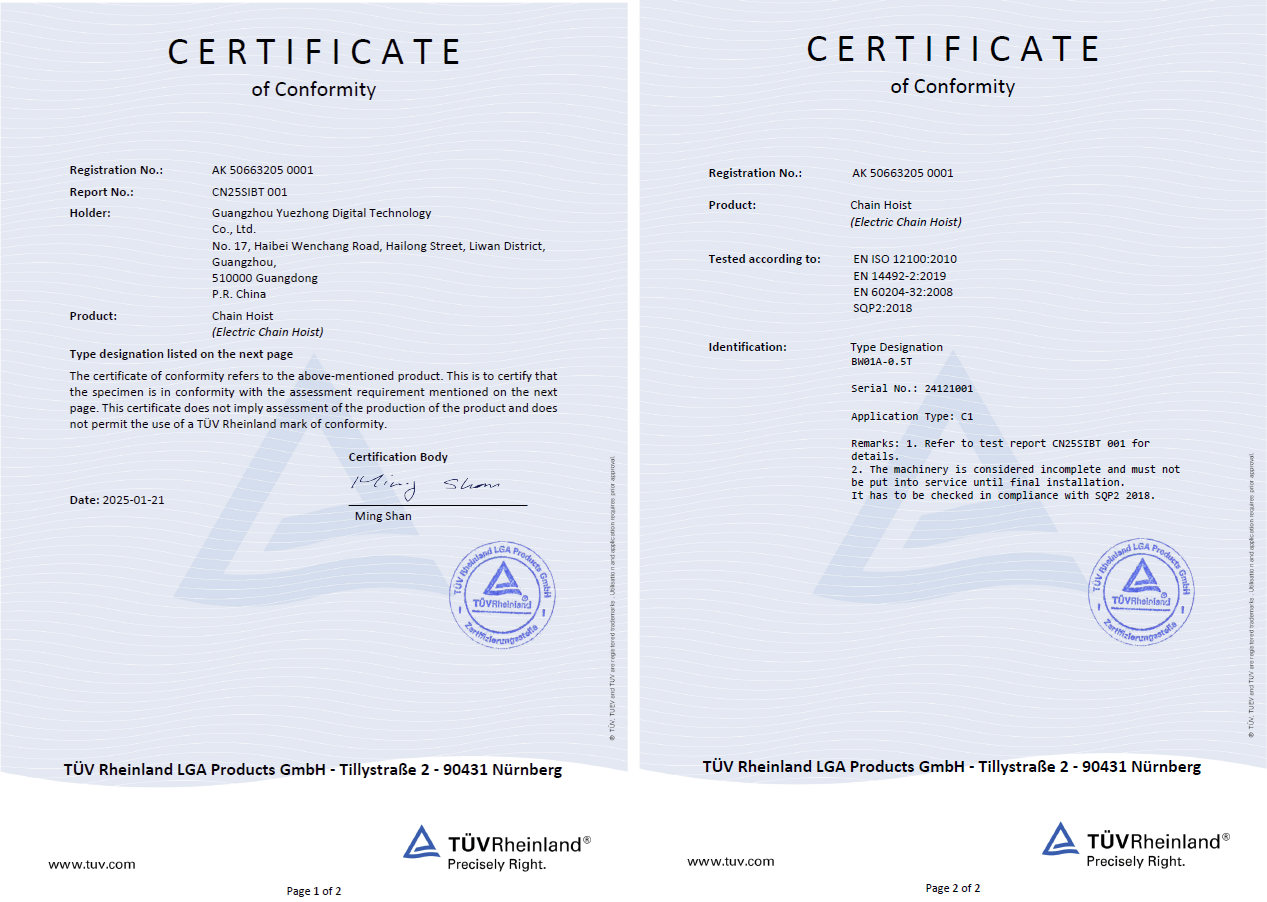

Hoist Certification: BGV C1 and the European standard EN 17206
