Application:

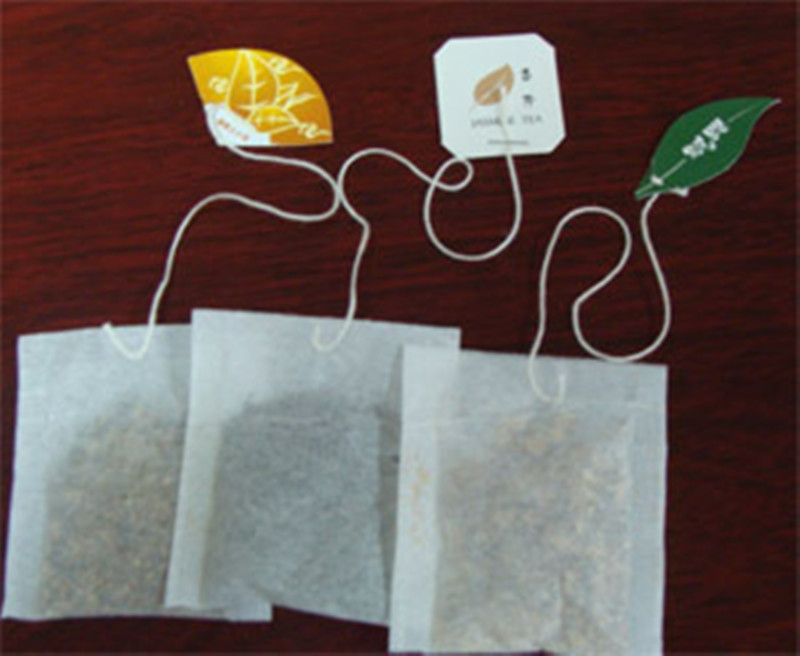

It is suitable for tea bag products packing, such as Chinese local tea leaves, coffee,

Chinese medicinal tea, herbal tea, flower tea and health care tea, etc.

Features:

1. This can automatically complete bag making, filling, measuring, sealing, thread feeding, tag attaching, cutting and counting etc. It would highly improve the working efficiency and reduce labor expenses.

Technical data:

Type: Tea Bag Packing Machine Series

Product model: C12

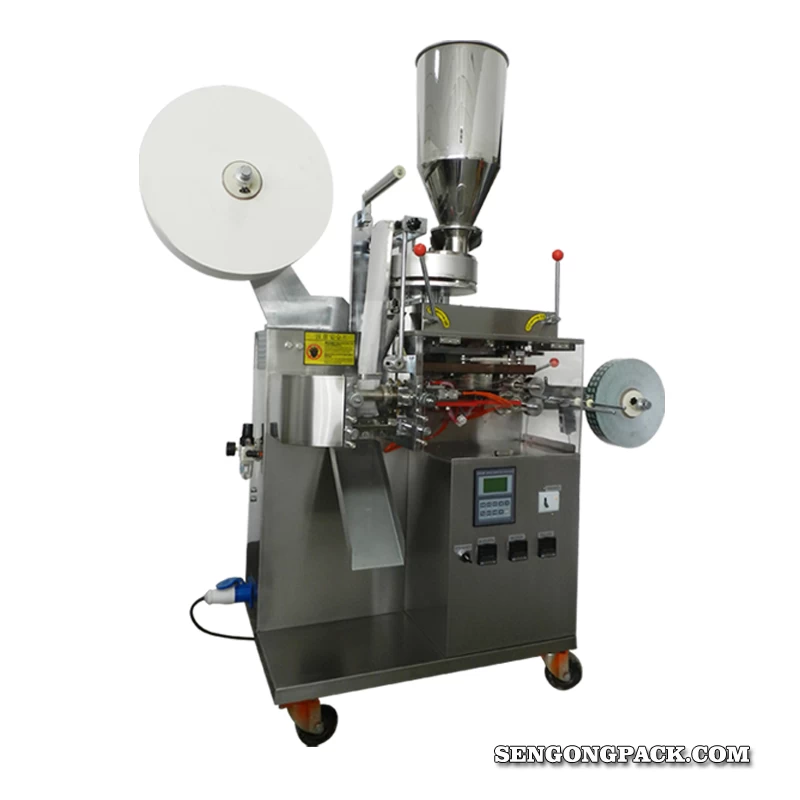

Product name: Automatic Filter Paper Tea Bag Packing Machine

Packing Material: Filter paper, Thread, Tag

Measuring: Measuring cup filler

Filling range: About 1.5-5g or 3-15ml broken tea

Packing speed: 30~60 bags/min

Bag Size: L:50~75mm , W:50~75mm

Tag Size: L: 18-23mm, W: 28mm

Power: 220V, 50HZ, 1.6KW

Dimension : 900*950*1800mm(L*W*H)

Weight: 350KGS
