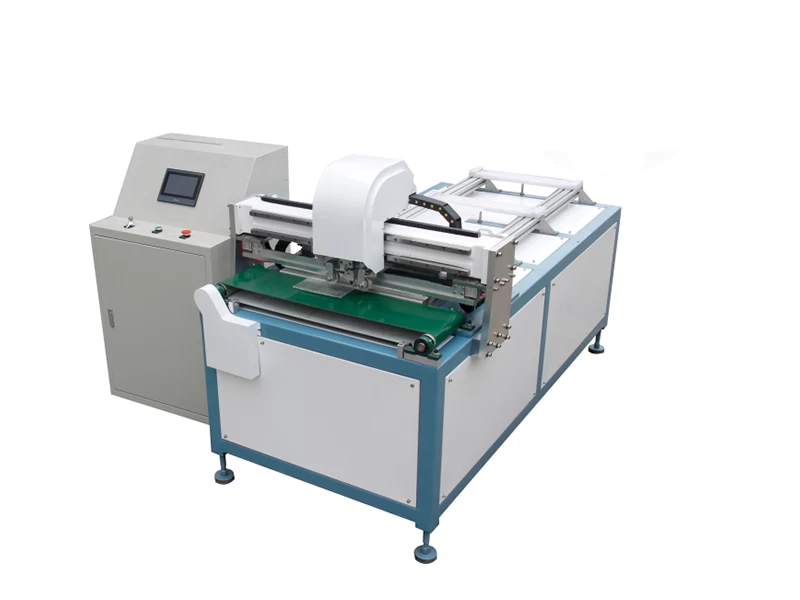

This machine is used for glass tube and glass rod cutting

Operation Process: PLC text control, foolproof operation.

1. Manual tube loading

2. Input the cutting length and quanity, automatic feed

3. Feeding by pneumatic pressure

4. Cutting

5. Breaking

6. Transfer

Dimension:2000*1100*1000mm; weight 650kg；Power 3KW.

Parameter

1. Length：10MM-1500MM（customized）

2. Cutting diameter：Φ1MM-Φ6MM

3. Effect: smooth and smooth cutting surface

Configuration

1. cutting machine: 380 v / 0.85 KW (Japan yaskawa)

Feed motor: 110 type stepping motor (domestic)

Transmission motor: 86 type stepping motor (domestic)

2. guide screw: silver on Taiwan

3. cutting tool bit: wald

4. pneumatic components: xin ling (domestic)

5. Electric components: the Great Wall or CHNT products

6. Cover: stainless steel

7. application: design.

8. Shenzhen PLC

9. proportional valve SMC Japan

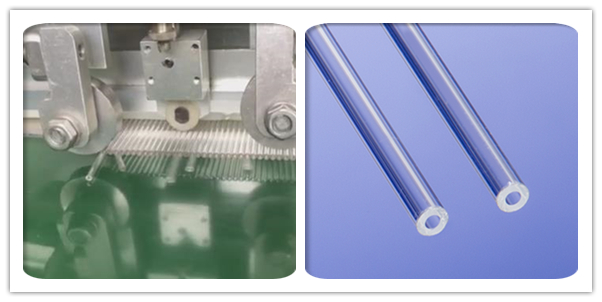

Related Pictures
