Cast iron remote control float valve 100X

Competitive Advantage:

1. 18 Months Guarantee for quality.

2.OEM manufacturer, print client’s LOGO on the valve body.

3.Offer Operation Manual & Install Introduction for safety use.

4.Offer manufacturer’s reasonable price to win the market for both.

5.Accept any the third party inspection.

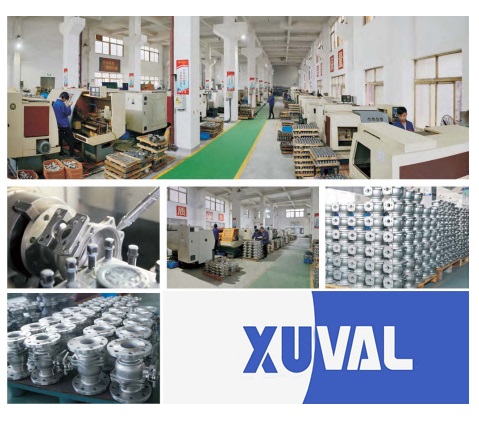

6.As a factory, every production process can be controlled during manufacture.

7.Offer inspection & testing reports for raw materials, production process, wall thickness, face to face dimension, pressure test, welding test, painting test, etc.

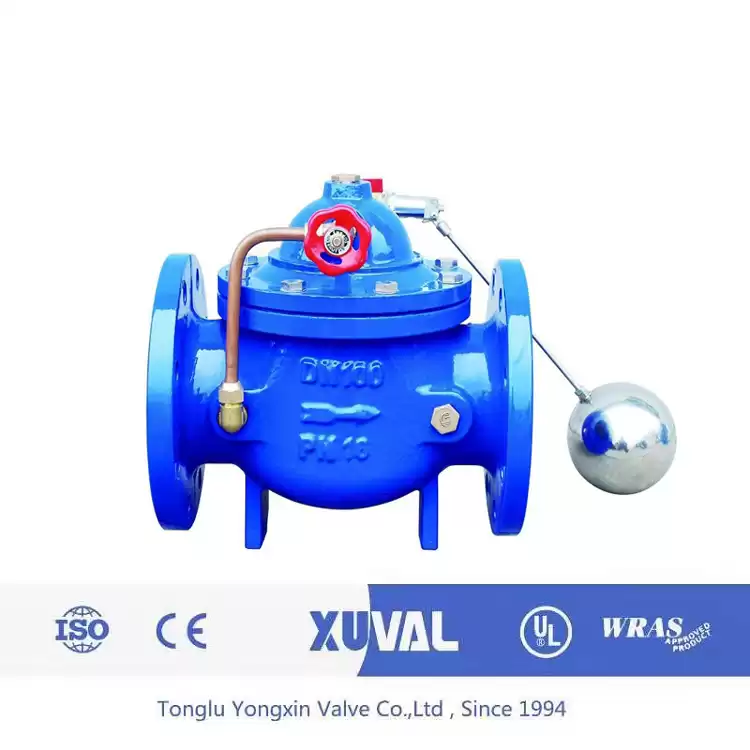

Cast iron remote control float valve 100X


Control float valve introduction:

100X diaphragm type remote control float valve has many kinds of function and is installed at the inlet of pool or water tower.when the water-level reach the setting level,the main valve closes by the float pilot valves's control and stop supplyling wate.when the water-level comes down,the main valve opens by the float pilot valves's control and supply water to the pool.100X remote control float valve can control thr water-level of pool precisely and is not interrupted by the pressure and can be installed freely according to the height of pool and using space.It is suitable for pipeling DN450mm or less For DN500mm or more,piston type valve is advised to be chosen.


Specification
Work Pressure
1.0Mpa
1.6Mpa
2.5Mpa
Shell Test
1.5Mpa 2.4Mpa 3.75Mpa
Seal Test 1.1Mpa 1.76Mpa 2.75Mpa
Temperature 0~180℃
Medium Water


Category: Control Valve


Cast iron ductile iron control valve


Main Demisions
Norminal  diameter
L
A
A1
H
H1
F
50
230 280 139 265 210 170
65
250 284 141 310 215 180
80
260 292 145 350 245 210
100 320 330 164 460 305 275
125

370

340 169 520 365 310
150 410 350 174 570 415 355
200
480
392 195 695 510 460
250
580 442 220 780 560 500
300 690 472 235 905 658 580
400 860 582 290 1080 735 715
500 980 682 350 1135 665 830
600 1100 762 390 1270 725 920
700 1650 832 420 1460 865 980
800 1850 932 470 1640 975 1050



Packing & Delivery :

Packing Details  : All control float valve by seaworthy plywood case and packed strongly by packing belt as below

Delivery Details : Generally it is 5-10 days if the goods are in stock. or 15-30 days if the goods are OEM or not enough subject to the order quantity. But anyway, normally, we are able to make sure the delivery will not exceed 45 days.
