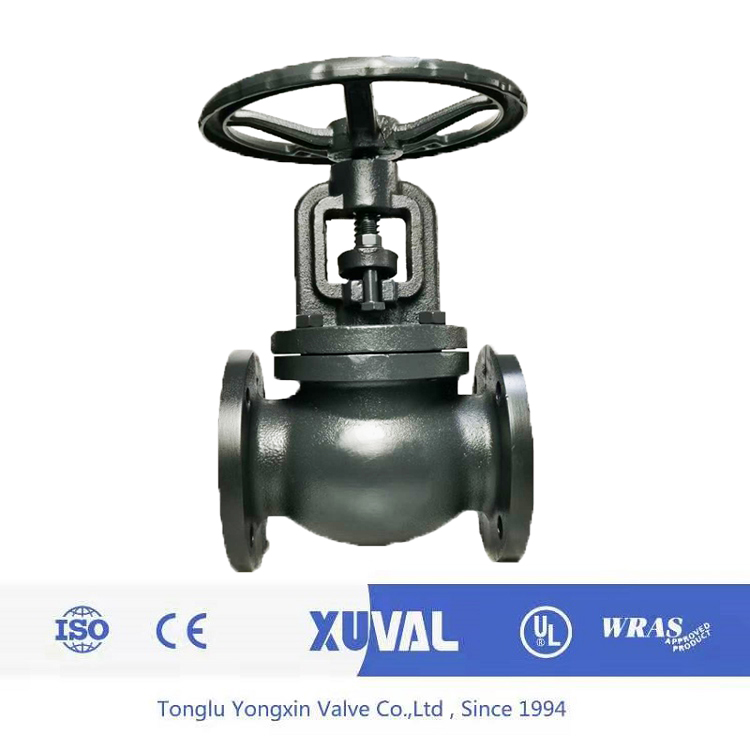

DIN S pattern Cast iron globe valve

1.The Bellow sealed globe check valve is a valve with two function ,which is globe and check valve. Connecting this valve’s stem and disc is designed to open structure . The stem can withstand the movement of the valve disc when it close valve, which can combine the disc sealing and seat sealing surface to achieve the close status. In the meanwhile, the valve can break off the media in pipeline .when opening the valve, stem and disc is disengaged. It plays the role of a check valve to prevent the media back flow. 2.This valve has a dual function ,it can cost savings and higher security. 3.Especially suitable for the installation location restrictions for special occasions.

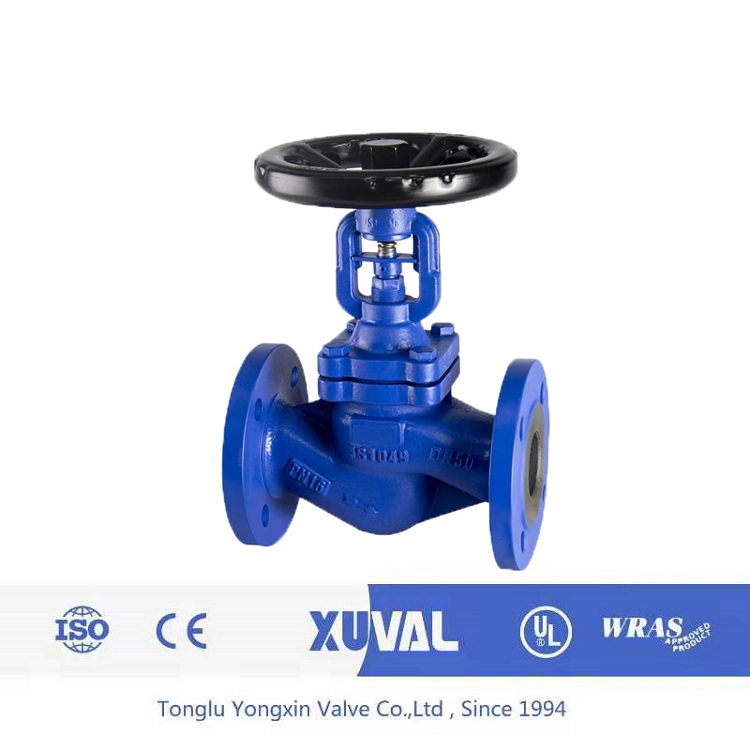

Ductile iron bellow seat globe valve

Advantage 1.Bellow seal element. The key part of bellow sealed globe valves is metal bellow. It is the connection between cover and stem with automatic roll welding. The metal bellow can keep the stem part no leakage. 2.Benefit from the con and streamline shape design, the disc has a reliable seal and longer service life. 3.Double seal design(bellows+packing). Bellow and packing can protect against leakage and provide a excellent seal. 4.Grease nipple. It can direct lubricate the stem, nut and sleeve. 5.Ergonomic hand wheel. It provide longer service life and easier operation.

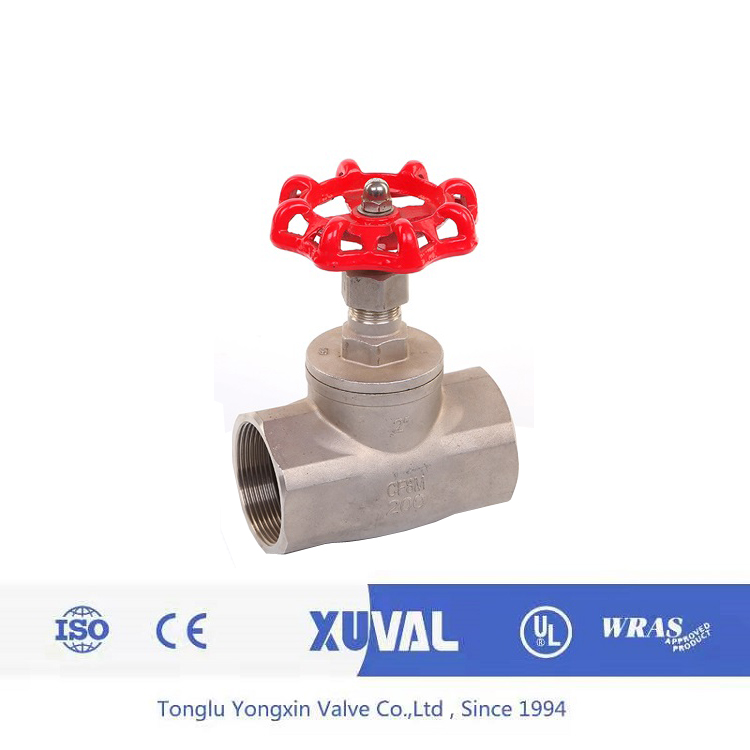

Thread end Stainless steel globe valve

Competitive Advantage: 1. 18 Months Guarantee for quality. 2.OEM manufacturer, print client’s LOGO on the valve body. 3.Offer Operation Manual & Install Introduction for safety use. 4.Offer manufacturer’s reasonable price to win the market for both. 5.Accept any the third party inspection. 6.As a factory, every production process can be controlled during manufacture. 7.Offer inspection & testing reports for raw materials, production process, wall thickness, face to face dimension, pressure test, welding test, painting test, etc.

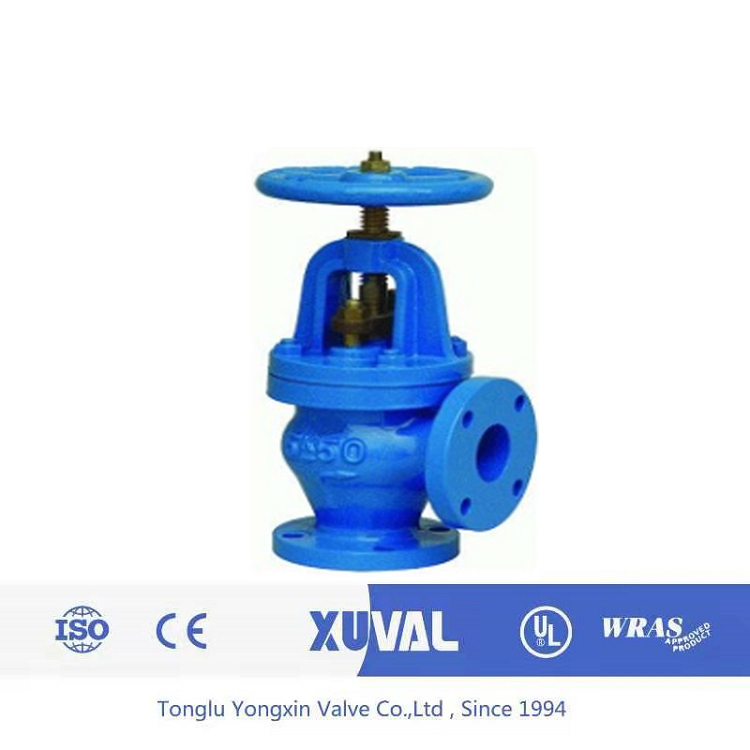

Cast iron angle globe valve 10k

Competitive Advantage: 1. 18 Months Guarantee for quality. 2.OEM manufacturer, print client’s LOGO on the valve body. 3.Offer Operation Manual & Install Introduction for safety use. 4.Offer manufacturer’s reasonable price to win the market for both. 5.Accept any the third party inspection. 6.As a factory, every production process can be controlled during manufacture. 7.Offer inspection & testing reports for raw materials, production process, wall thickness, face to face dimension, pressure test, welding test, painting test, etc.

DIN PN 16 Cast Iron angle globe valve

DIN PN 16 Cast Iron angle globe valve, For water,oil...

ANSI 150LB Cast Iron Globe Valve

ANSI 150LB Globe valve also known as the door valve, belongs to the forced sealing valve, so when the valve is closed, must apply pressure to the disc, in order to force the sealing surface leakage.When the medium under the disc into the valve, the operating force to overcome the resistance, is the friction of the valve stem and packing and by the pressure of the medium produced by the thrust, the force to close the valve is greater than the force to open the valve, so the diameter of the valve stem to be large, otherwise the valve stem bending fault will occur.

JIS 10K Cast Iron Flange Globe Valve

JIS 10K Globe valve also known as the door valve, belongs to the forced sealing valve, so when the valve is closed, must apply pressure to the disc, in order to force the sealing surface leakage.When the medium under the disc into the valve, the operating force to overcome the resistance, is the friction of the valve stem and packing and by the pressure of the medium produced by the thrust, the force to close the valve is greater than the force to open the valve, so the diameter of the valve stem to be large, otherwise the valve stem bending fault will occur.

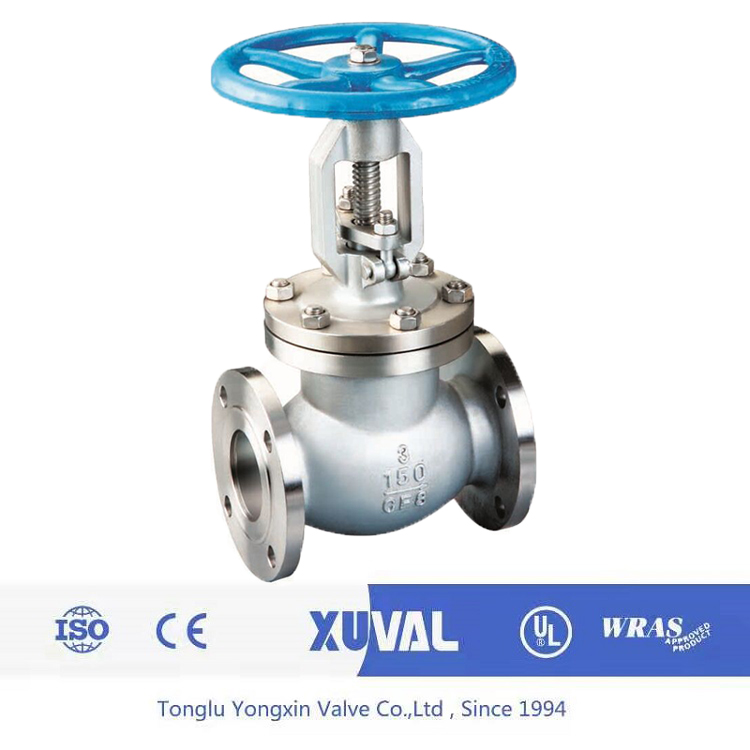

ANSI Class150 Class300 Stainless steel Flange globe valve

The opening and closing parts of the stainless steel flange globe valve are plug shaped disc, sealing surface is flat or conical surface, disc along the center line of the seat for linear motion.Stem movement, (common name: dark stem), also can be up and down rotary stem type, (common name: rising stem) globe valve refers to the closing member (disc) along the center line of the seat of the valve.

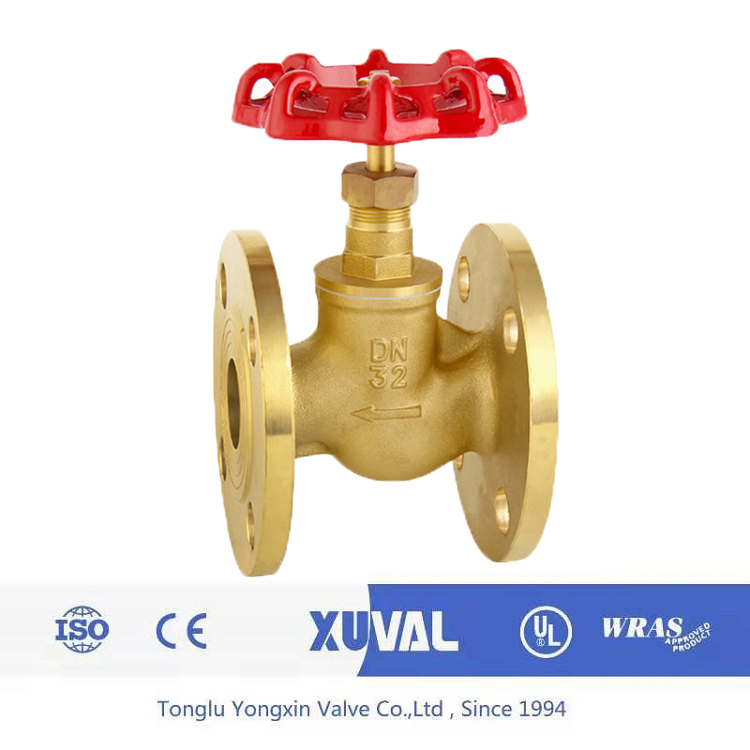

PN16 Brass flange globe valve

Brass globe valves are part of the globe valve family.Its main material is brass.

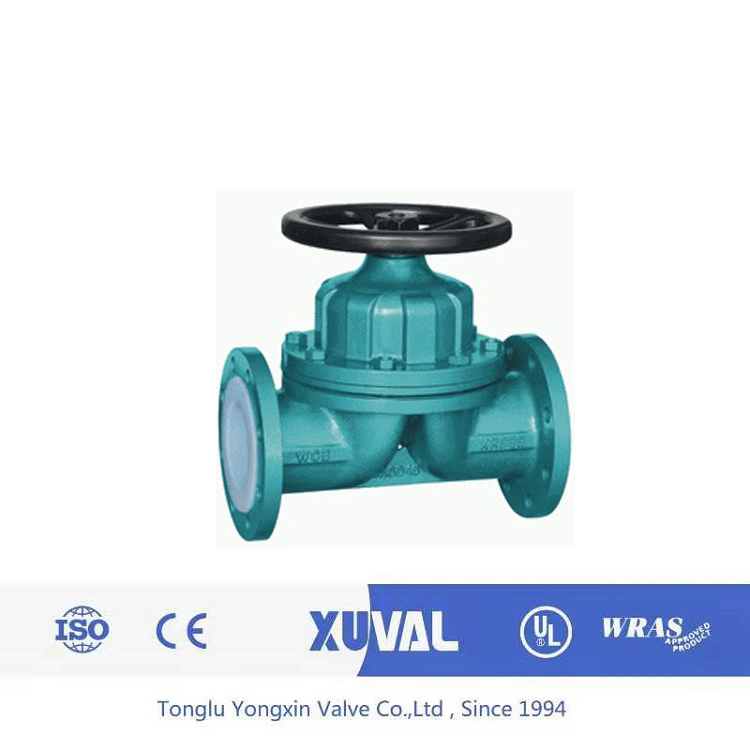

G41F46/J Fluorine lining diaphragm valve

Fluorine lined diaphragm valve is a special form of cut-off valve, appeared in the 1920s.Its opening and closing parts is a diaphragm made of soft material, the valve body cavity and valve cover cavity and drive parts separated, so called diaphragm valve.

Bronze wire clasp globe valve

Bronze globe valves are valves with a shutoff valve (disc) moving along the center line of the seat.Depending on this movement of the disc, the variation of the seat orifice is proportional to the disc travel.Due to the relatively short stem opening or closing stroke of this type of valve, and the very reliable cutting function, and the seat port changes in a direct proportion to the stroke of the disc, it is very suitable for flow regulation.Therefore, this type of valve is ideal for cutting or regulating and throttling.
