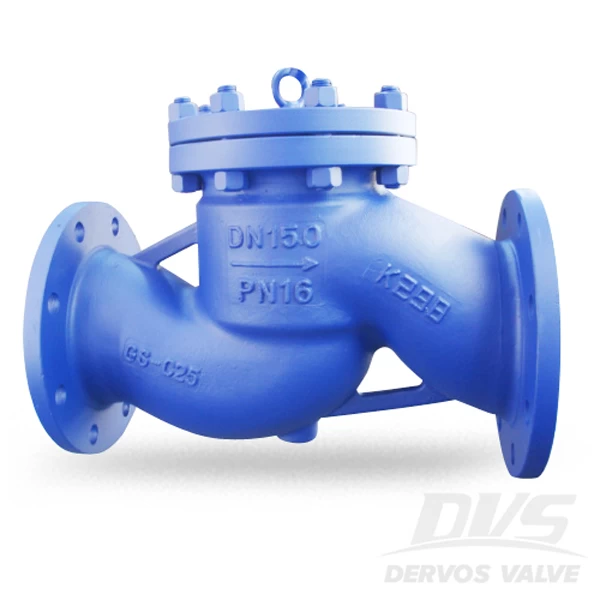

The cast steel lift non return check valve is designed with piston type disc, bolted bonnet, and PN16 RF flange. The spring loaded check valve conforms to DIN 3356.
Quick Detail
|
Type
|
Check
Valve ( Non-return Valve)
|
|
Nominal Diameter
|
DN
150
|
|
NominalPressure
|
PN 16
|
|
Construction
|
Lift
Type / Piston Type, Bolted Bonnet
|
|
Connection
|
Flanged
Connection
|
|
Design & Manufacture
|
DIN
3356
|
|
End to End
|
EN
558
|
|
Connection
|
EN
1092
|
|
Test &
Inspection
|
EN
12266
|
|
Body Material
|
Carbon
Steel GS C25
|
|
Media
|
W.O.G.
|
Product Range
Body material: CS, SS, Alloy Steel, CI, Bronze, Brass
Size Range: 2”~12” (DN50~DN300)
End Type: Butt Weld, Socket Weld, Flanged, Screwed
Pressure Range: 150lbs~2500lbs (PN16~PN420)
Temperature Range: -46℃~ +425℃
Related Knowledge
What is a piston check valve?
Usually, we have swing type check valve and lift type check valve. A piston check valve and ball check valve both belong to lift type check valve.
In a lot of cases, a piston check valve use spring to retain the disc in closed position. The structure of a piston check valve is very similar to the globe valve just without manual operation.
Due to its piston type disc and superior leak tight characteristic, the piston check valves are suitable for small size and high pressure conditions.
