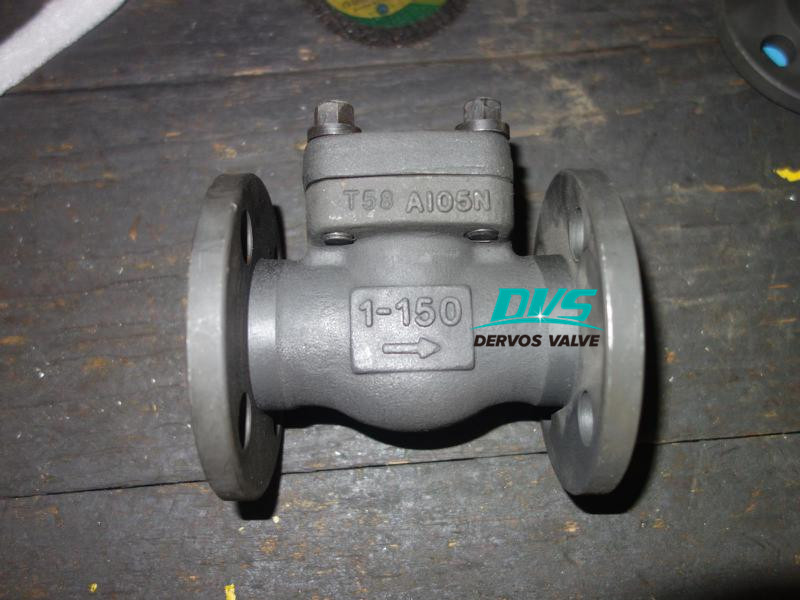

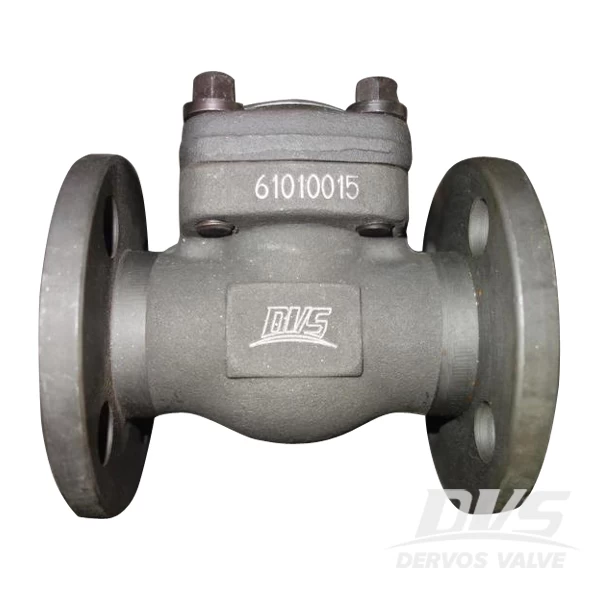

The forged steel lift check valve is designed with class 150 pressure and 1 inch nominal size according to standard API 602. We also call it as piston check valve.
Quick Detail
|
Type
|
Check
Valve
|
|
Size
|
1''
|
|
DesignPressure
|
150LB
|
|
Construction
|
Lift
Type, Piston Type
|
|
Connection
|
RF
Flange
|
|
Design & Manufacture
|
API
602
|
|
End to End
|
ASME
B16.10
|
|
Connection
|
ASME
B16.5
|
|
Pressure &
Temp
|
ASME
B16.34
|
|
Test &
Inspection
|
API
598
|
|
Body Material
|
ASTM
A105N
|
|
Trim Material
|
Trim
5
|
|
Temp Range
|
-29℃~+425℃
|
|
Media
|
W.O.G.
|

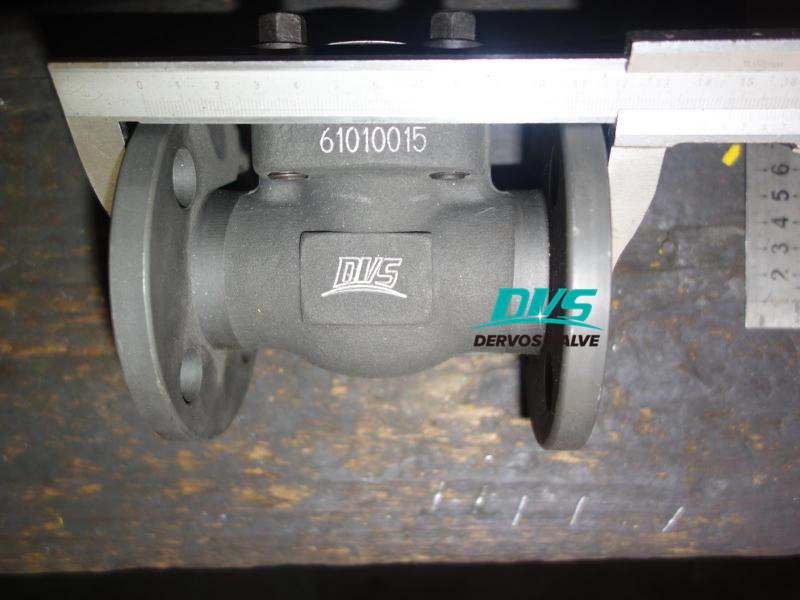

Dimension Checking

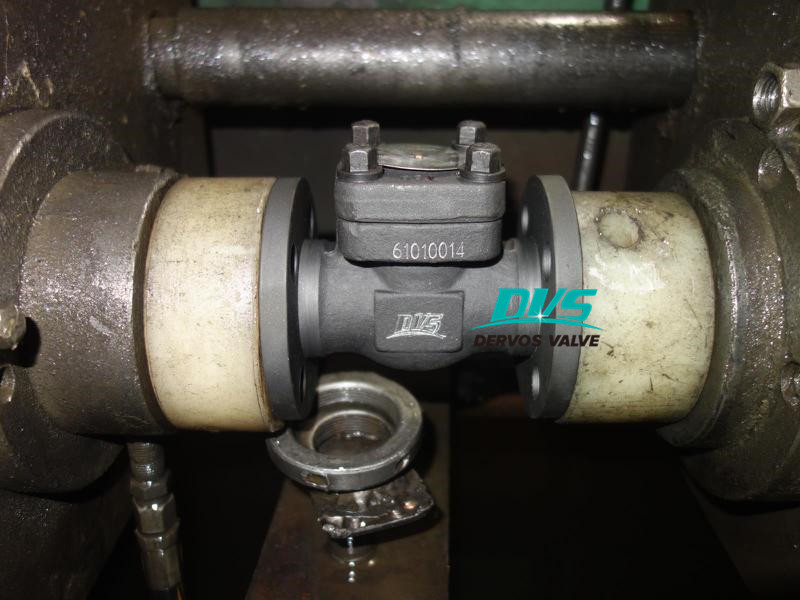

Pressure Tesing

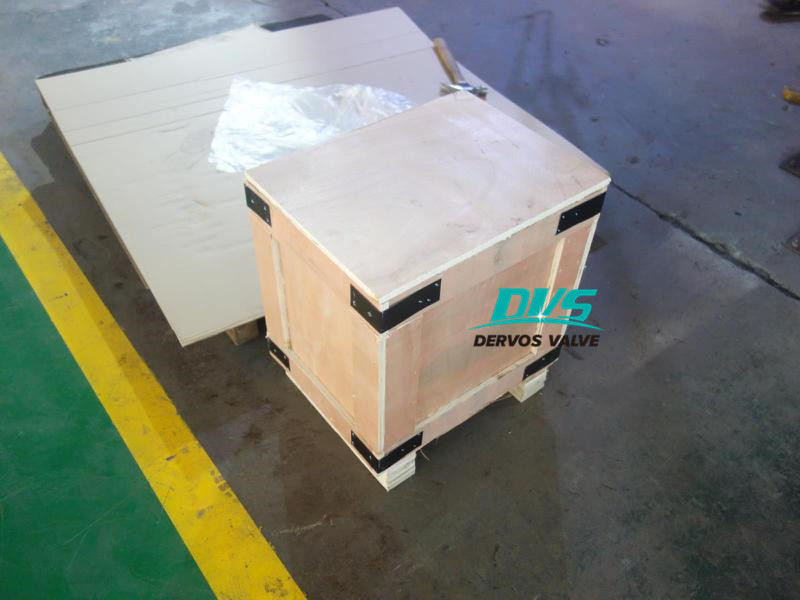

Packing
