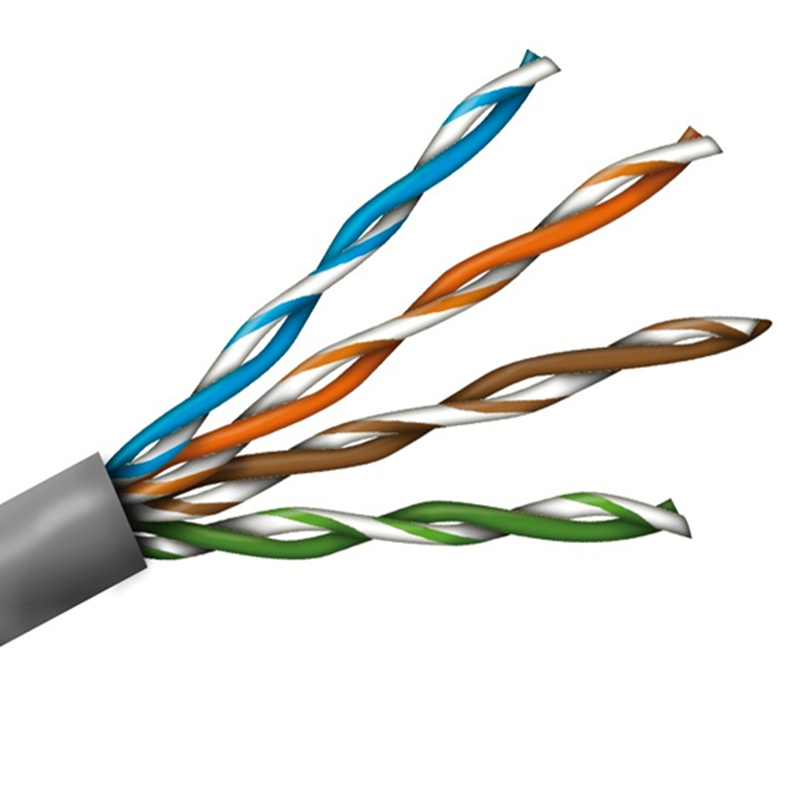

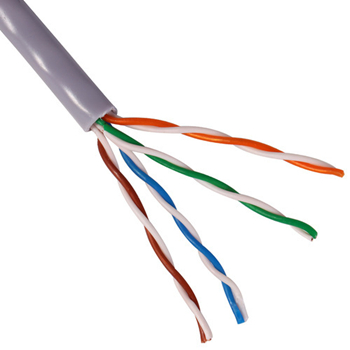

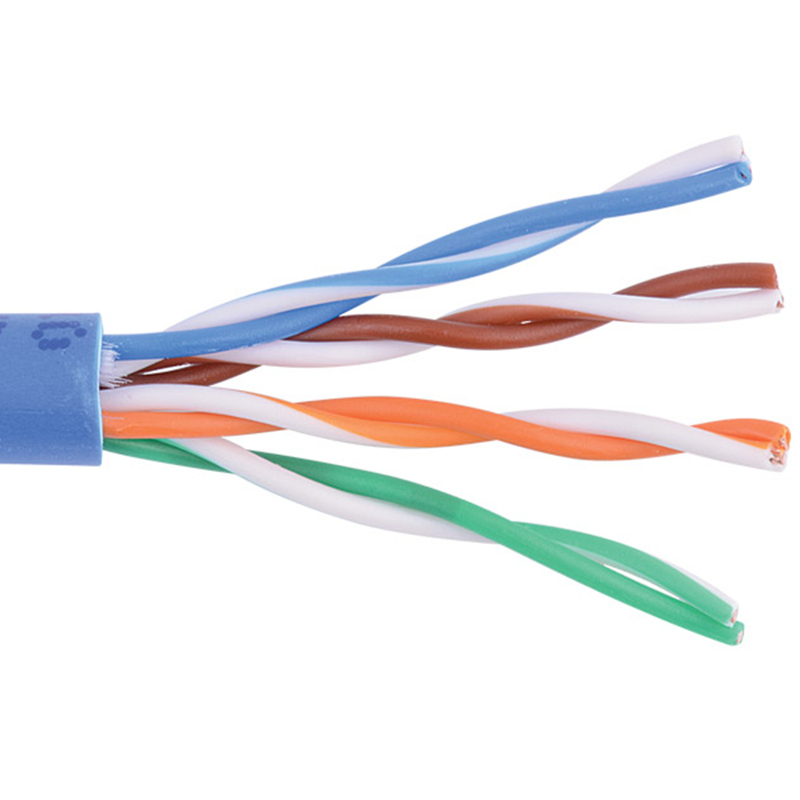

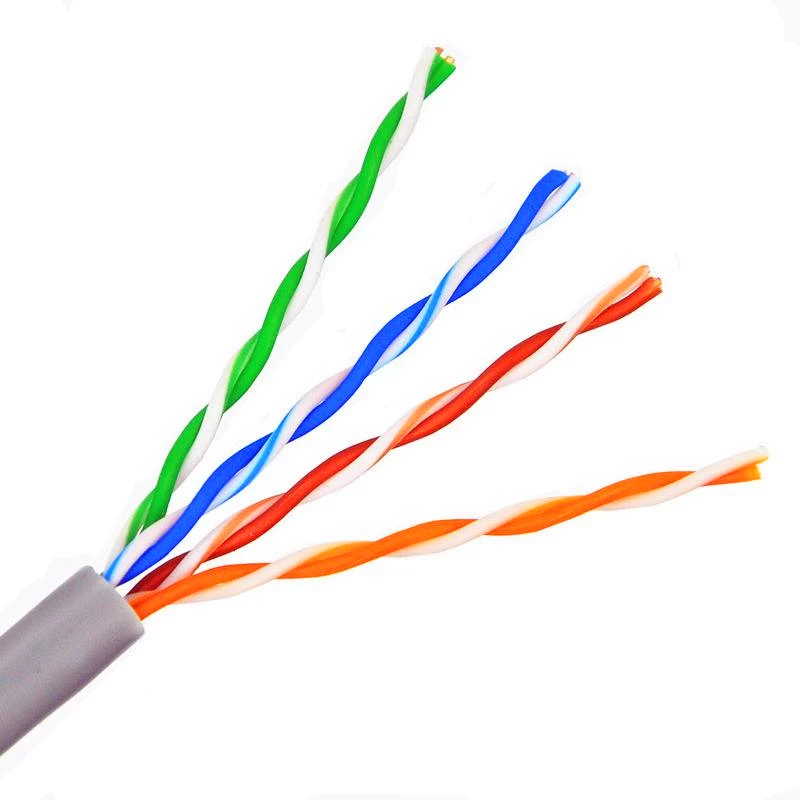

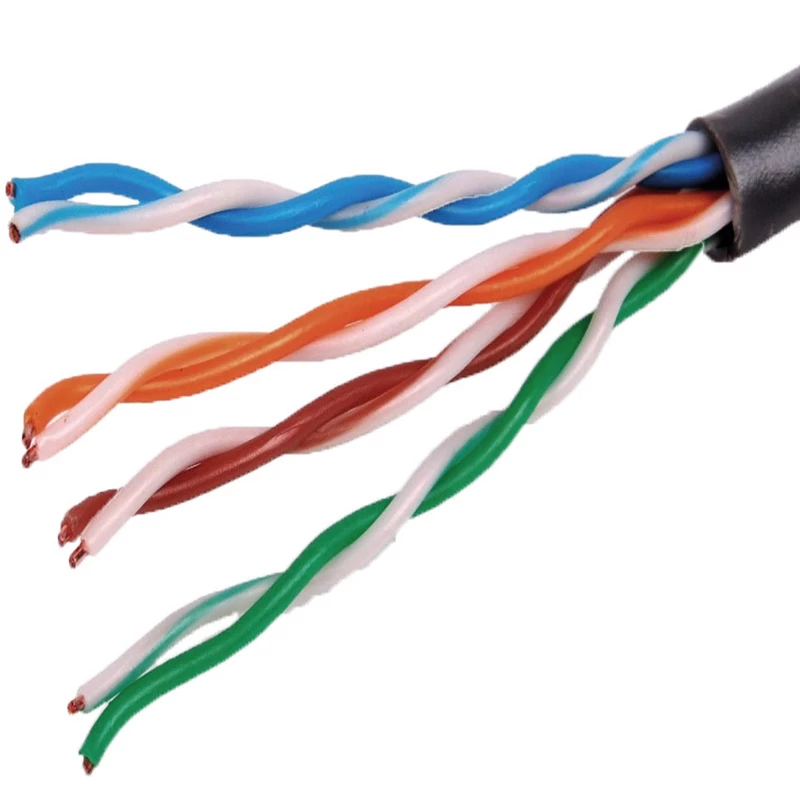

Cat 5e UTP Unshielded LAN Cable

Cat 5e UTP Unshielded LAN Cable, bare copper or CCA conductor, HDPE insulated, unshield, PVC or LSZH sheath, meet to

ISO/IEC 11801, ANSI/TIA/EIA 568B or YD/T 1019.



Cat 5e UTP Unshielded LAN Cable


PRODUCTS KEYWORDS

Cat 5e utp lan cable, utp cat 5e network cable, cat 5e 24AWG lan cable, cat 5e unshielded cable, Category 5E data cable, TIA/ EIA 568B cat 5e lan cable, ISO/IEC 11801 cat 5e utp cable.


APPLICATION CHARACTERISTICS

Cat 5e UTP unshielded LAN cable, bare copper conductor, HDPE insulated, PVC or LSZH sheath, meet to ISO/IEC 11801, ANSI/TIA/EIA 568B or YD/T 1019. Cat 5e UTP un-shield LAN Cable, is used by horizontal subsystem in the LAN premises distribution system, and is used to the cabling connection between the communication outlet terminal of the system working area and the distributing frame of cross connection closet. The cable is laid in cable gland cable conduit and ceiling or floor inter layer, to make the cable support the application of voice, data, text, image, video, etc.



PRODUCTS STRUCTURE

---Conductor Material

    Plain annealed copper wire, solid class 1, 1/0.50 mm, 24 AWG (4 pairs)

---Insulation Material

    HDPE (high density polyethylene), thickness: 0.88 mm

---Insulation Color

    Blue, blue/white; orange, orange/white; green, green/white; brown, brown/white

---Shielded Material

    Un-shielded

---Screened Material

    Non-screened

---Sheath Material

    PVC (Polyvinyl Chloride), thickness: 0.6 mm

---Sheath Color

    Black, blue, grey, white, or others

---Rip Cord Material

    Nylon

---Core Number

    4 pairs (8 cores)

---Cable’s Out Diameter

    5.2 mm

---Refer Net Weight

    10 kg/305m carton

---Minimum Bending Radius

    4 x cable’s out diameter

---Flame Retardant Class

    CM, CMR (IEC 60331)

---Operating Voltage

    72V

---Operating Temperature

    -0℃~+70℃

---Characteristics Impedance

    100 ±15Ω

---Max. DC Conductor Resistance in 20

    ≤ 110 Ω/km

---Mutual Capacitance

    < 0.56 nF/km

---Resistance Unbalance

    5% maximal

---Capacitance Unbalance

    33 pF/km

---Delay Skew

    < 45 nS

---Product Frequency

    100MHz

---Dielectric Strength

    1.0kV DC or 750V AC in 1 minute

---Production Standard

    ISO/IEC 11801-2012, ANSI/TIA/EIA 568B, YD/T 1019-2013, IEC 61156-5-2012, AS/NZS 3080, UL 444

---Product MOQ

    100 cartons (305 meters per carton)

---Production Delivery

    Within 7-10 working days as soon as we received the deposit.

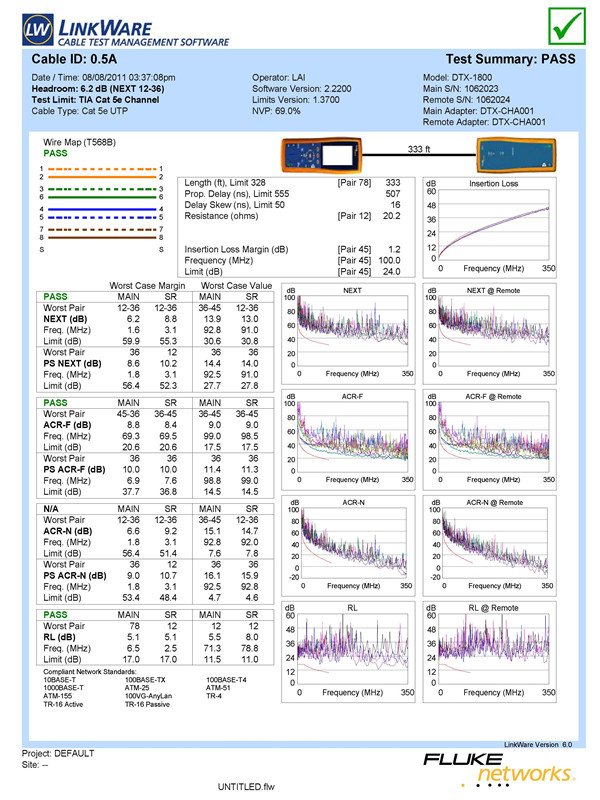

PRODUCTS TESTING

Frequency

(MHz)

Attenuation

in 20℃

(dB/100m)

Next

(dB)

PS-Next

(dB)

RL

(dB)

Elfext

(dB)

PS-Elfext

(dB)

Phase

Delay

(nS)

1

2.0

65.3

62.3

20.0

63.8

60.8

570

4

4.1

56.3

53.3

23.0

51.8

48.8

552

8

5.8

51.8

48.8

24.5

45.7

42.7

546.73

10

6.5

50.3

47.3

25.0

43.8

40.8

545.38

16

8.2

47.2

44.4

25.0

39.7

36.7

543.0

20

9.3

45.8

42.8

25.0

37.8

34.8

542.05

25

10.4

44.3

41.3

24.3

36.8

32.8

541.2

31.25

11.7

42.9

39.9

23.6

33.9

30.9

540.44

62.5

17.0

38.4

35.4

21.5

27.9

24.9

538.55

100

22.0

35.3

32.3

20.1

23.8

20.8

537.6


REMARK

---The information contained within this datasheet is for guidance only and is subject to change without notice or liability. All the information is provided in good faith and is believed to be correct at the time of publication.

---When selecting cable accessories, please note that actual cable dimensions may vary due to manufacturing tolerances.

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Hante Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Hante Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
