Caterpillar spare parts 093-5133 0935133 for E317

CATERPILLAR travel bearing 093-5133 0935133

093-5133 BEARING Caterpillar parts fit: E311, E311B, E312, E315, E317.




CATERPILLAR excavator travel bearing 093-5133

P/N 093-5133
Material:
GCR15
i/d mm
O/D
mm
H mm
Brand: ZHZB
Precision
P0 , P6 , P5
Structure:
Radial needle roller bearings

Product features:
1. Special bearing for excavator travel gearbox
2. It can bear the load from both axial and radial at the same time
3. High-strength high-quality steel
4. Smooth rotation and low noise
5. Compared with other companies' final drive bearings, the service life is increased by 50%
Our advantage:

100% factory quality inspection;
Minimum order quantity: 1;
Faster delivery efficiency;
Higher cost performance;
Have a mature production line so that we can customize according to the samples or drawings provided by customers;
Professional manufacturer of final drive bearings for excavators. Have many years of manufacturing experience

Production Process






Product Photos

093-5133CATERPILLAR 093-5133Bearing 093-5133

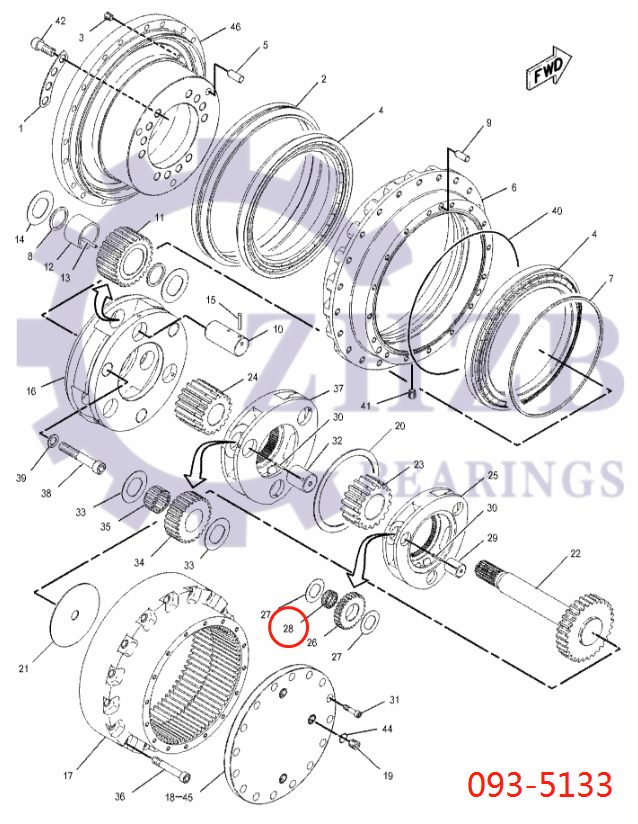

Any other parts for the travel gearbox system you need , pls search from below picture and form list then mark to me , we will quote to you.

CATERPILLAR parts

Pos.

Part No

Qty

Parts name

Comments

1.

102-6533

[3]

PLATE



2.

096-8039

[1]

SEAL



3.

096-5971

[1]

PLUG



4.

102-6525

[2]

BEARING



5.

102-6532

[3]

PIN



6.

102-6526

[1]

HOUSING



7.

102-6544

[1]

SHIM PACK (INCLUDES 6 SHIMS)



8.

102-6517

[6]

COLLAR



9.

102-6536

[3]

PIN



10.

102-6515

[3]

SHAFT



11.

102-6513

[3]

GEAR-PLANETARY



12.

102-6516

[3]

BUSHING



13.

102-6514

[51]

ROLLER



14.

102-6518

[6]

WASHER



15.

102-6519

[3]

PIN



16.

102-6512

[1]

CARRIER



17.

102-6534

[1]

GEAR-RING



18.

114-1336

[1]

COVER



19.

114-1338

[3]

PLUG



20.

102-6521

[1]

PLATE



21.

102-6545

[1]

KIT-PLATE



22.

102-6520

[1]

GEAR-SUN



23.

102-6522

[1]

GEAR-SUN



24.

102-6523

[1]

GEAR-SUN



25.

102-6502

[1]

CARRIER



26.

102-6503

[3]

GEAR-PLANETARY



27.

093-4391

[6]

WASHER



28.

093-5133

[3]

BEARING



29.

102-6504

[3]

SHAFT



30.

095-7945

[6]

PIN-SPRING



31.

6V-3938 M

[16]

BOLT (M10X1.5X20-MM)



32.

102-6509

[3]

SHAFT



33.

102-6510

[6]

WASHER



34.

102-6507

[3]

GEAR-PLANETARY



35.

102-6508

[3]

BEARING



36.

8C-8729 M

[16]

BOLT-SOCKET HEAD (M12X1.75X80-MM)



37.

102-6506

[1]

CARRIER



38.

3E-8008 M

[3]

BOLT-SOCKET HEAD (M16X2X90-MM)



39.

095-0819

[3]

LOCKWASHER



40.

102-6535

[1]

SEAL



41.

095-0966

[1]

PLUG



42.

096-7265 M

[12]

BOLT



44.

095-1592

[3]

SEAL-O-RING



45.

1U-8846 B



SEALANT-GASKET



46.

102-6524

[1]

HOUSING
